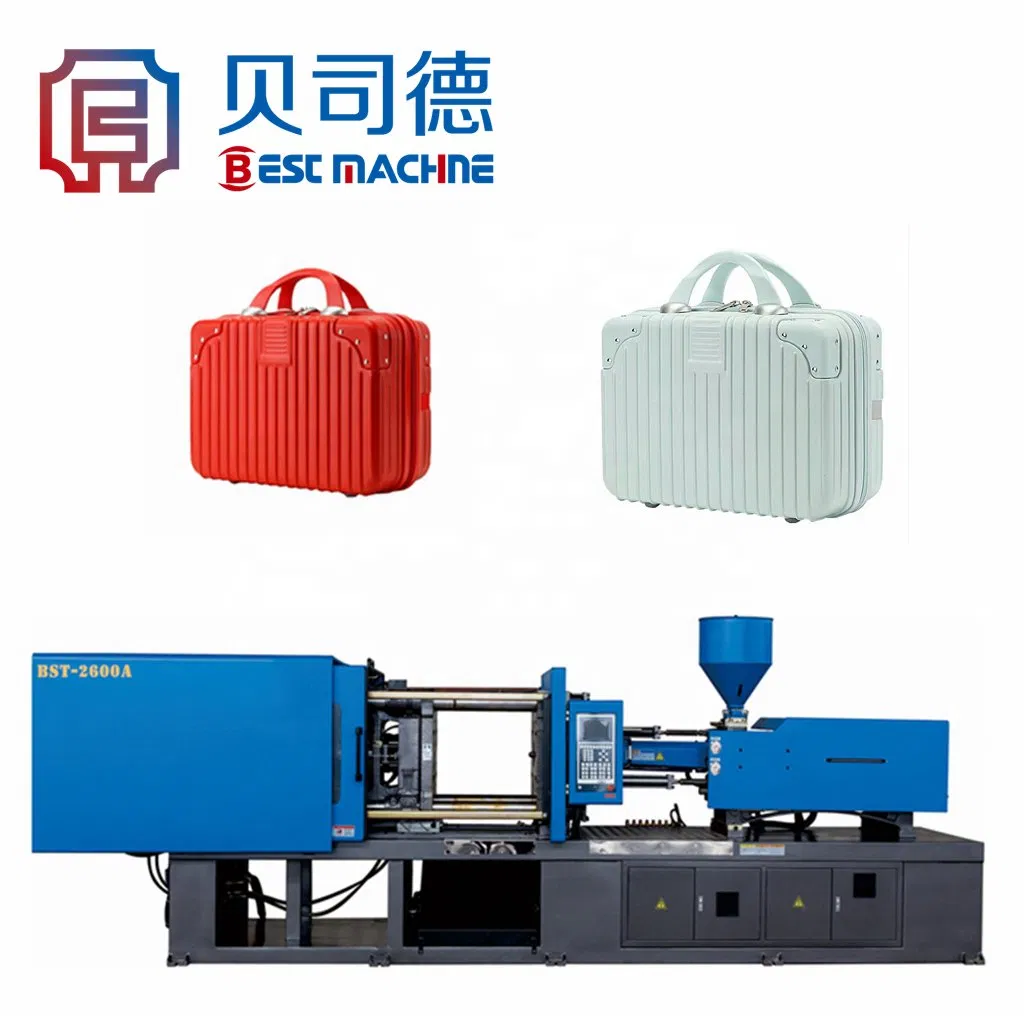

550 Ton Plastic Injection Machine PP Luggage Injection Molding Machine for Plastic Crate

1 / 5

550 Ton Plastic Injection Machine PP Luggage Injection Molding Machine for Plastic Crate

Customization:	Available
Type:	Preform Injection
Structure:	Horizontal

Send Inquiry

Product Description

Basic Specifications

Model NO.BST-5500A

Plastic TypeThermoplastic

Clamping WayHydraulic & Mechanical

AutomationAutomatic

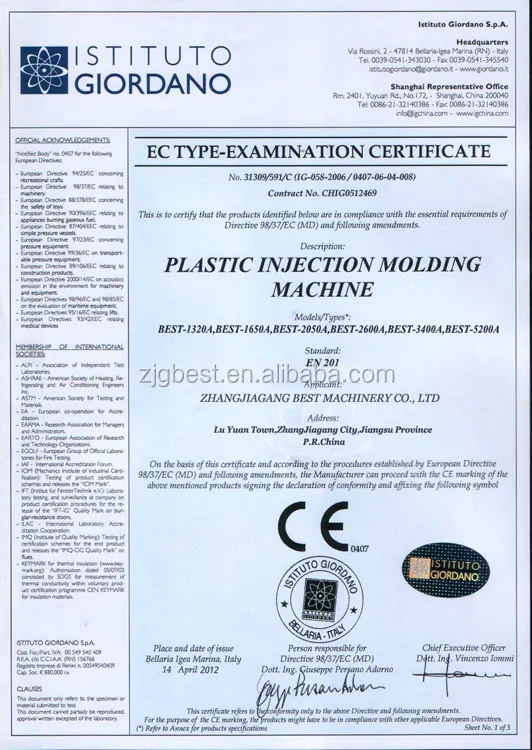

CertificationCE, ISO9001:2008

Screw Diameter80-85mm

Shot Weight1948-2200g

Clamp Tonnage5500kn

OriginChina

Production Capacity10 Sets/Month

Product Visuals

Key Features & Systems

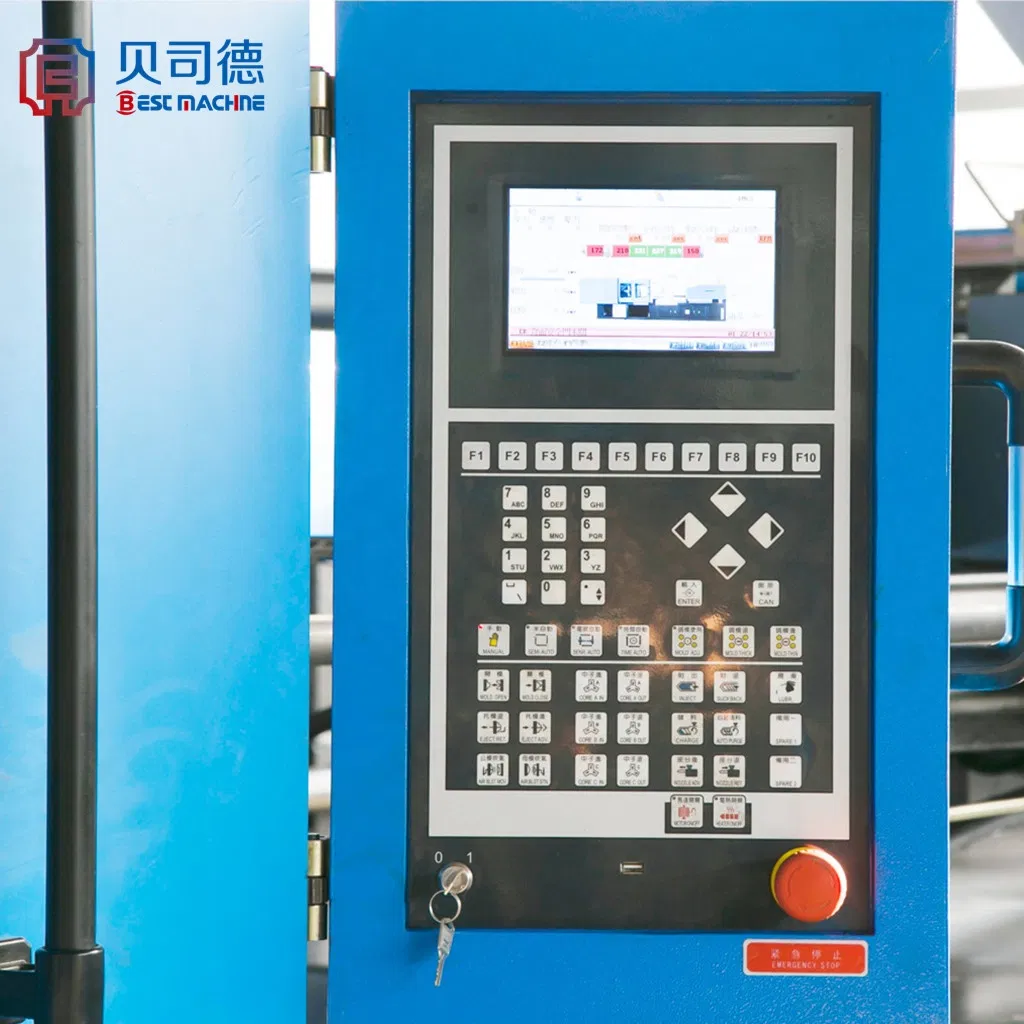

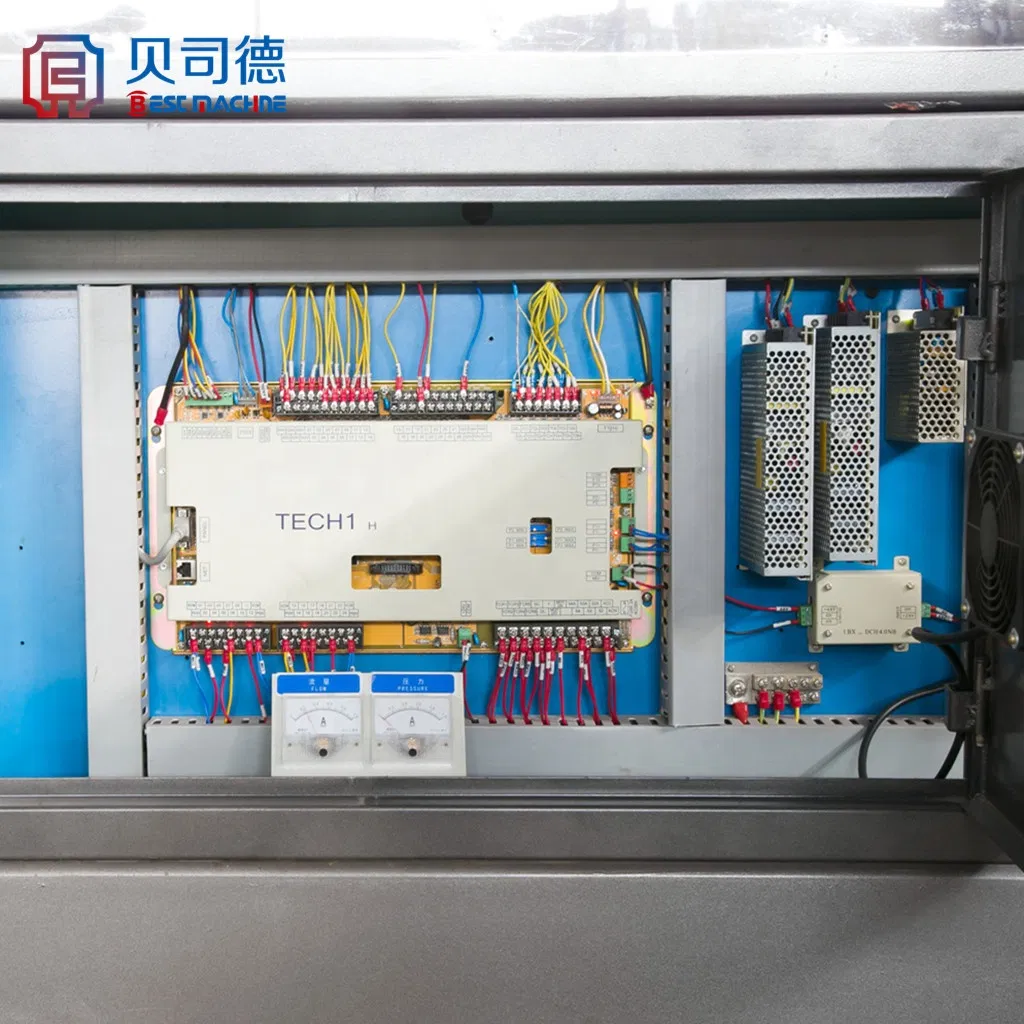

CONTROL SYSTEM: Uses dedicated controller with multiple CPU processing and color LCD interface. Features 99 mold memory and remote control interface.

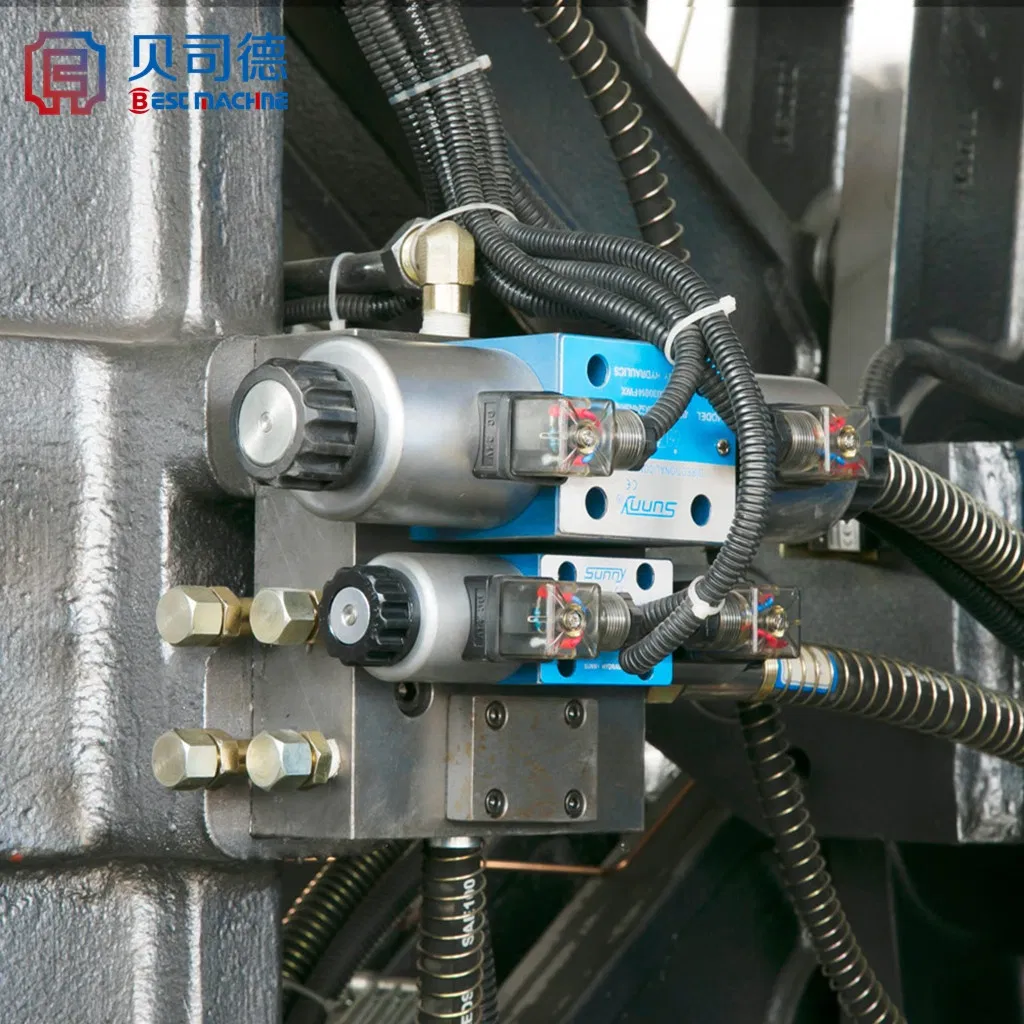

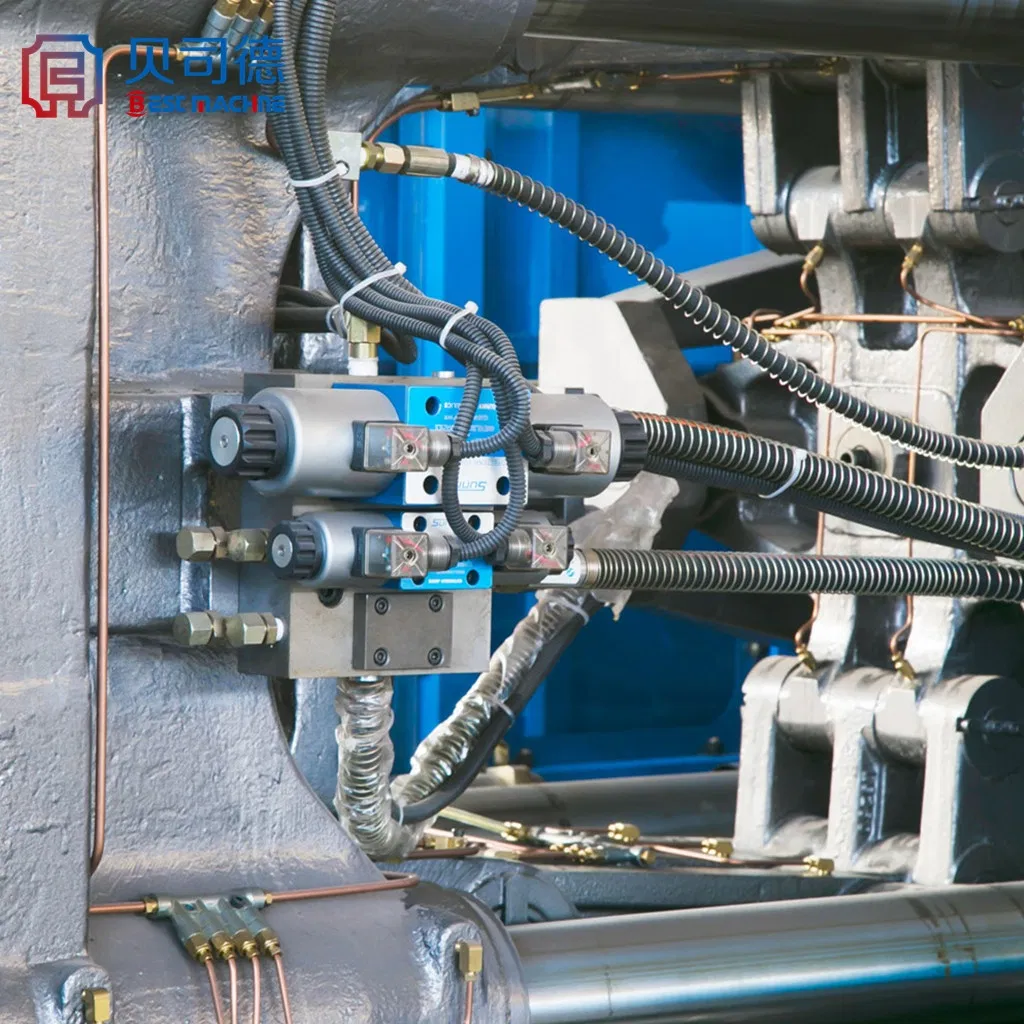

HYDRAULIC SYSTEM: Advanced design with proportional pressure and flow control. Noise level is less than 75 dB.
OPERATIONAL MODES: Manual, semi-automatic, and fully automatic modes available.
SAFETY: Automatic movement monitoring with alarm and fault diagnosis.

Technical Specifications (BST-5500A)

Screw diameter	mm	80 / 85
Shot weight	g	1948 / 2200
Injection pressure	Mpa	188 / 167
Clamp tonnage	KN	5500

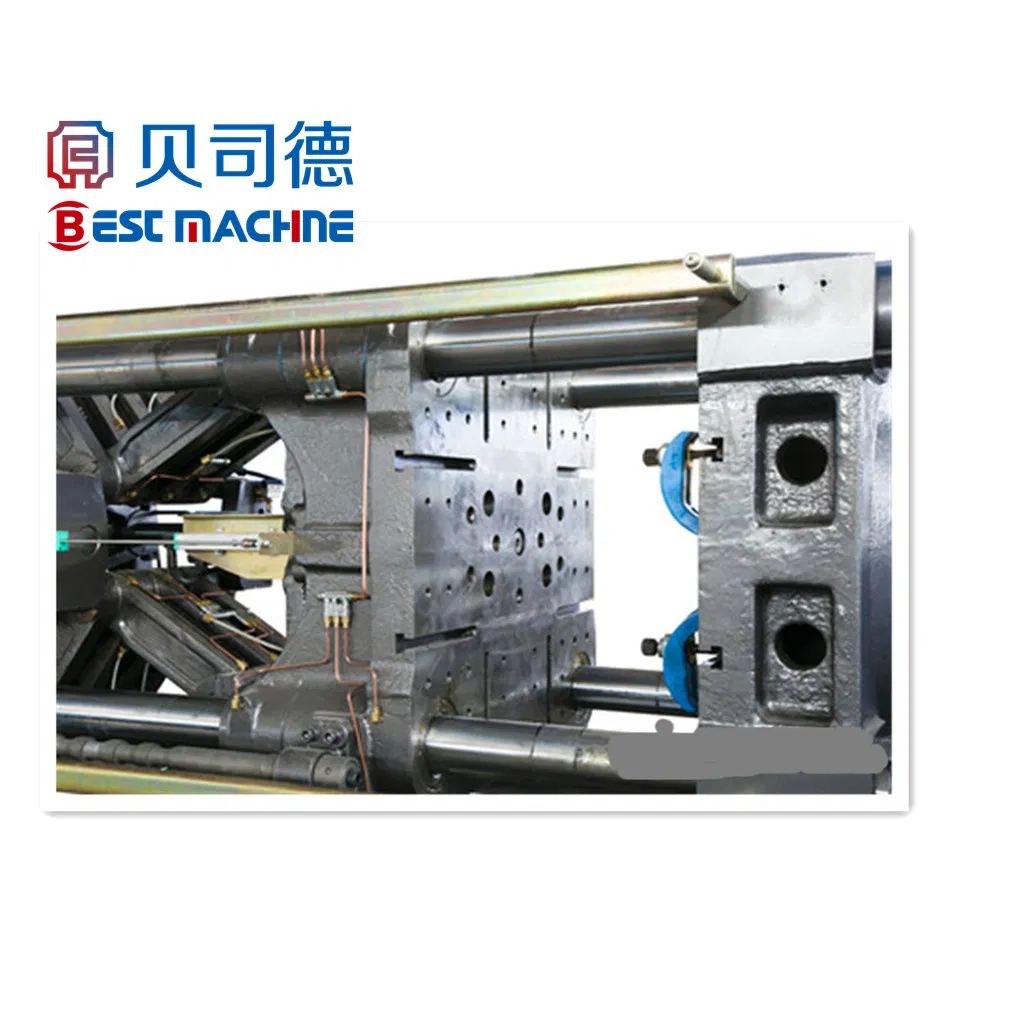

Toggle stroke	mm	820
Mould Thickness	mm	350-820
Space between tie-bars	mm	810X810
Machine dimension	m	8.4X2.2X2.6
Machine weight	t	23.5

Packing & Delivery

Packing: Anti-rust process applied. Fixed stable inside containers to prevent damage during ocean shipment.

Quality Assurance: 12-month guarantee with free spare parts replacement. Machines undergo at least 72 hours of automatic testing before shipment.

Terms: 40% deposit, 60% balance before shipment. Delivery time: 35 days after payment.

Frequently Asked Questions

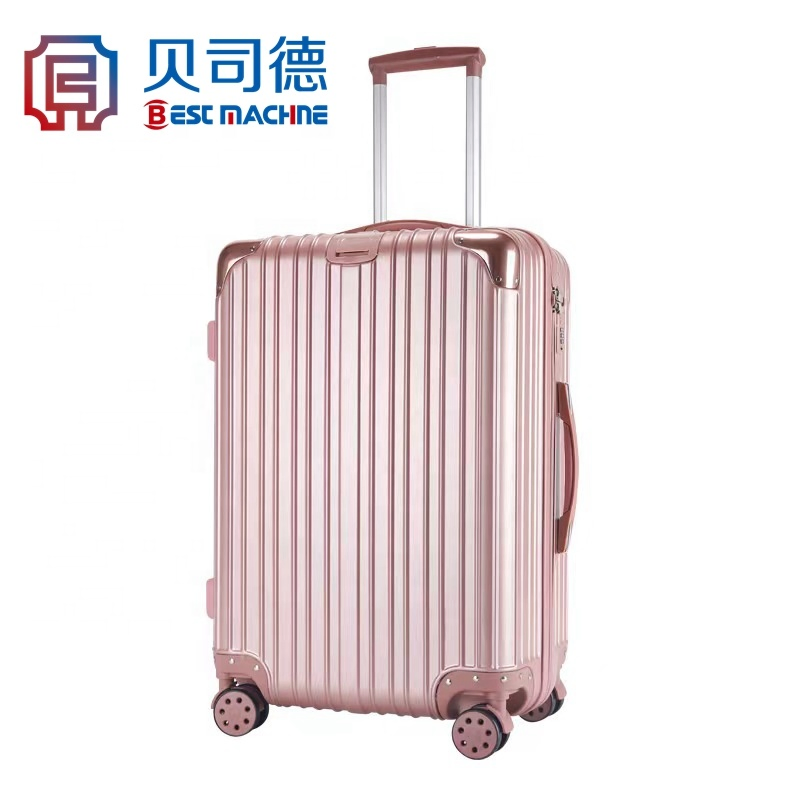

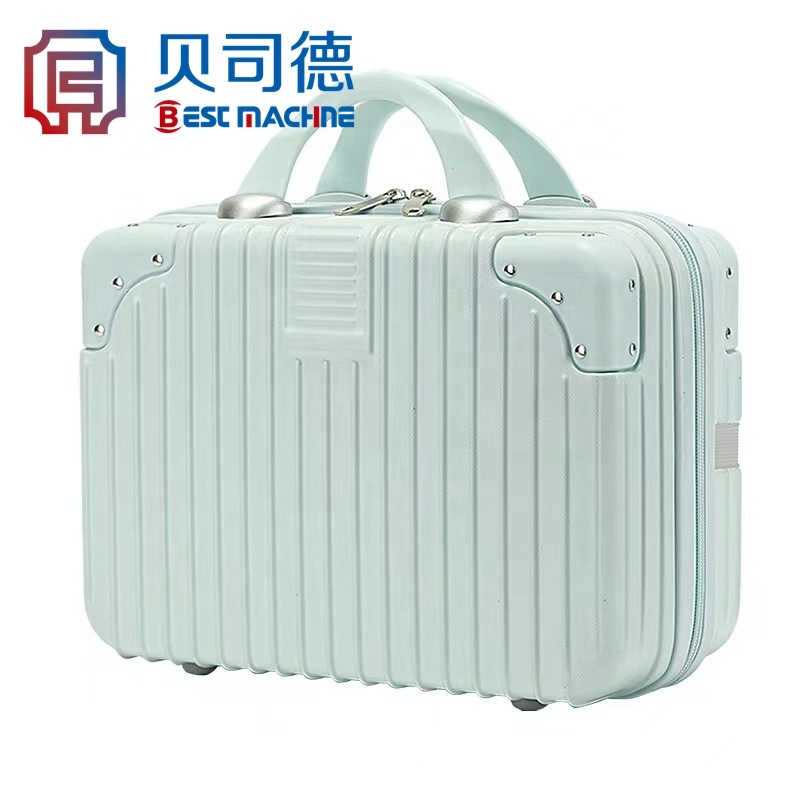

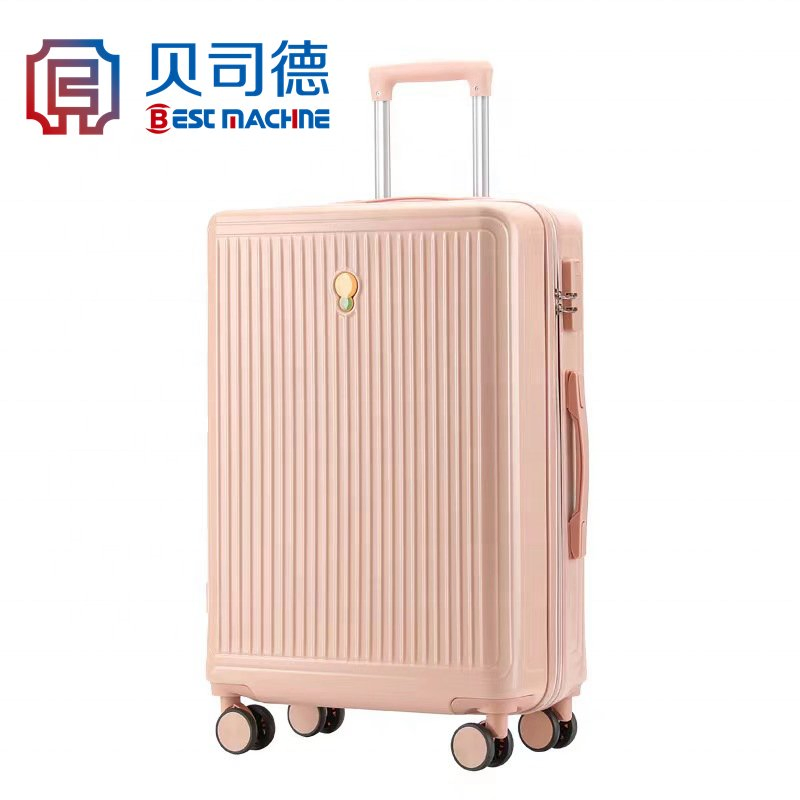

Q1: What materials can the BST-5500A process? A1: It is designed for thermoplastic materials and is suitable for producing various precision parts, including luggage and crates.

Q2: How is the quality of the machine ensured? A2: Every machine undergoes a 72-hour automatic working test before shipment and is assembled by workers with 10 years of experience.

Q3: Does the system support multiple languages? A3: Yes, the control system supports a variety of text languages, including a Chinese/English interface.

Q4: What is the warranty period? A4: We provide a 12-month quality guarantee and free spare parts replacement (excluding man-made damage).

Q5: Is overseas installation and training available? A5: Yes, we provide installation and training abroad upon request until the customer's satisfaction.

Q6: How are the machines protected during sea transport? A6: We apply an anti-rust process to all injection machines and ensure they are fixed securely inside the container.
