| Model NO. | PZSM-B03B24P-P36T3-13LH |
| Material | Copper / Brass / Plastic |
| Certification | RoHS, Hf, Reach, ISO 9001, ISO14001, IATF 16949 |
| Classification | Fine Pitch Connectors |
| Operation Temperature | -40° to +85° |
| Related Current | 3A@250V DC |
| Withstand Voltage | 500V AC/Minute |
| Production Capacity | 500,000/Week |

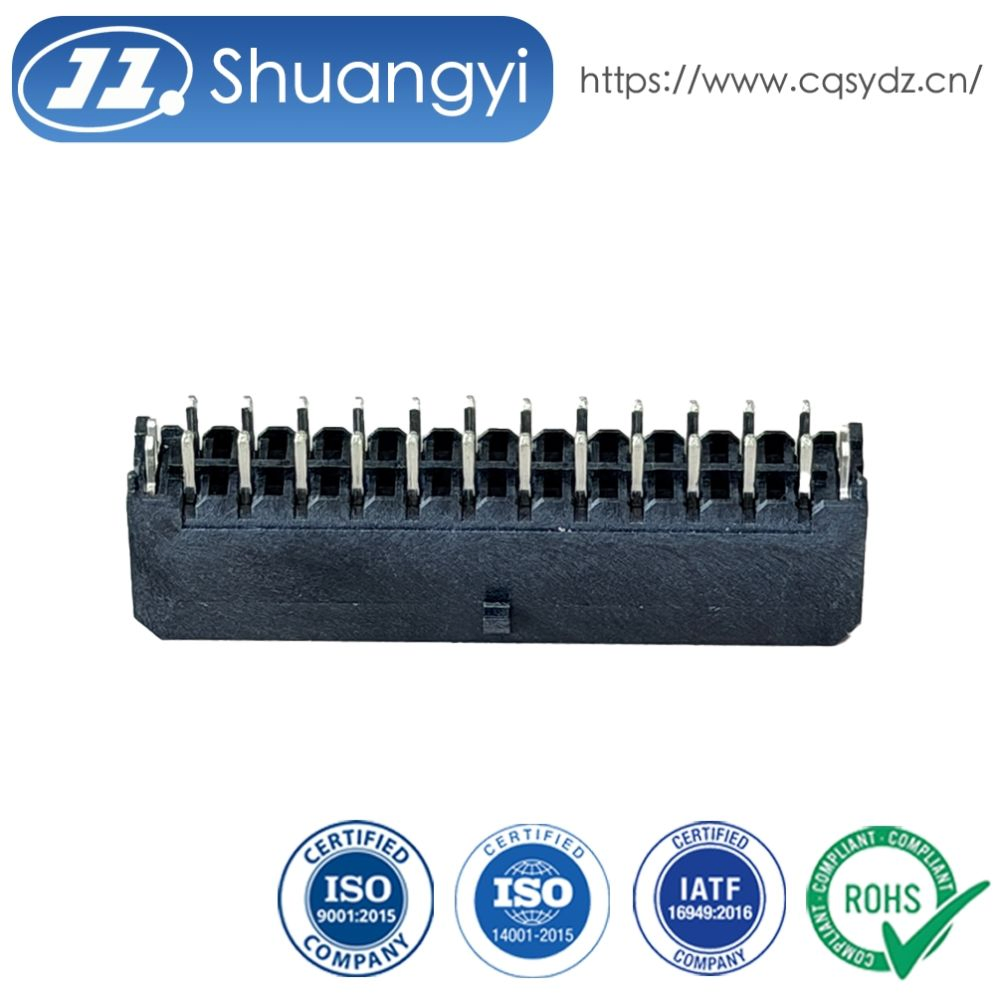

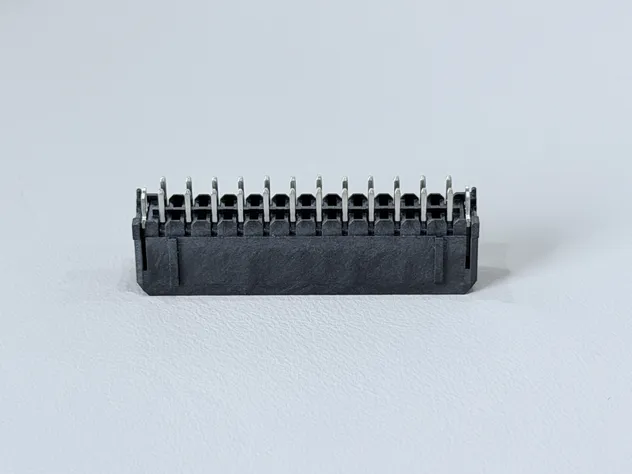

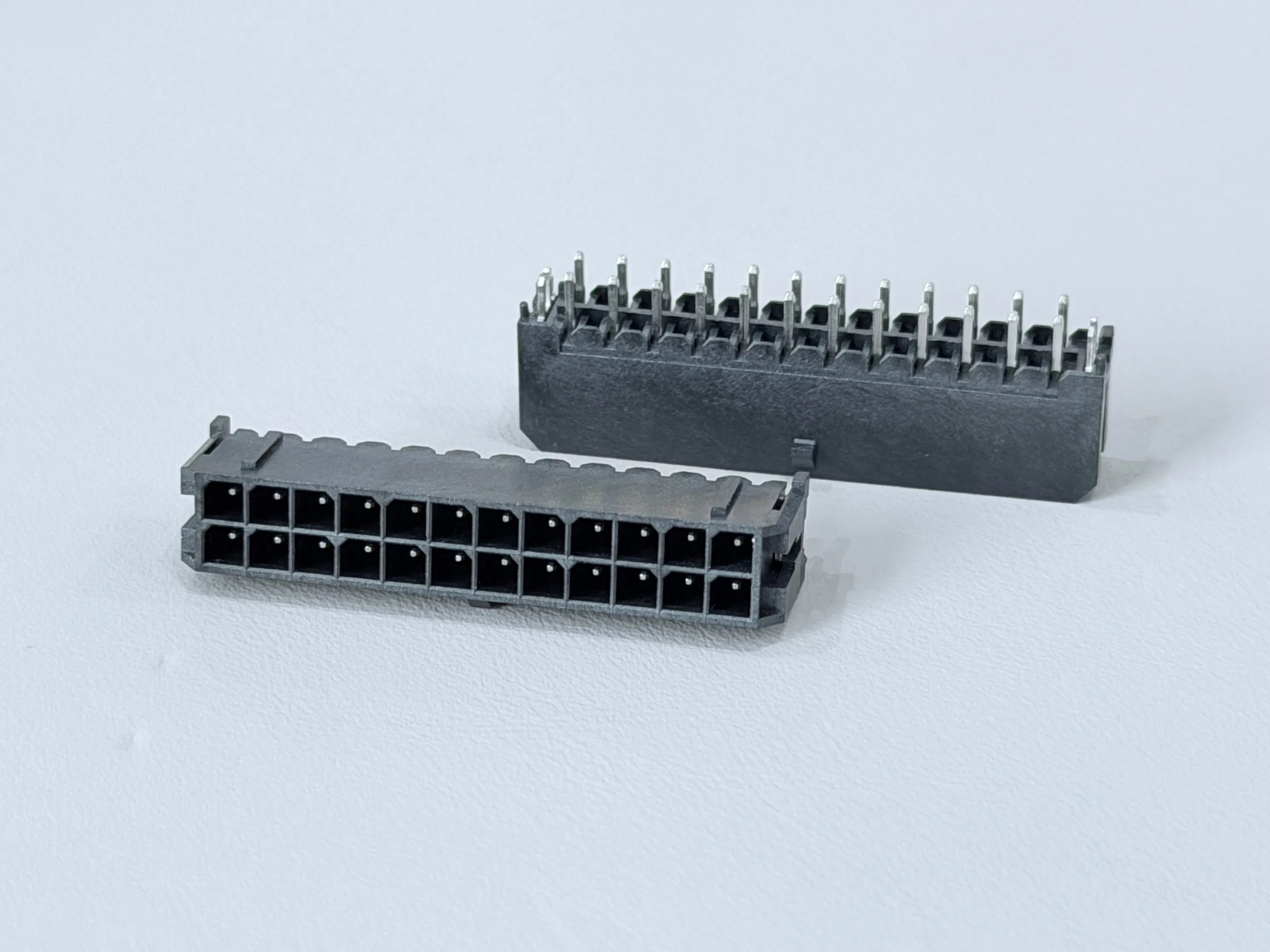

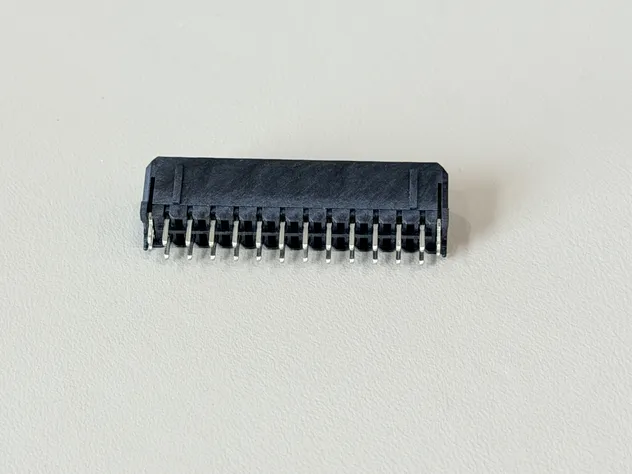

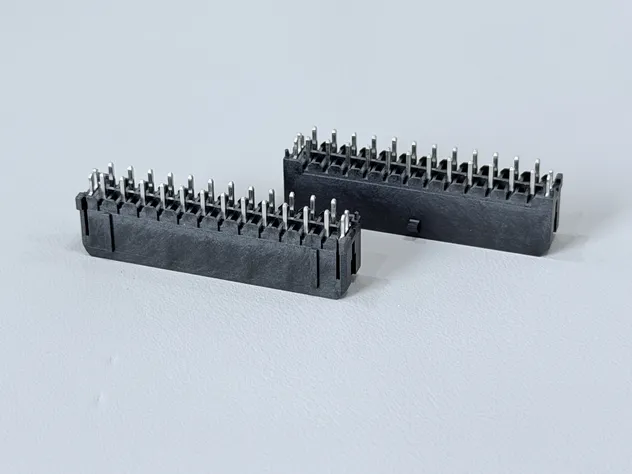

This 1.27mm pitch dual-row board-to-board female connector provides a compact, high-density solution for power and signal transmission between PCBs. Copper-alloy contacts with gold plating ensure stable electrical performance and long mating life, while the high-temperature UL94V-0 housing supports automated soldering processes.
| ITEM | SPECIFICATION |
| Product Type | Board-to-board female connector / PCB socket |
| Pitch | 1.27 mm |
| Number of Positions | 2×20 pins (customizable) |
| Contact Plating | Gold over nickel on mating area |
| Insulator Material | High-temperature thermoplastic, UL94V-0 |
| Insulation Resistance | ≥ 1000 MΩ |
| Compliance | RoHS / HF / REACH compliant |
| Package Size | 34.00cm * 34.00cm * 41.00cm |
| Package Gross Weight | 10.000kg |
| Quantity | Around 2500PCS/Package |

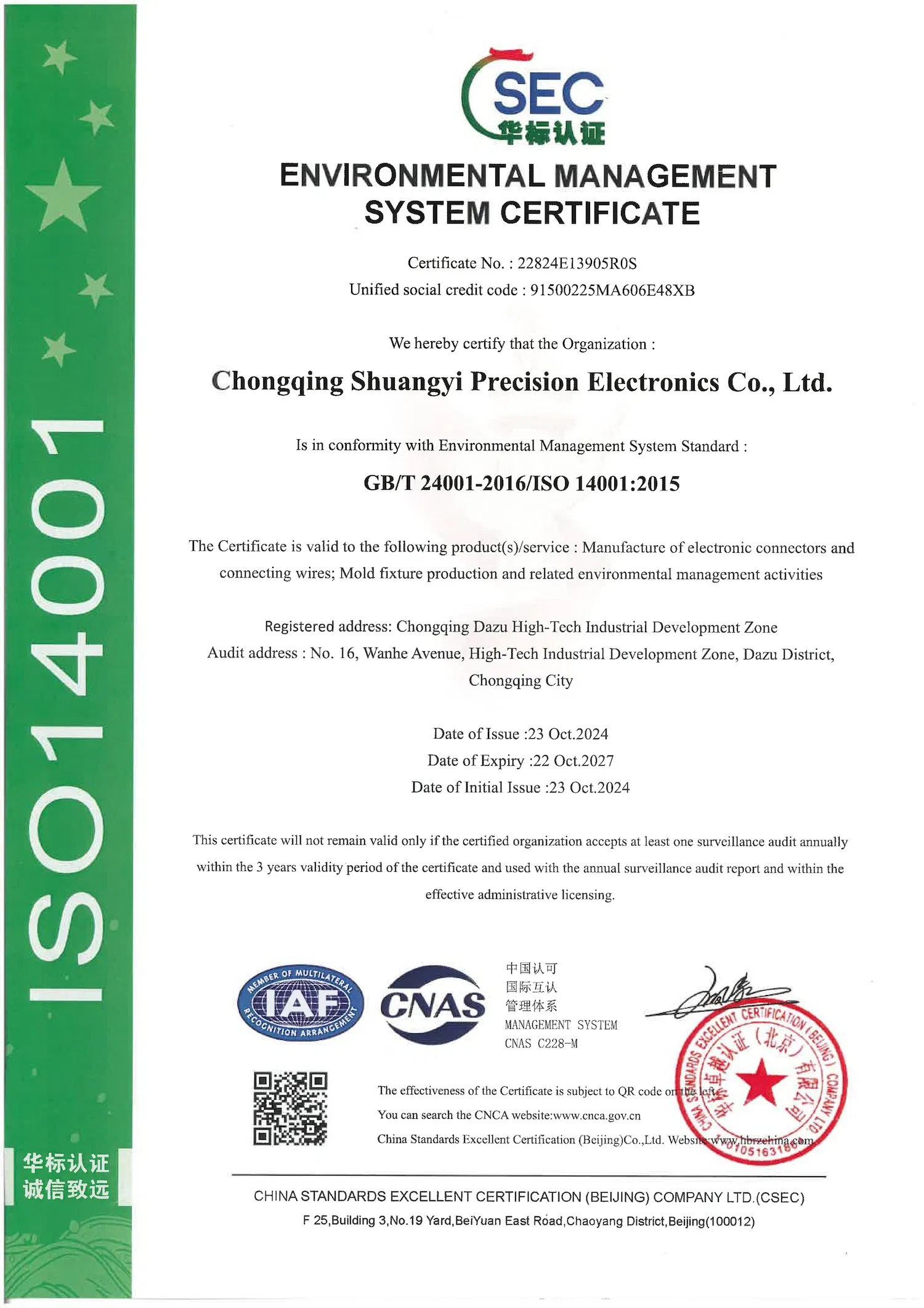

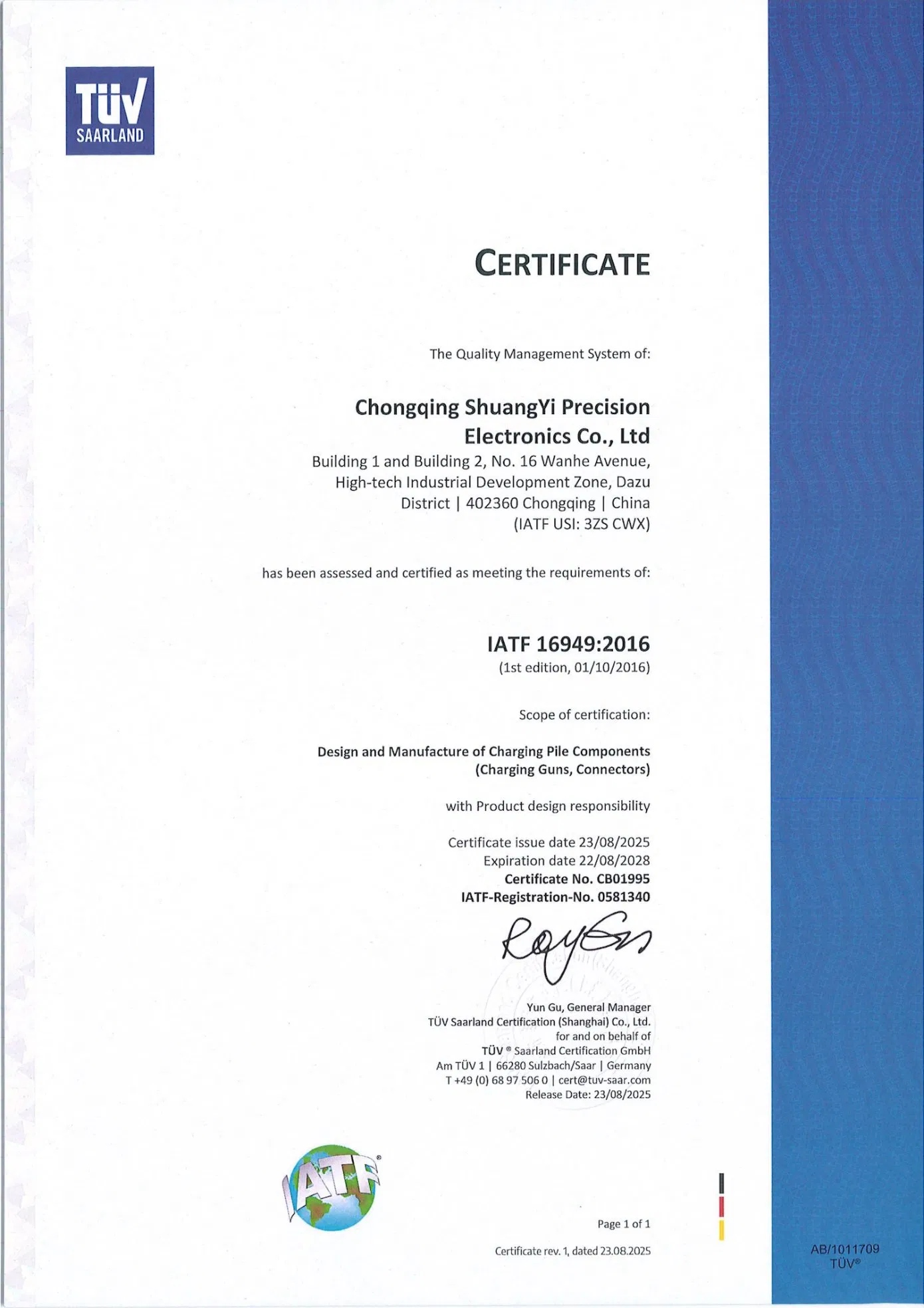

We are a professional manufacturer integrating R&D, production and sales of high-speed electronic connectors and EV charging equipment. Our products include PCIe 3.0/4.0/5.0/6.0 connectors, SAS, SATA, USB, Type-C, and HDMI. Certified under ISO9001/14001 and IATF 16949.

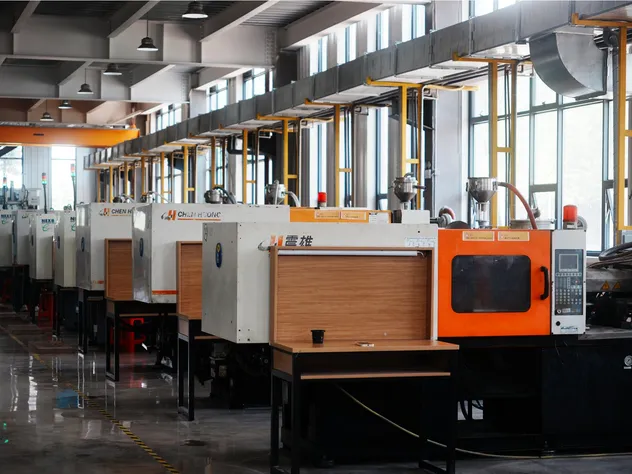

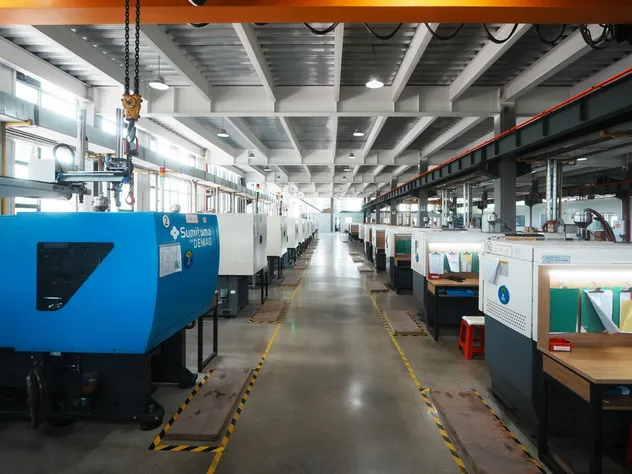

Injection Molding

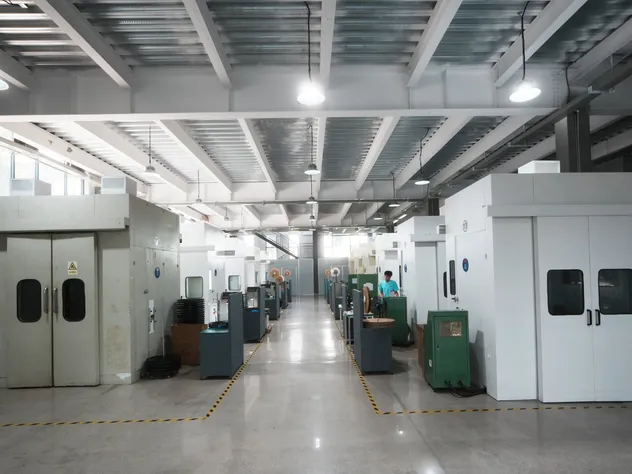

Metal Stamping
