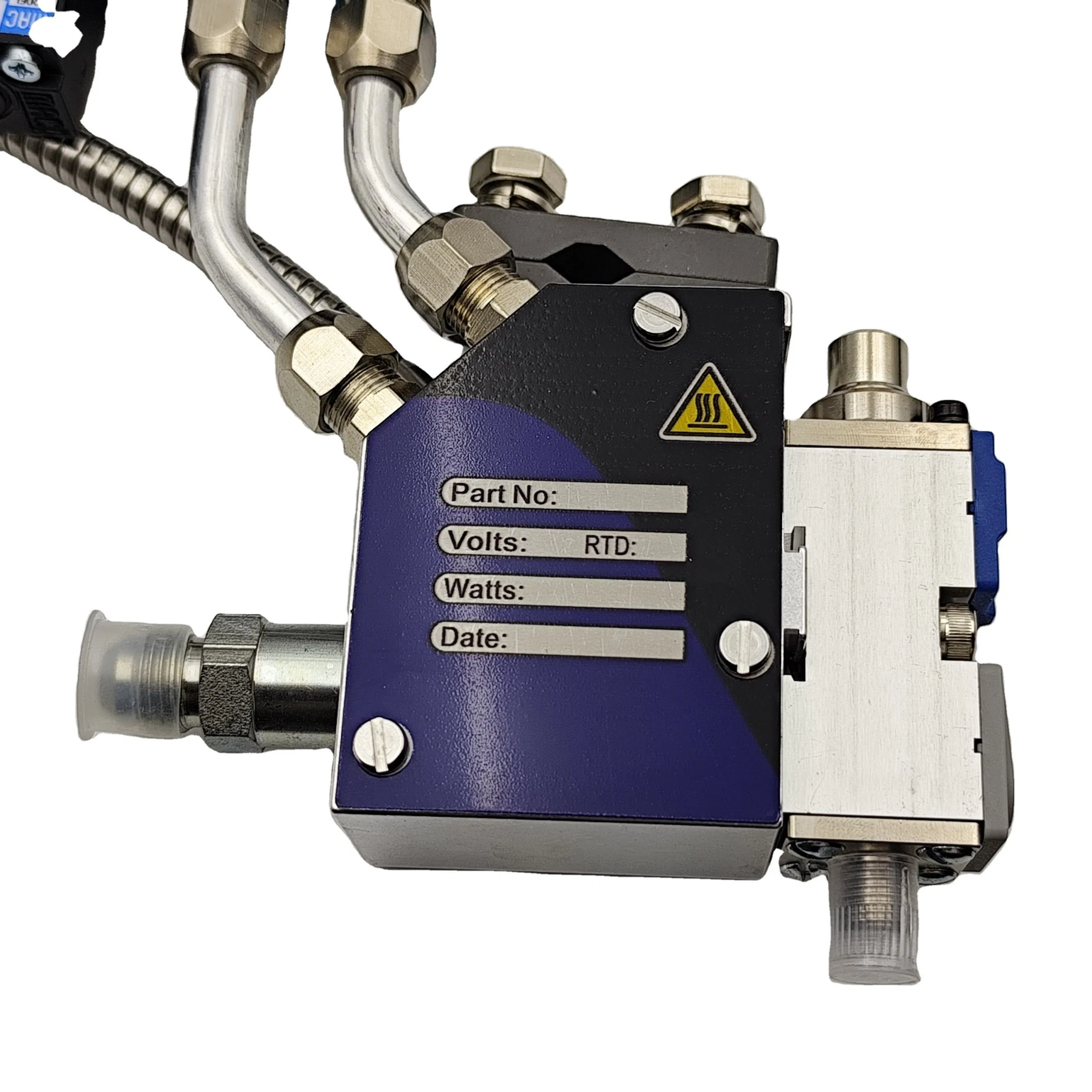

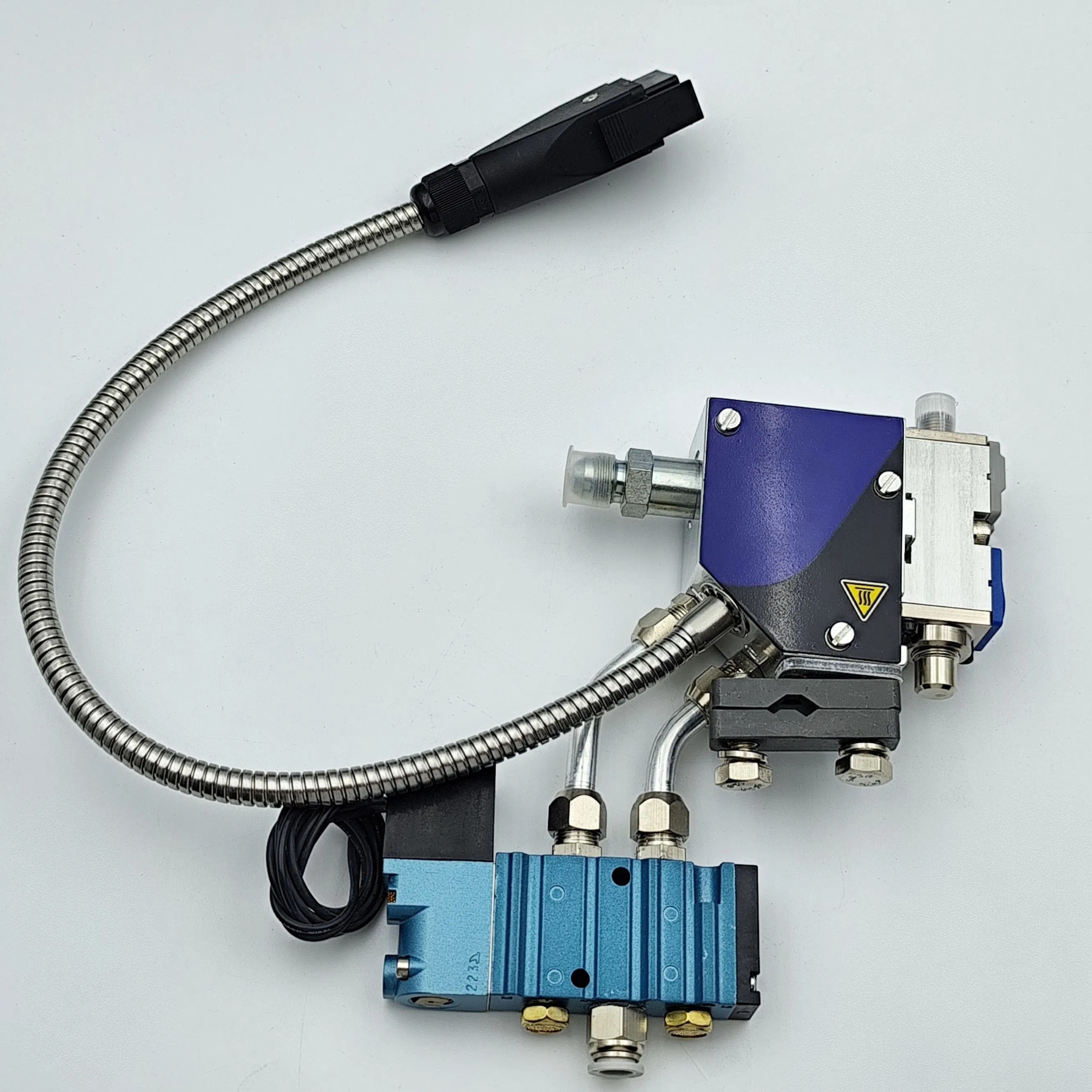

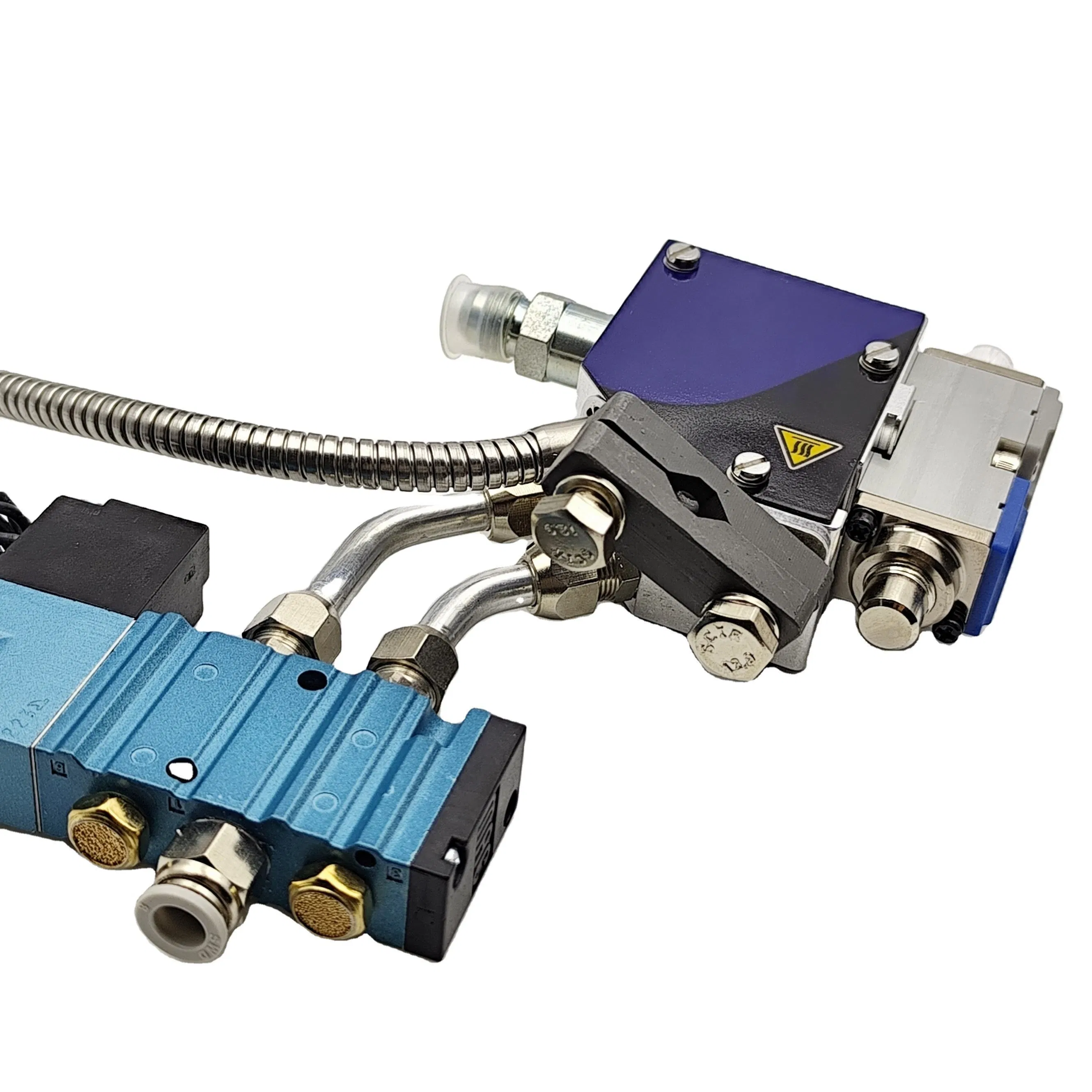

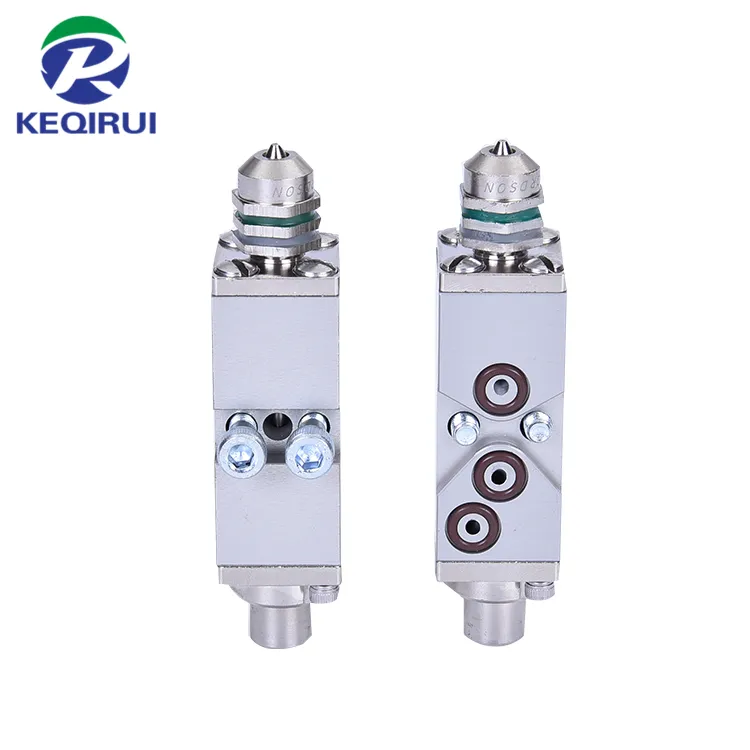

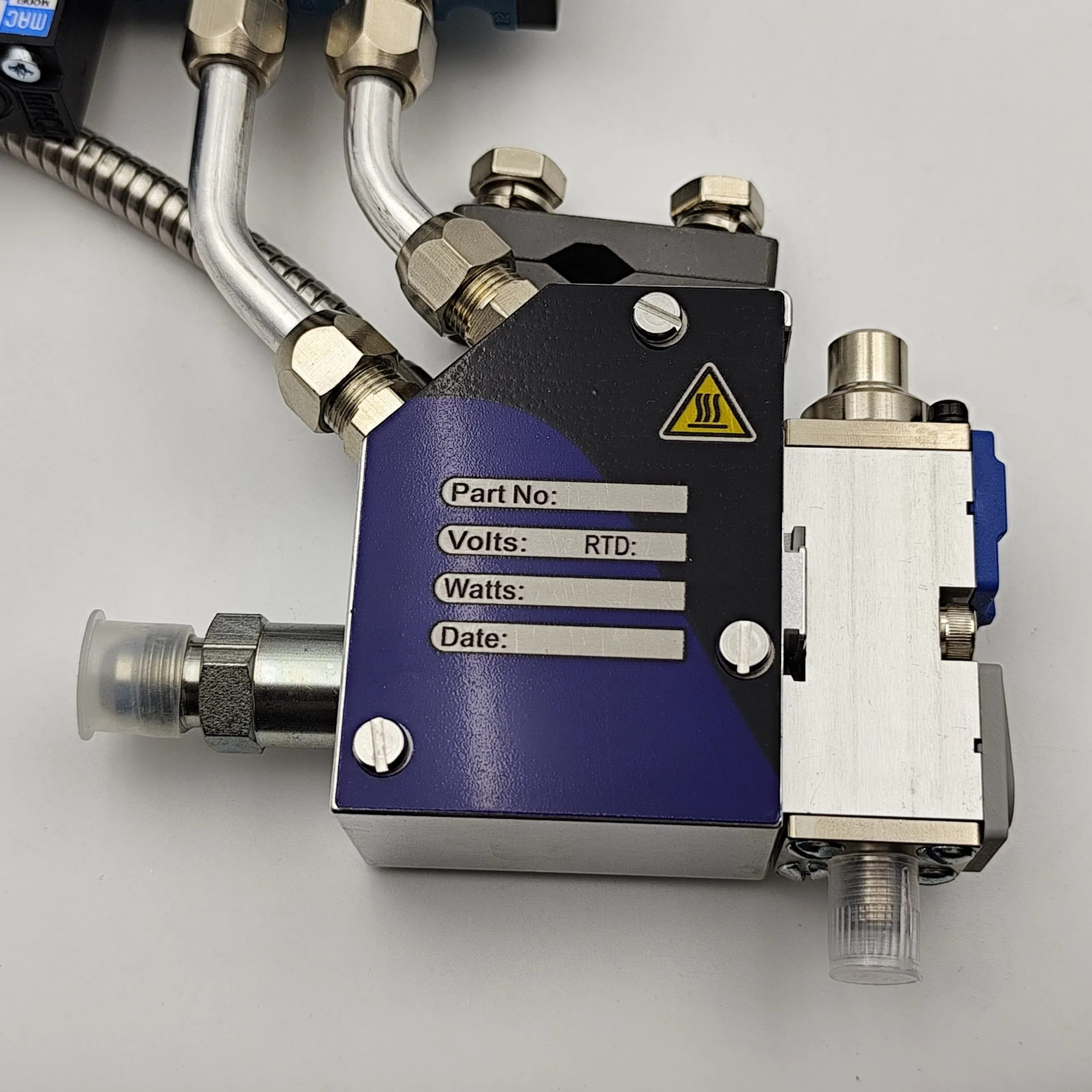

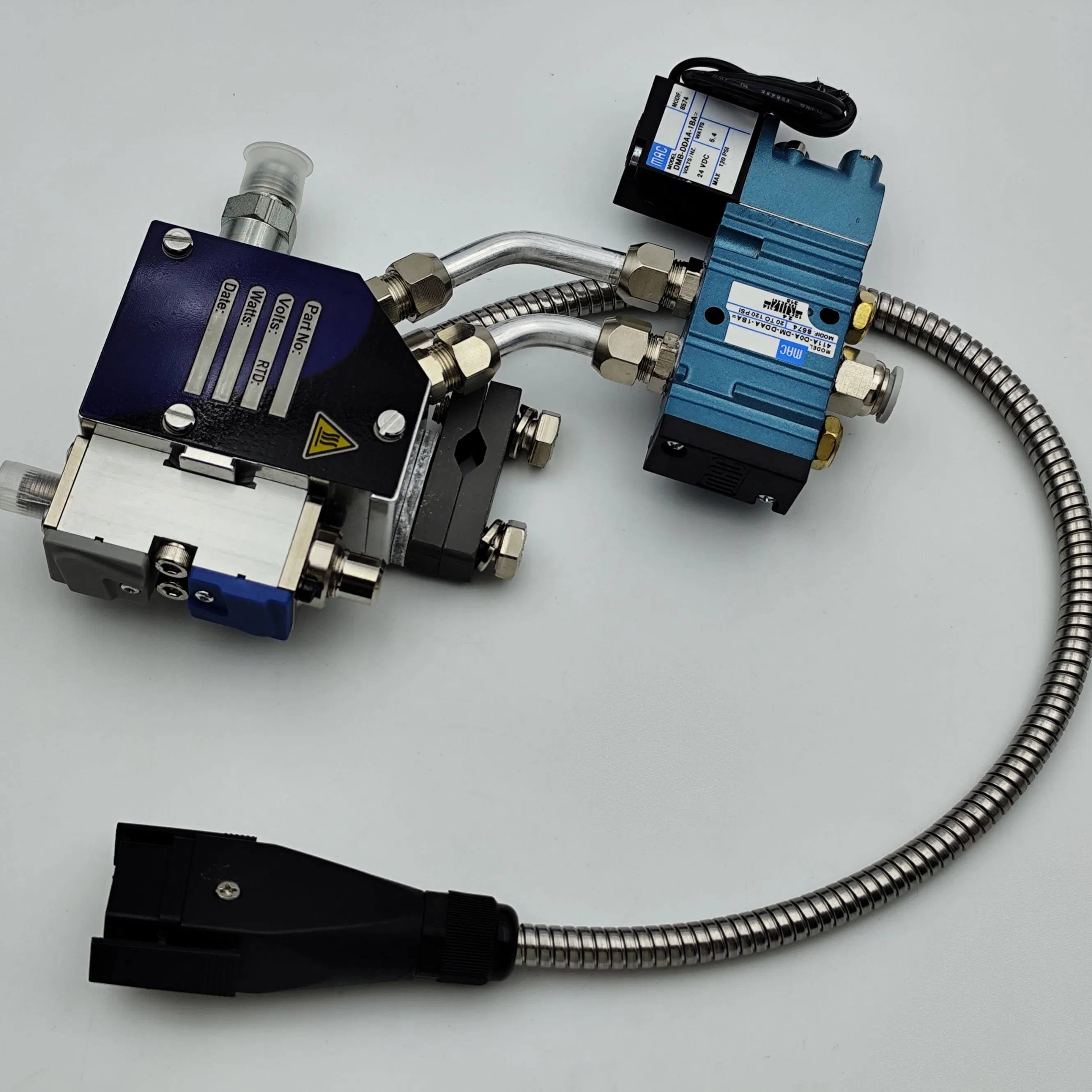

1052927 Hot Melt Spray Gun Module Hot Melt Glue Gun Dispensing Gun Injection Glue Gun

Customized Low Heat Hot Glue Gun - Heavy Industrial Grade

The hot melt glue dispensing gun is a precision tool that controls the adhesive switch by driving an ejector needle valve using compressed air. When the thimble moves downward, the valve closes, ensuring a clean break with no tailing or drawing phenomenon. It is ideal for high-precision spray glue lines.

Scope of Application:

• Self-adhesive labels, sanitary products, and medical dressings.
• Packaging, bookbinding, and automotive assembly.
• Furniture production, footwear, and wood industry.
• Electronics, textiles, and architectural decoration.
• Automatic packaging lines (milk sealing, carton folding, biscuit packaging).

1. No Drawing: Designed using heat conduction modules and thermodynamic theory to eliminate adhesive drawing and carbide production.

2. Alloy Steel Nozzle: Inlaid hard alloy dispensing nozzle spray head improves life span and ensures straight-line injection without deflection.

3. Even Dispensing: Fluid mechanics design ensures uniform spray amount even when multiple guns are combined.

4. Zero Leakage: High-precision grinding and mechanical seals eliminate glue leakage, ensuring high strength and long life.

5. High Frequency: Straight-through pilot switch design allows up to 1200 switching frequencies per minute.
