P2 P2.5 P3 Indoor LED Display Flexible LED Display Screen Board Panels Module

1 / 5

P2 P2.5 P3 Indoor LED Display Flexible LED Display Screen Board Panels Module

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ph3.2

Pixel Pitch

2.6

Pixel Configuration

1R,1G,1B

Pixel Density

27,777 dots / m²

Scanning Mode

1/16 Scan

System Platform

WIN2000

Display Type

LED Video Display

Application

Stage Performance, Advertising

IP Rating

IP43

Certification

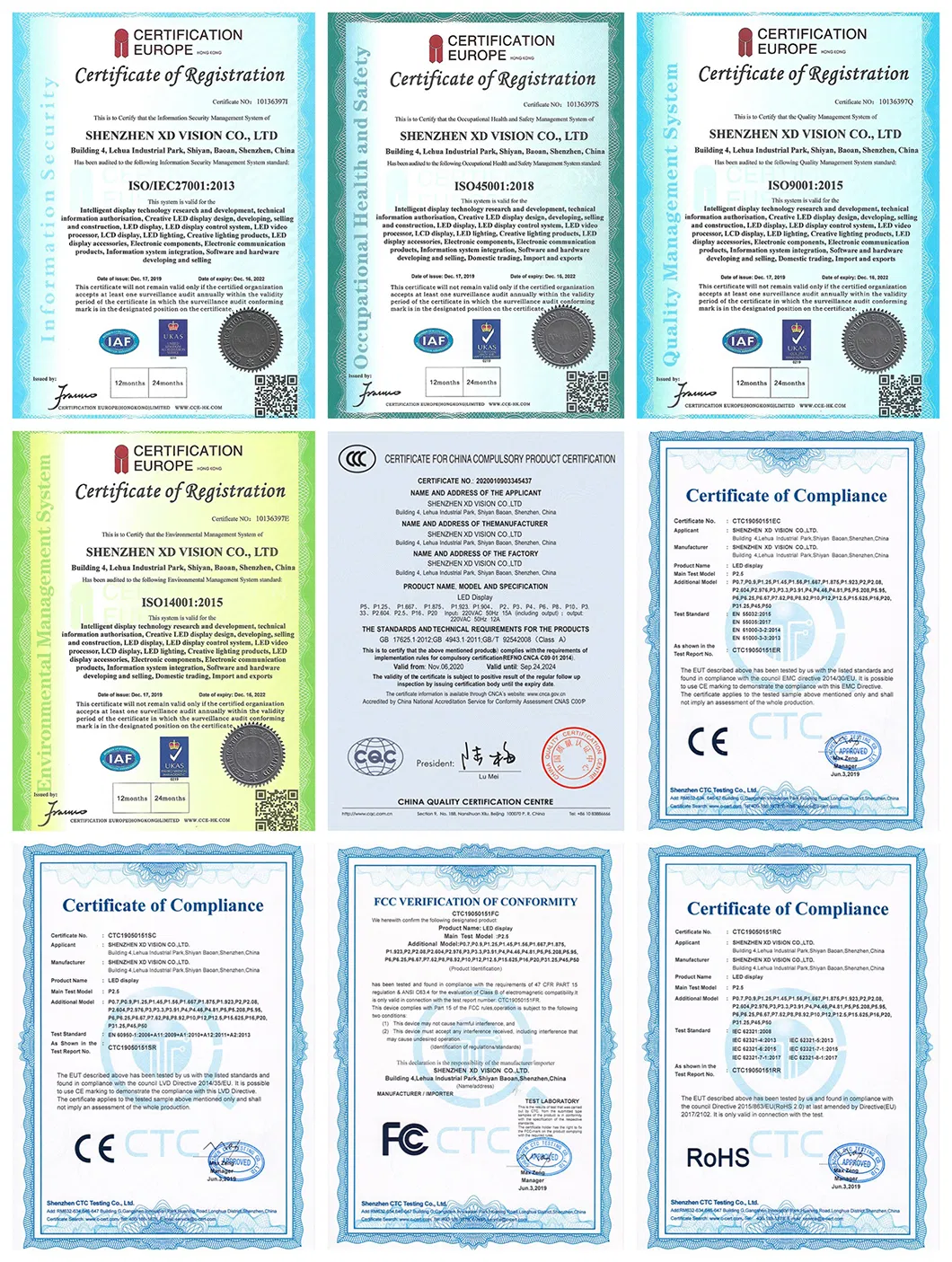

CE, RoHS, CCC, ETL

Brightness

850

Refresh Rate

3840

Cabinet Material

Aluminum

Maintenance

Front Maintenance

Module Size

250*250mm

Gob Option

Yes

Key Features & Advantages

1. Lightweight Design: Die-cast Aluminum cabinet, 5.8kg/pc, only 33mm thickness.

2. Stable Connection: Direct connection from module to Hub card, cableless and simple.

3. Easy Maintenance: Magnetic module with full front maintenance for space saving.

4. Flexible Design: Suitable for curved design LED display configurations.

5. Wide Viewing: Exceptional wide viewing angles for audience engagement.

6. High Quality: High refresh rate and gray color depth, optimized for 16:9 ratio.

7. Smart Installation: Multiple options including hanging or wall-mount to save costs.

Technical Specifications

Part Number	XD1000-1.7	XD1000-1.9	XD1000-2.6	XD1000-2.9	XD1000-3.9	XD1000-4.8
Pixel Pitch (mm)	1.736	1.953	2.604	2.976	3.91	4.81
LED Configuration	SMD1010	SMD1010	SMD2020	SMD2020	SMD2020	SMD2020
Pixel Density (dot/m²)	331776	262144	147456	112896	65536	43264
Cabinet Size (mm)	100025033 / 75025033 / 50025033
Brightness (CD/m²)	600	600	800	800	800	800
Refresh Rate (Hz)	3840	3840	1920/3840	1920/3840	1920/3840	1920/3840
Gray Scale (bit)	14	14	14	14	14	14
IP Rating	IP32
Power Max (W)	160

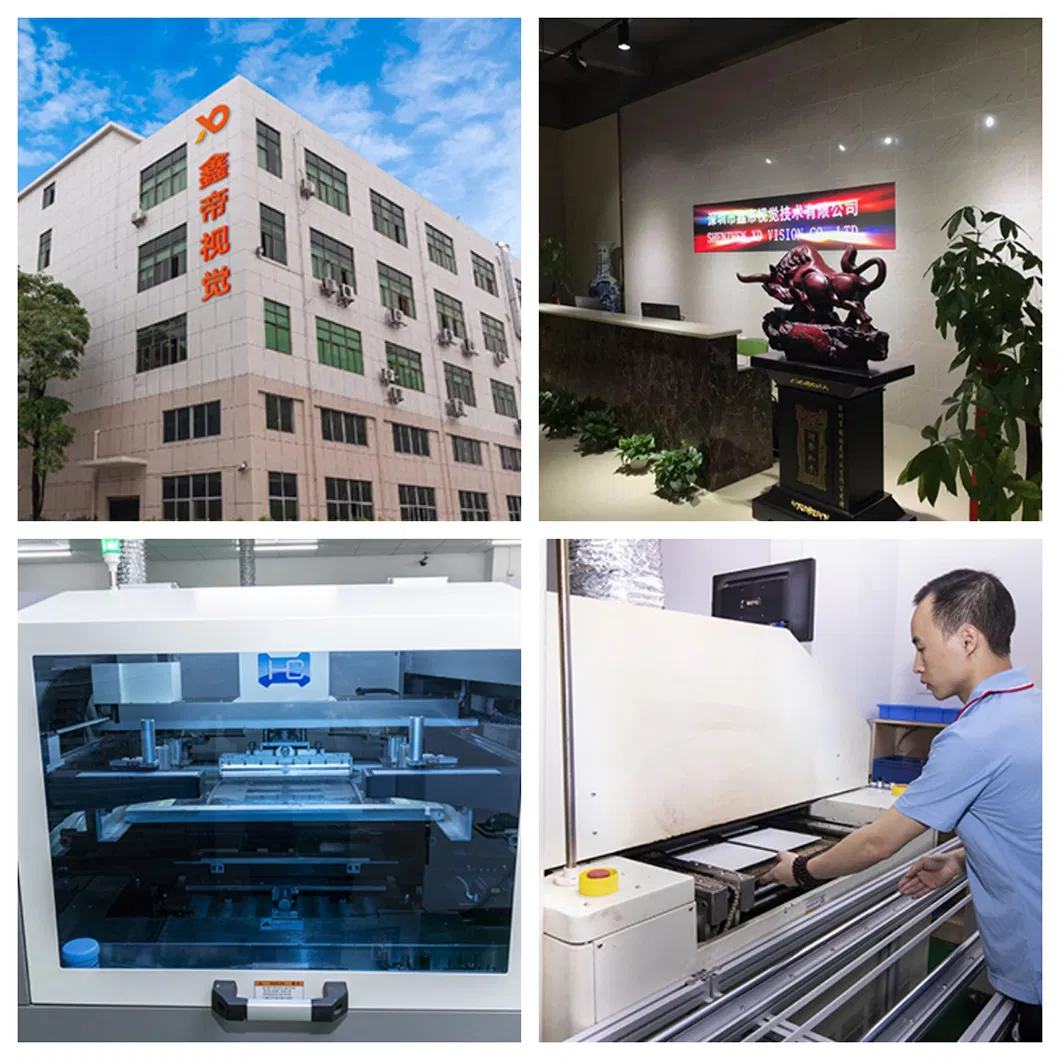

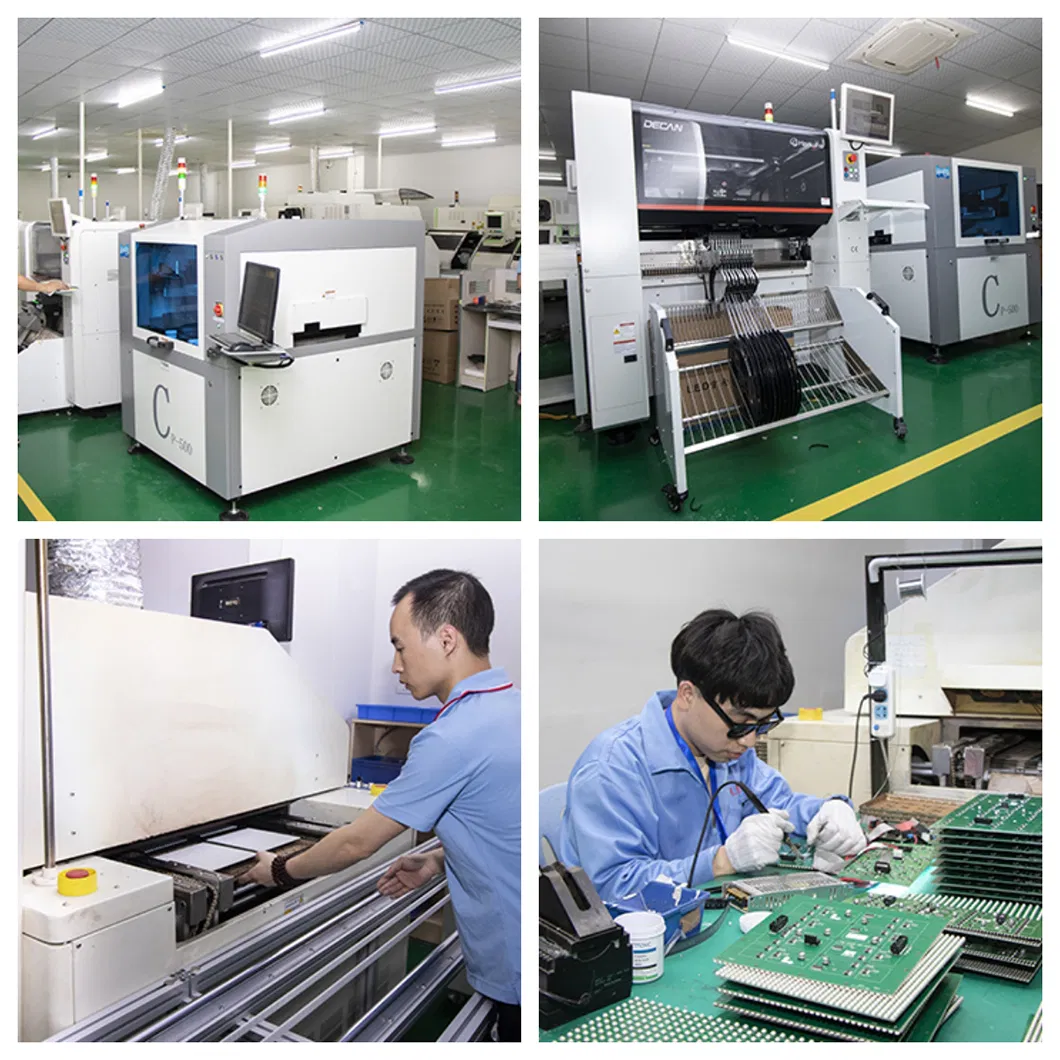

Factory & Production

Professional manufacturer of LED displays with advanced R&D and independent design capabilities. We provide creative and custom-made LED models alongside standard screens. Our experienced team ensures efficient production and technical support, delivering qualified products for shopping malls, airports, theaters, and sports fields globally.
