Model NO.:pcb layout design
Material:Fiberglass Epoxy
Application:Consumer Electronics
Base Material:Copper
Layer:1-40 layers
Surface Finishing:HASL\OSP\Immersion Gold
Copper Thickness:0.5-5oz
Board Thickness:1.6 ±0.1mm
Min Line/Width:3/3mil
Production Cap.:30000 Pieces
Main Circuit Board: The Heart of Your Electronics
The main circuit board, also known as a motherboard, printed circuit board (PCB), or logic board, is the unsung hero of most electronic devices. It's the central platform that connects all the crucial components and facilitates communication between them.
Understanding Functionality
- Core Components: Houses the CPU, RAM, and ROM for data processing and storage.
- Communication: Integrates chips for video, audio, and USB connectivity.
- Power Delivery: Efficiently distributes voltage across all components.
Why Choose Our Services?
- Over 19 years of experience in electronic manufacturing services.
- One-stop service covering PCB manufacturing, sourcing, and assembly.
- Global supply chain ensuring reasonable and stable pricing.
- Stringent quality assurance with dedicated engineering teams.

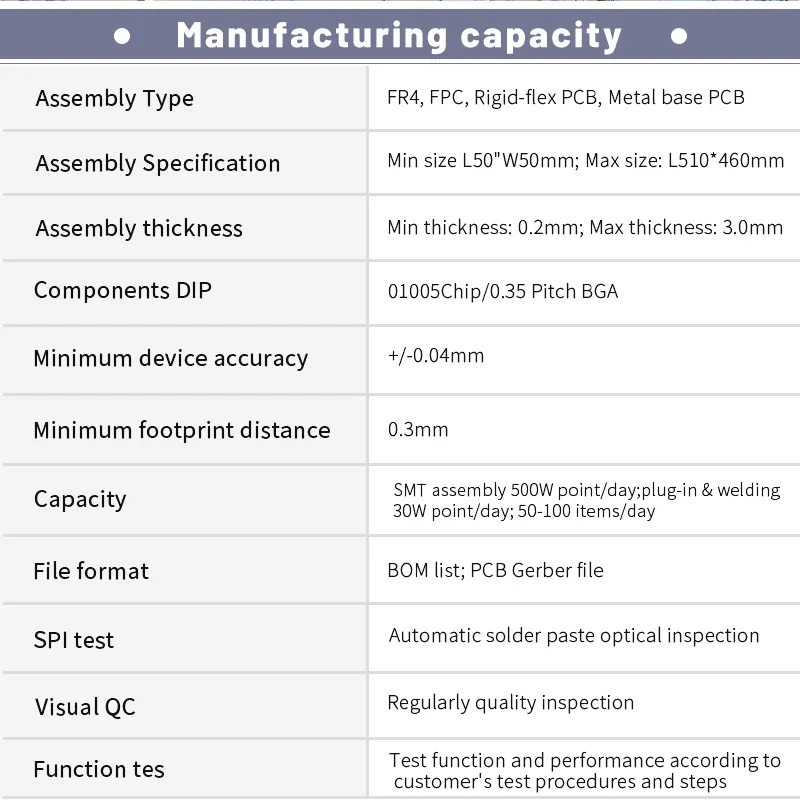

| PCBA Technical Capability |
| Assembly Type | FR4, FPC, Rigid-flex PCB, Metal base PCB |
| Max Size | L510*460mm |
| Min Thickness | 0.2mm |
| Accuracy | +/-0.04mm |
| Testing | IQC, IPQC, AOI, X-Ray, SPI, Function Test |
| SMT Capacity | 5 million points/day |
❓ Frequently Asked Questions
1. What types of PCBs can you manufacture?
We specialize in 1-40 layer PCBs including FR4, Rigid-flex, Metal base, and High Tg materials with various surface finishes like HASL and Immersion Gold.
2. How do you guarantee product quality?
We implement a strict quality control process including pre-production samples, 100% AOI testing, X-ray inspection for BGA, and final functional testing before shipment.
3. What is the typical delivery time for orders?
Standard prototypes can be delivered in 24 hours (fastest 12h), small production in 72 hours, and medium production runs typically take 5 working days.
4. Do you provide component sourcing services?
Yes, we offer a full one-stop PCBA service including component procurement, management, and cost-effective substitute solutions for OEM projects.
5. What file formats are required for a quote?
To provide an accurate quote, we require the PCB Gerber files and a complete BOM (Bill of Materials) list.
6. What testing standards do you follow?
Our inspection standards comply with IPC-A-610 Class II, and we hold certifications including ISO9001, ISO14001, and IATF16949.
