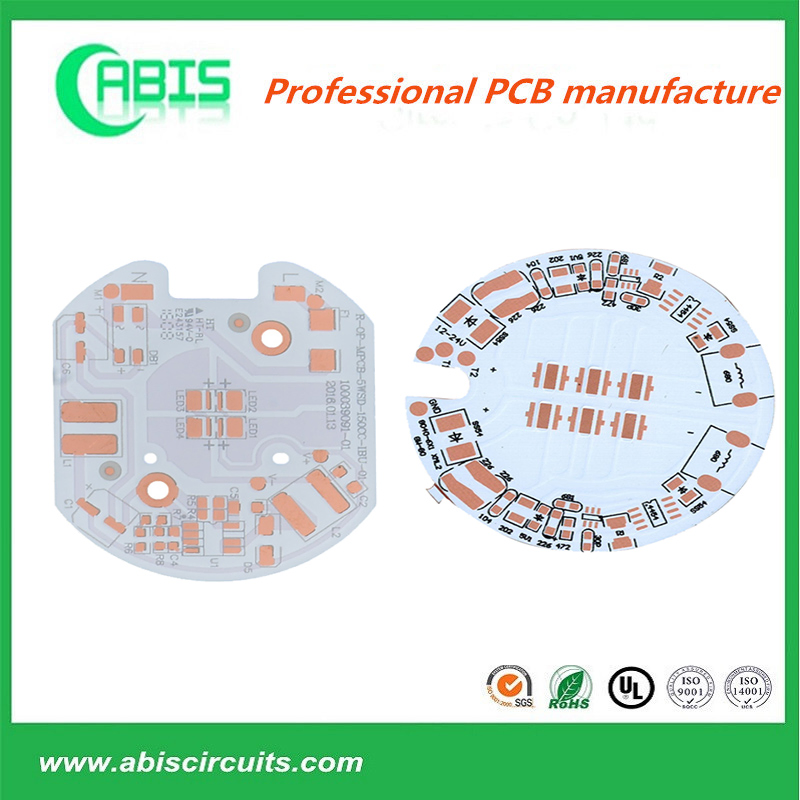

Beauty Board
1 / 5
Model: meggie289
Layers: 4 Layers (Double-Layer available)
Material: FR-4, High Tg, PTFE, Rogers, Aluminum

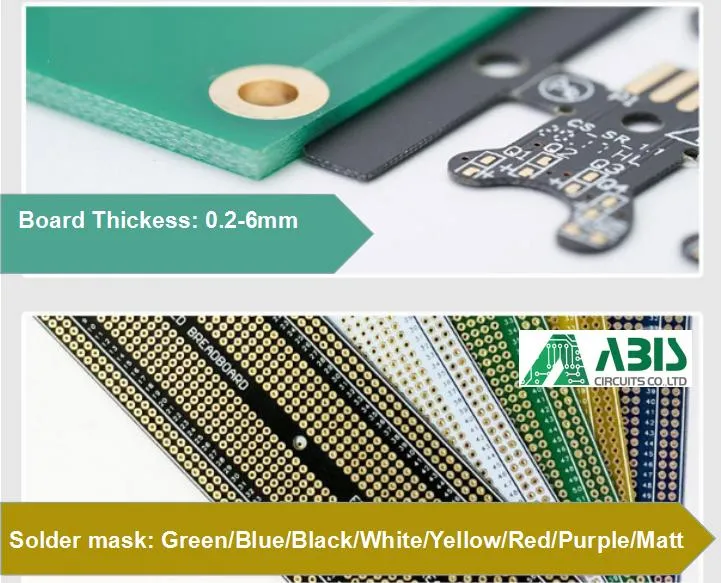

Thickness: 0.20mm - 8.00mm
Capacity: 50,000 Sq.m/Month

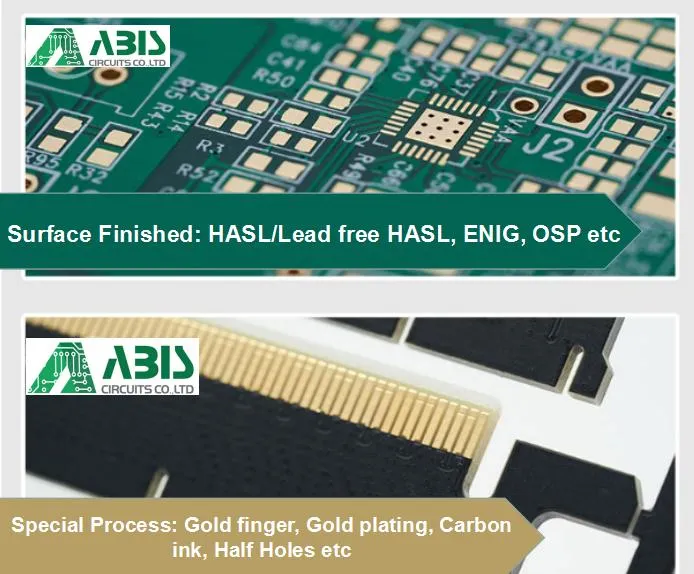

Surface Finish: HAL, Lead-free HASL, ENIG, OSP
Certification: RoHS, CCC, ISO9001, ISO14001, SGS, UL
Origin: Made in China

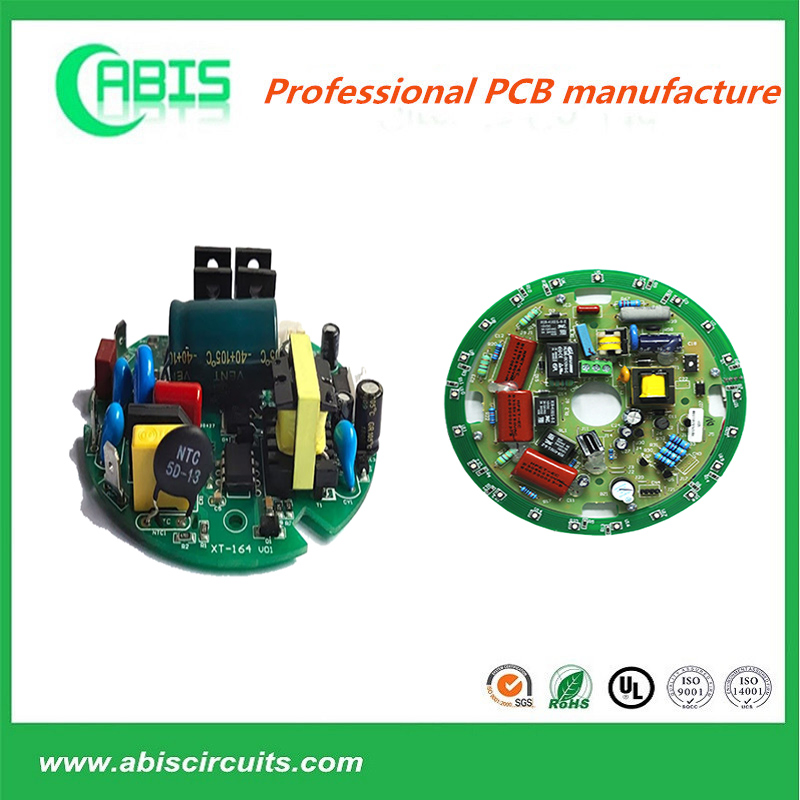

| SMT Assembly | Including BGA assembly, 0201 chips supported |
| Component Height | 0.2mm - 25mm |
| Min BGA Pitch | 0.25mm - 2.0mm |
| Max Board Size | 350mm * 550mm |
| Placement Precision | ±0.01mm |
| SMT Capacity | 80,000 points per day / 52 million per month |
We pursue 0% complaints through advanced inspection processes:
| Feature | Standard PCB | Aluminum PCB |
|---|---|---|
| Layers | 1 - 32 Layers | 1 - 2 Layers |
| Min Line Width/Space | 3mil / 3mil | 4mil / 4mil |
| Max Board Size | 1200mm * 600mm | 1200mm * 560mm |
| Copper Thickness | 0.5oz - 8oz | 1oz - 6oz |
| Category | Quickest | Normal |
|---|---|---|
| Double Sided | 24 Hours | 120 Hours |
| 4-8 Layers | 48-96 Hours | 172-212 Hours |
| 10+ Layers | 120 Hours+ | 268 Hours+ |
Complete and safe packaging solutions:
A: We typically provide a quote within 1 hour of receiving your inquiry. For urgent needs, please specify in your email.
A: Yes, we welcome small wholesalers and grow together. We care about every order, even a single piece.
A: Samples usually take 2-3 days. Mass production lead time depends on the quantity and design complexity.

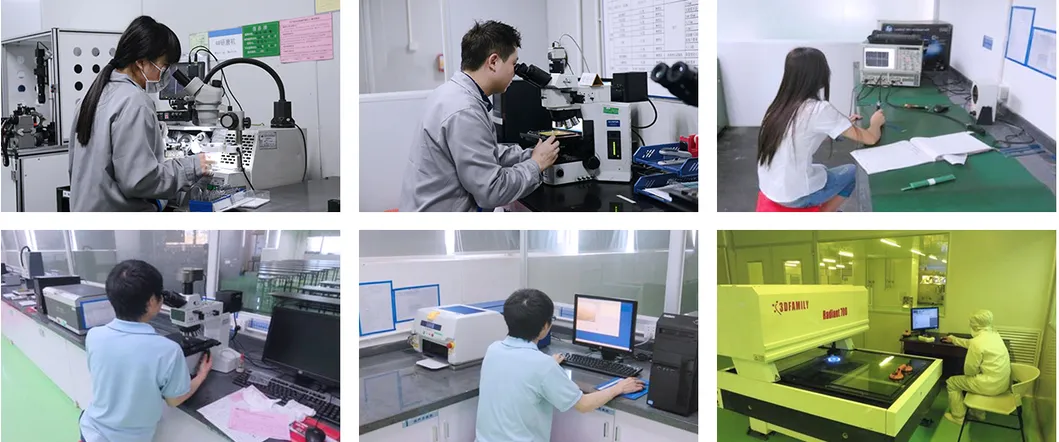

A: Absolutely. Every piece of PCB and PCBA undergoes 100% testing (AOI, ICT, or FCT) before shipment to ensure quality.
A: Yes, we have a professional team of drawing engineers to help design and create Gerber files for your projects.
A: Please provide complete Gerber files, BOM list, quantity, required turn time, material specs, and surface finish requirements.
