Basic Specifications
Layers
Multilayer (10 Layers)
Certification
RoHS, ISO, UL
Lead Time
8-10 Working Days
Production Capacity
10000PCS/Month
PCBA Technology & Features
PCBA 10 Layers Board for Hair Straight Machines SMT Circuit Board
- Professional Surface-mounting and Through-hole soldering Technology
- Various sizes like 1206, 0805, 0603 components SMT technology
- ICT (In Circuit Test) and FCT (Functional Circuit Test) technology
- PCB Assembly with UL, CE, FCC, RoHS Approval
- Nitrogen gas reflow soldering technology for SMT
- High density interconnected board placement technology capacity
PCB Manufacture Capability
| Item |
Manufacture Capability |
| Layers | 1-26 Layers |
| HDI | 2+N+2 |
| Material Types | Fr-4, Fr-5, High-Tg, Aluminum Based, Halogen Free, Isola, Rogers, etc. |
| Max. Panel Dimension | 1000mm * 1200mm |
| Outline Tolerance | ± 4mil (± 0.10mm) |
| Board Thickness | 0.2 - 6.0mm |
| Min. Track Width/Space | 3mil (0.075mm) |
| External Cu Thickness | 0.5 OZ - 10 OZ |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple |
| Testing | Flying probe, E-TEST, X-RAY Inspection, AOI |
Applications & Our Services
Main Applications:
- Consumer electronics
- Industrial control systems
- Medical instruments
- Fire service implements
Service Commitment:
- Reply enquiry within 2 working hours
- Customized design (OEM & ODM)
- Exclusive solutions by professional engineers
- Excellent after-sales service
Prototype Lead Time
| Layer Count |
General Time |
Quick Turn |
| 1-2 Layers | 4 days | 1 day |
| 4-6 Layers | 6 days | 2 days |
| 8-10 Layers | 8 days | 3 days |
| 12-16 Layers | 12 days | 4 days |
| 18-26 Layers | 14-16 days | 5-6 days |

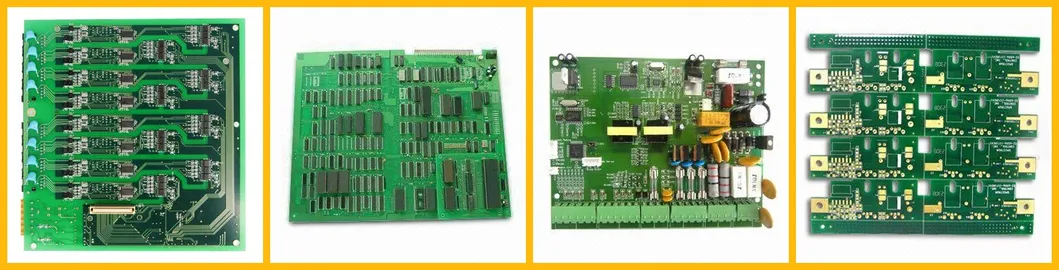

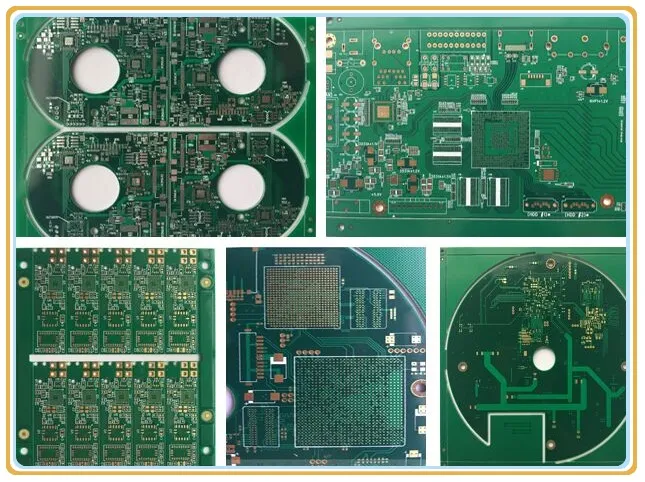

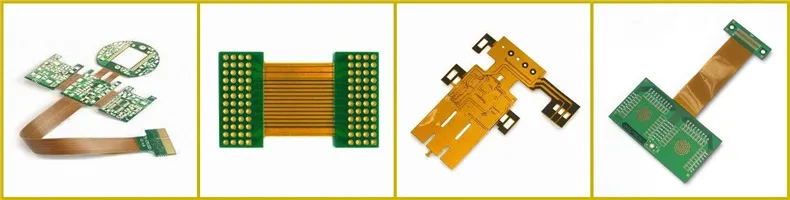

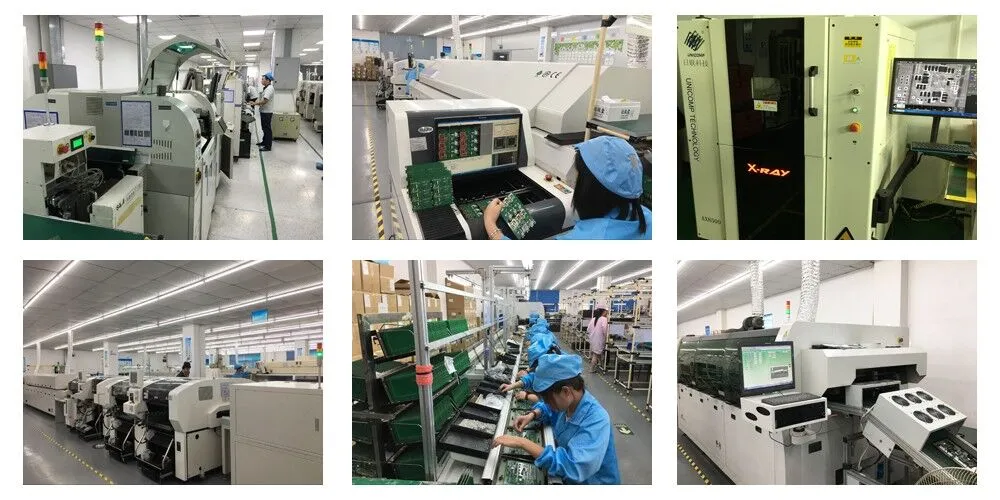

Product & Factory Display
❓ Frequently Asked Questions
What is your minimum order quantity (MOQ)?
We have no MOQ; 1 piece is acceptable for your testing and evaluation.
What files are required for PCB and PCBA production?
For PCB, Gerber files (Protel, Power PCB, PADS) are preferred. For PCBA, we need Gerber files and a complete BOM list.
Can you produce boards if I only have a sample and no files?
Yes, we can help you clone the PCB design based on your physical sample to work out the design files.
What information is needed for a fast quotation?
Please provide the base material, board thickness, copper thickness, surface treatment, color of solder mask/silkscreen, and quantity.
What are your standard delivery terms and lead times?
We typically use FOB terms. Delivery times range from 7 to 30 days depending on order quantity and customization requirements.
What testing methods do you use for quality assurance?
We utilize Flying Probe testing, E-TEST, X-RAY Inspection, and AOI (Automated Optical Inspection) to ensure high quality.
