Basic Specifications
Display Type
LED Video Display

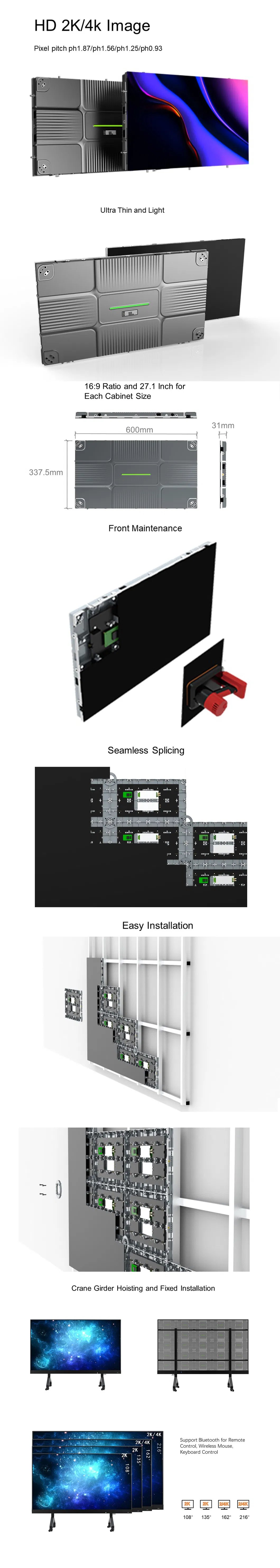

Product Description & Key Features
1Die-cast Aluminum cabinet: light (5.8kg/pc) and thin (33mm), fast heat dissipation.
2Direct connection from module to Hub card, cableless, simple and stable.
3Magnetic module with full front maintenance, saving installation space.
4Flexible design suitable for curved LED display applications.
5High refresh rate and gray color optimized for 16:9 ratio displays.
6Versatile installation: structure-free, hanging, or wall-mounted options.
Technical Specifications Comparison
| Feature |
XD1000-1.7 |
XD1000-1.9 |
XD1000-2.6 |
XD1000-2.9 |
XD1000-3.9 |
XD1000-4.8 |
| Pixel Pitch (mm) | 1.736 | 1.953 | 2.604 | 2.976 | 3.91 | 4.81 |
| LED Config | SMD1010 | SMD1010 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Density (dot/m²) | 331776 | 262144 | 147456 | 112896 | 65536 | 43264 |
| Brightness (CD/m²) | 600 | 600 | 800 | 800 | 800 | 800 |
| Refresh (Hz) | 3840 | 3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |

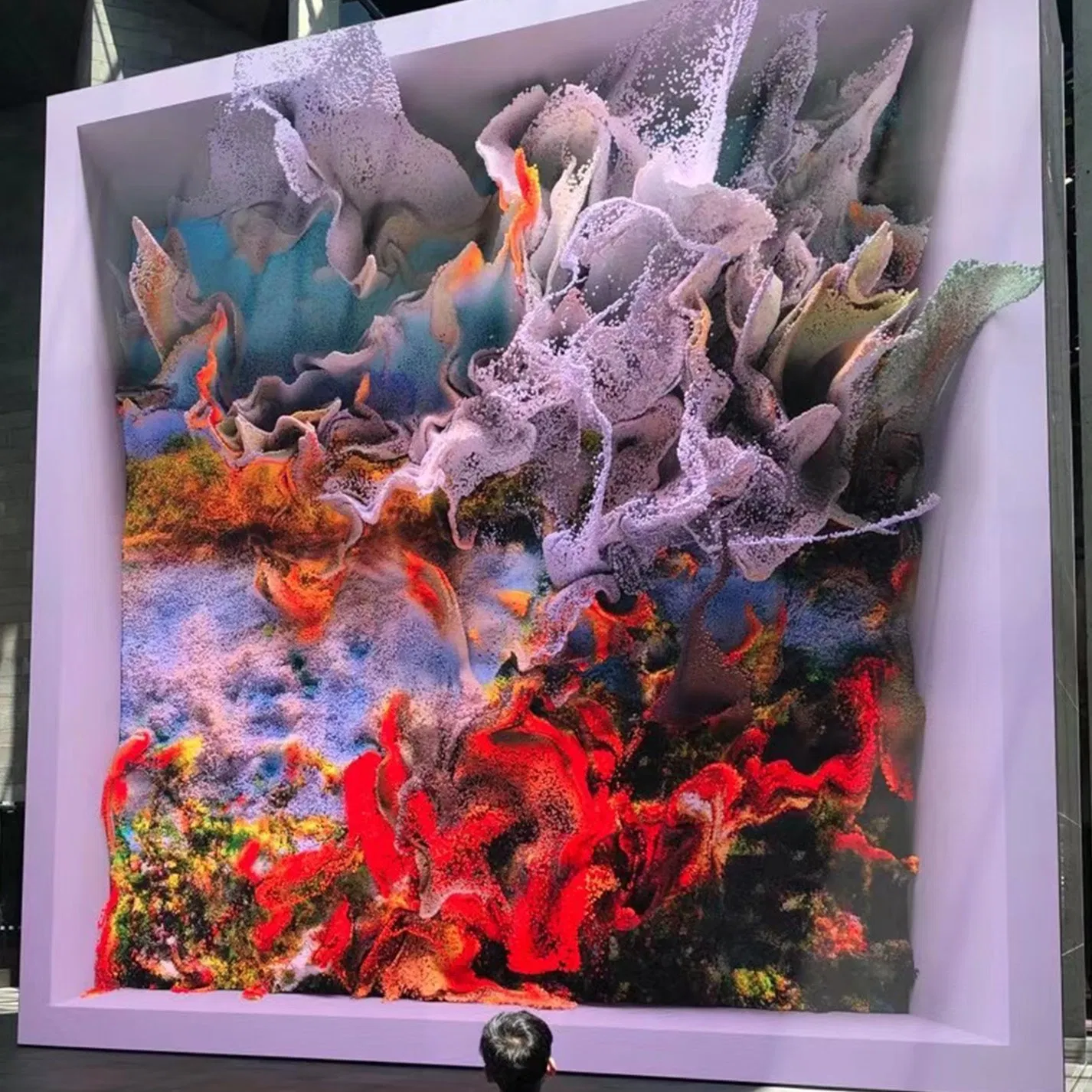

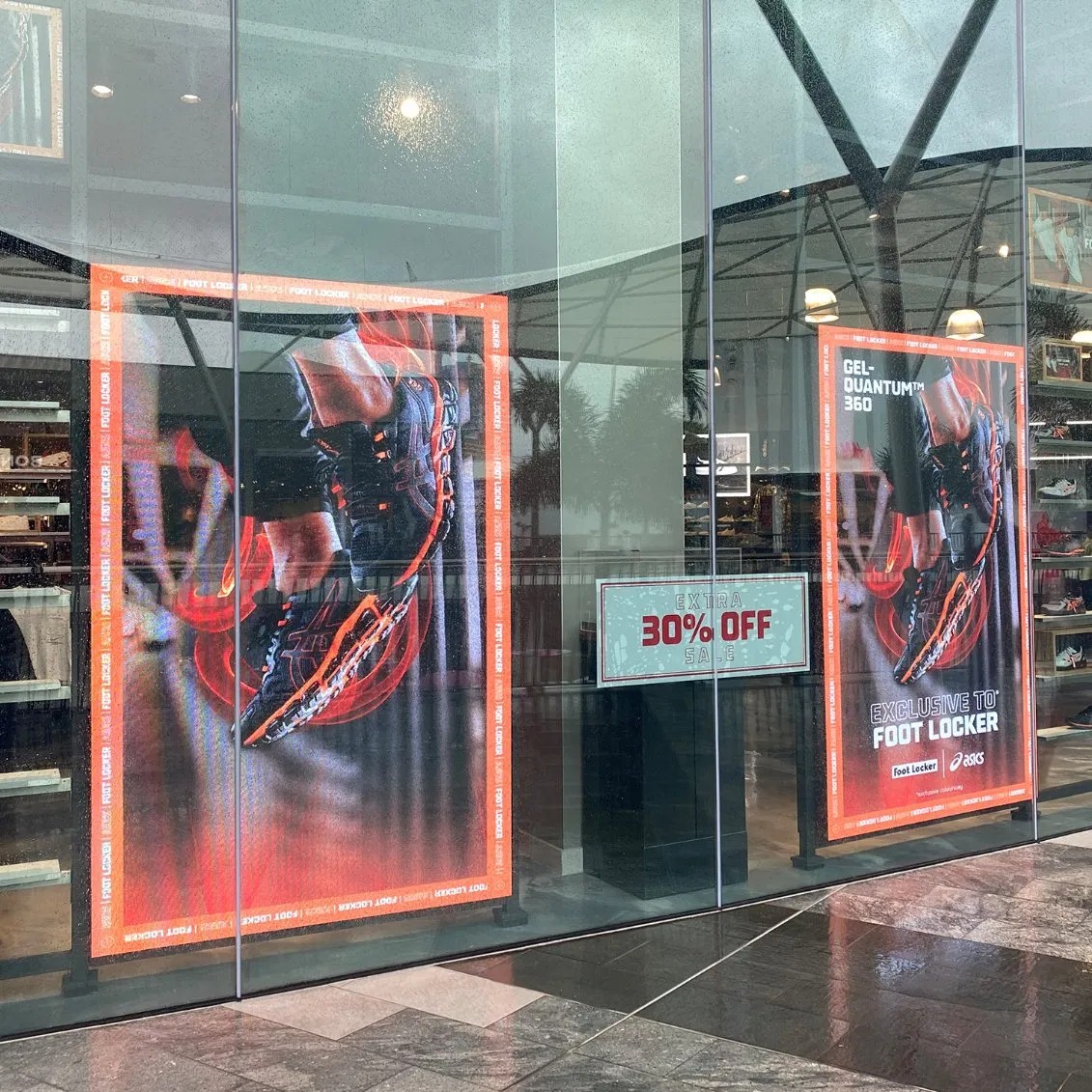

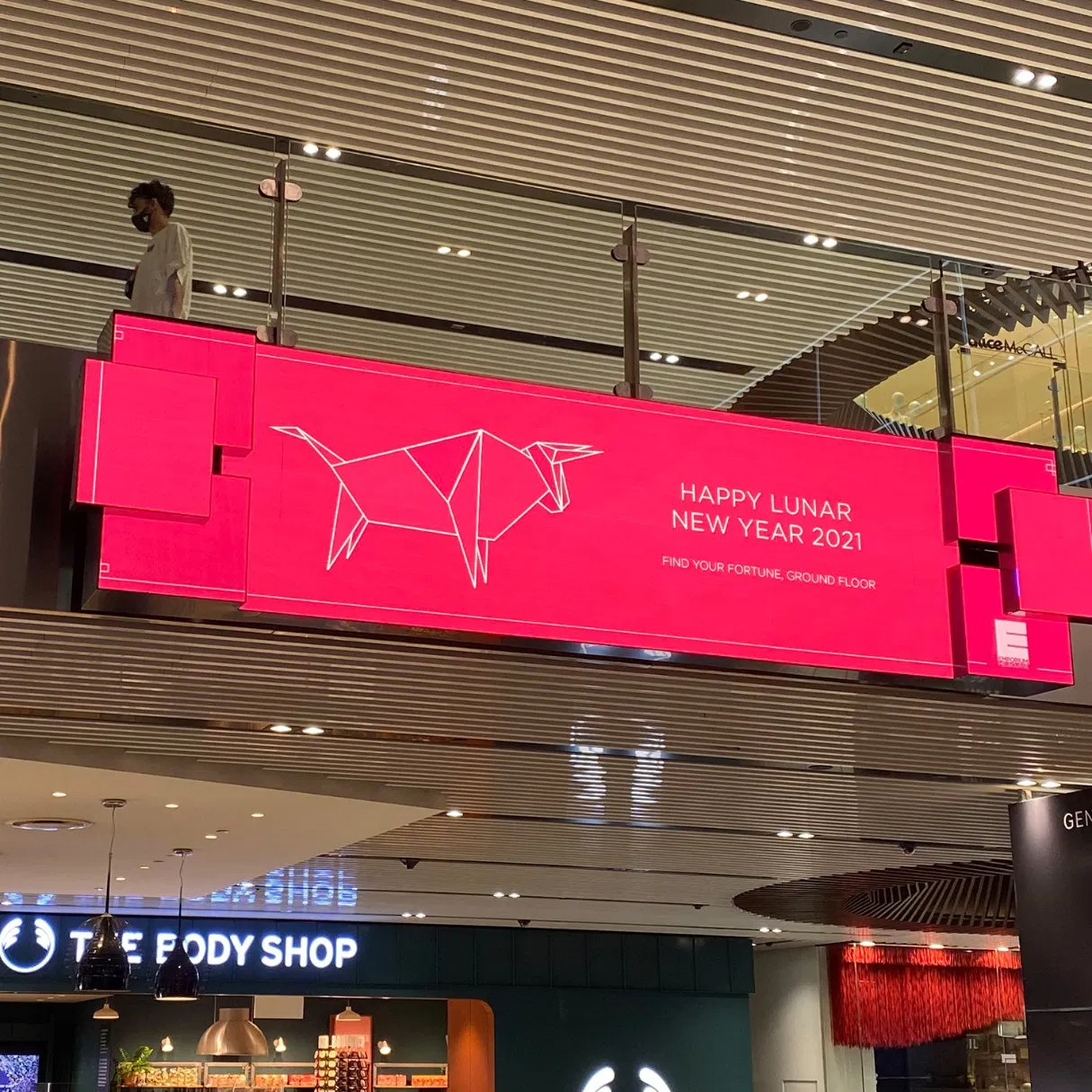

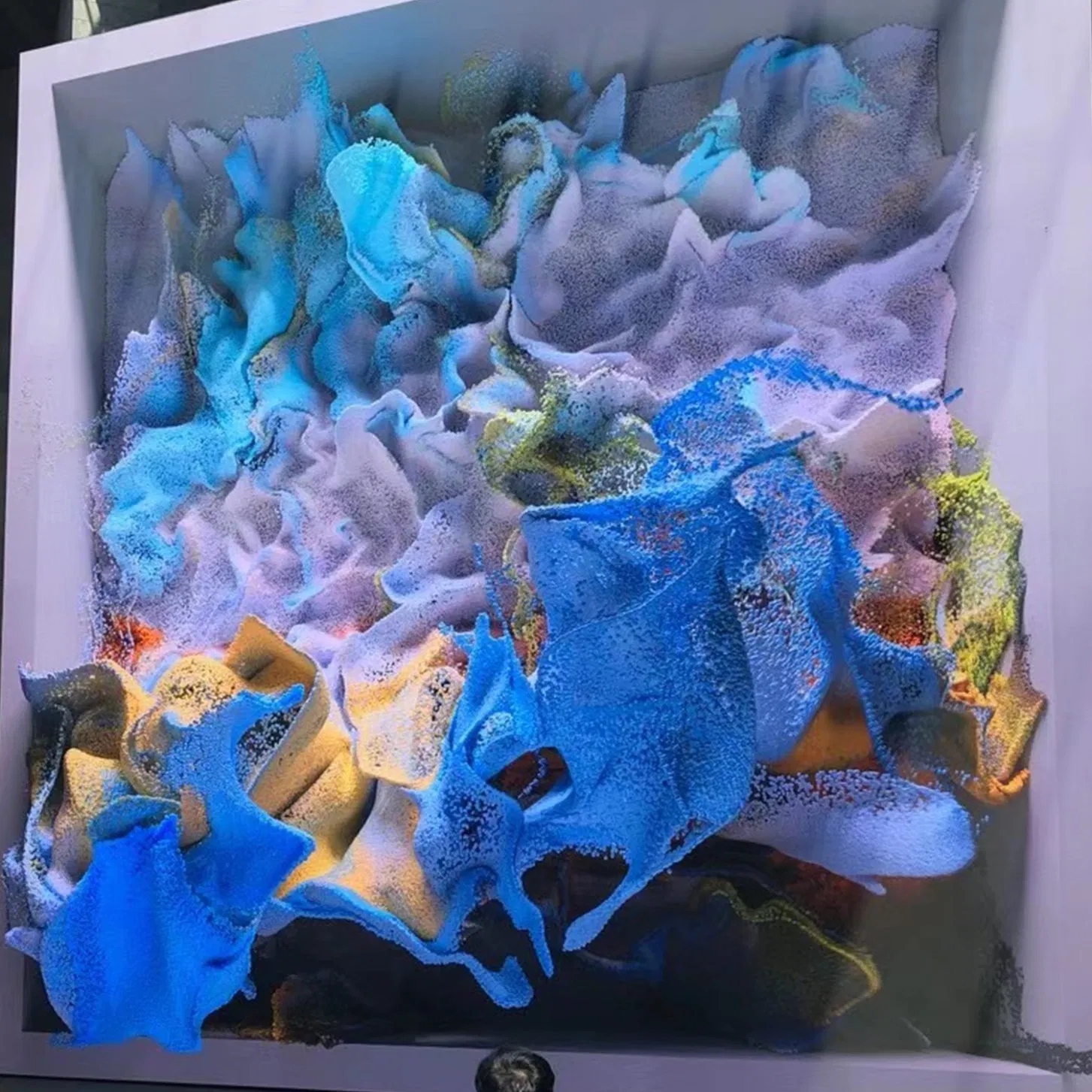

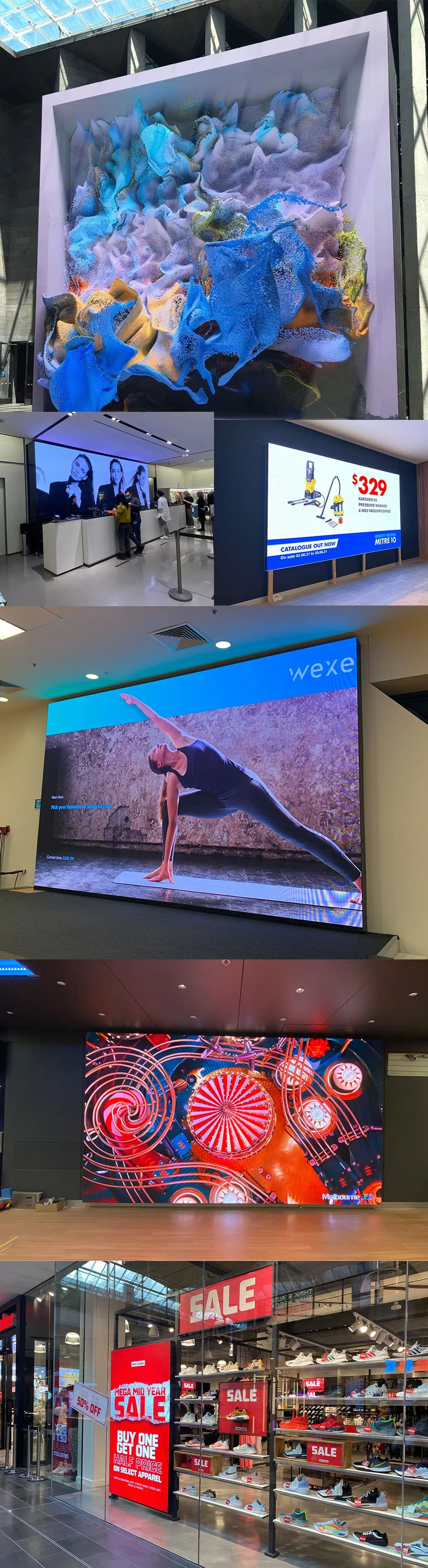

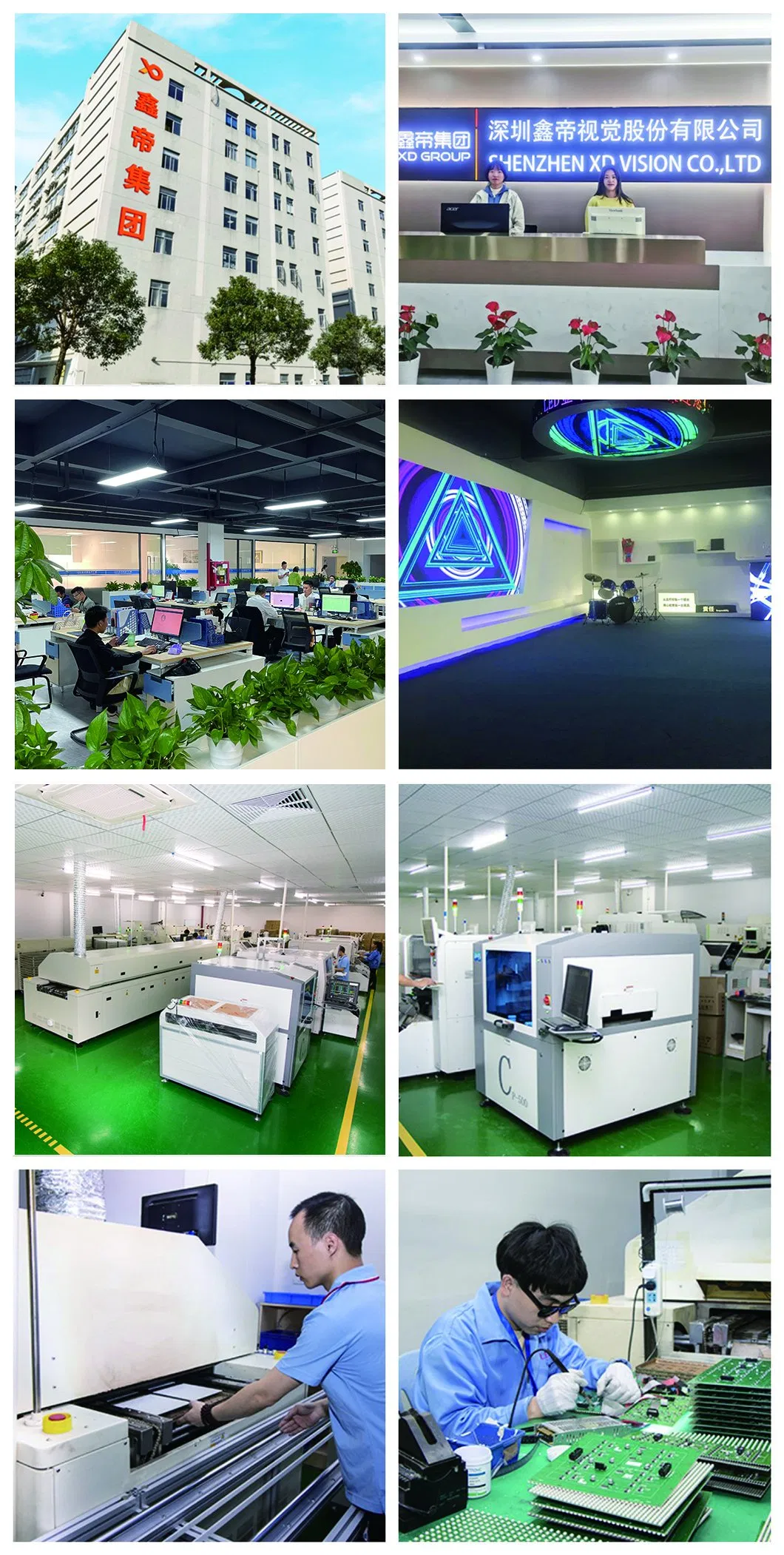

Factory Workshop & Project Cases

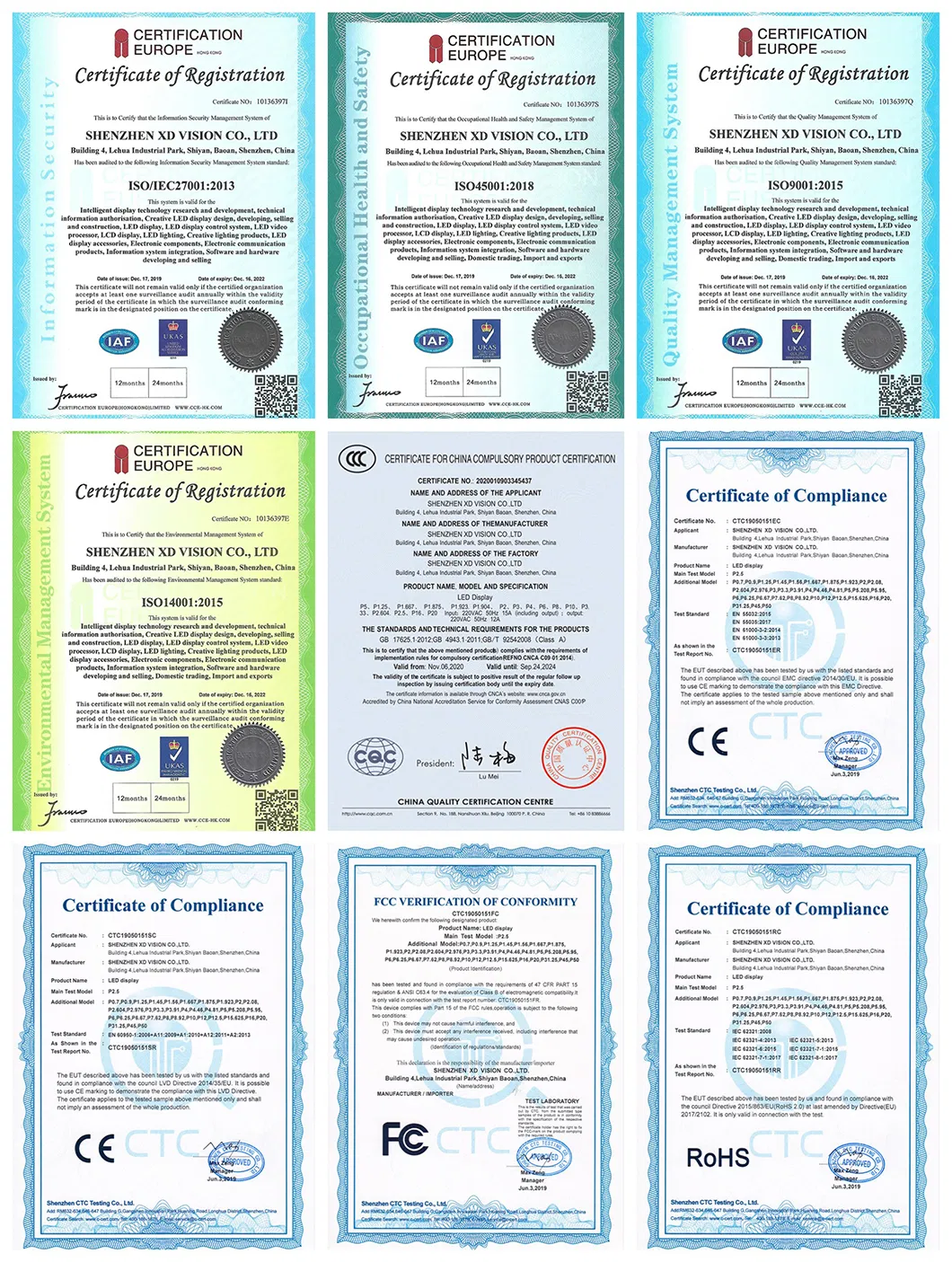

Certifications & Packaging
Frequently Asked Questions
Can I request a sample order for the LED display?
Yes, sample orders are available for quality verification purposes.
Is custom logo printing available on the products?
Certainly. We can print your custom logo design on the LED display products based on your requirements.
What is the standard warranty period?
We provide a comprehensive warranty for our LED display products to ensure long-term reliability.
Do you provide technical and installation training?
Yes, we offer full technical support including installation and user training for all our clients.
Can you handle custom shapes and creative designs?
Yes, we specialize in designing and manufacturing custom-shaped LED displays like circular, hexagonal, or flexible screens.
What trade terms do you support for shipping?
We accept various trade terms including CIF and CFA. Please provide your destination for an accurate freight and insurance quote.
