Professional Electronic PCB Layout &AMP

Customization:	Available
Type:	Rigid Circuit Board
Dielectric:	FR-4

📋

Basic Info

Model NO.

XJY-PCB 045

Material

Aluminum Covered Copper Foil Layer

Application

Consumer Electronics

Flame Retardant

V0

Mechanical Rigid

Rigid

Base Material

Fr4

Copper Thickness

1oz

Surface Finishing

Enig

Layer

1 to 18

Production Capacity

8000 Square Meters Per Month

🔬

Product Description

Professional PCB manufacturer with over 10 years of experience. Offering 1 to 24 Layer PCB services, ranging from production and components purchase to assembly and copy services. Products are widely used in communication apparatus, automobile electronics, medical devices, lighting systems, and consumer electronics.

✨ Quick Details

Certification: UL, RoHS, ISO9001: 2000
Board Thickness: 0.2MM-2.4MM
Min. Hole Size: 0.2MM
Surface Finishing: LF-HAL / Immersion gold plating
Quick lead time: 24 hours for 2-4 layer PCB

⚙️

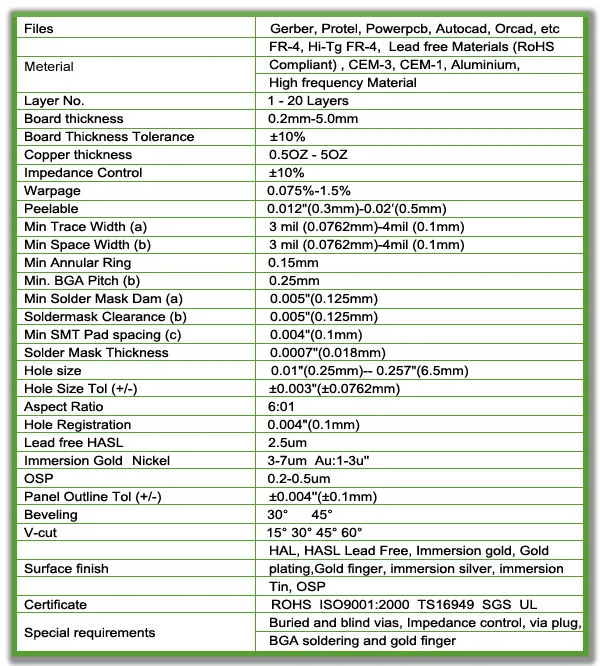

Technology Capability

Items	Single/Double-sided/Multilayer Board/FPC (1-24 Layer)
Base Materials	FR-4 (High TG 150°-170°), FR1, Aluminum, CEM-3, BT, 94v0
Surface Finish	ENIG, ImAg, ImSn, OSP, HASL, Plating gold
Max Board Size	640mm x 1100mm
Min Conductor Width/Spacing	0.01mm / 0.01mm

🛡️

Testing & Quality Assurance

Multiple quality assuring procedures are performed before shipping:

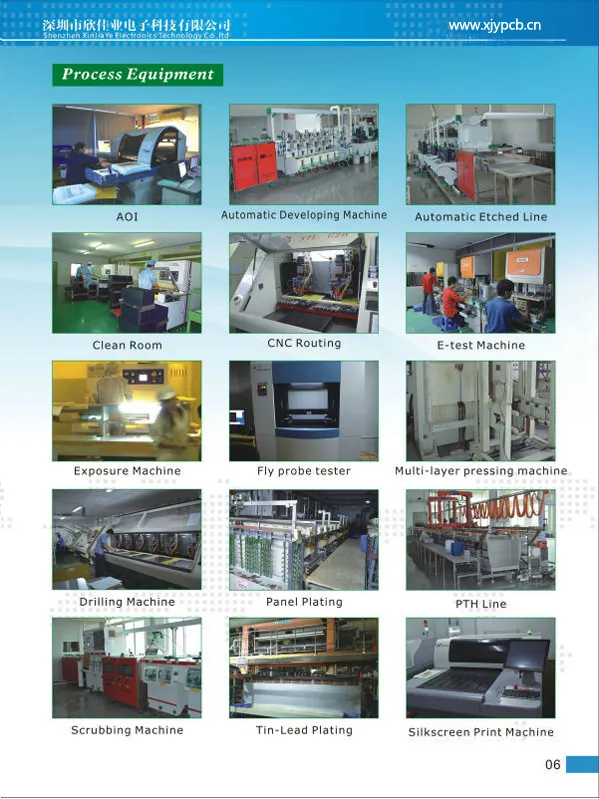

Visual Inspection & AOI (Automated Optical Inspection)
Flying probe & Bed of nails testing
Impedance control & Solder-ability detection
Digital metallographic microscope analysis

❓

Frequently Asked Questions

Q1: What is the typical lead time for PCB samples? For standard 2-4 layer PCBs, we can provide a quick lead time of 24 hours. General sample production typically takes 3-4 days.

Q2: What base materials do you support? We work with a variety of materials including FR-4 (High TG 150°-170°), FR1, Aluminum, CEM-3, BT, and 94v0.

Q3: Do you offer assembly services? Yes, we provide full PCB assembly services including SMT (Surface-mounting) and Through-hole soldering technology with UL, CE, and RoHS approvals.

Q4: What information is required for a quotation? To provide an accurate quote, we need the Gerber file, base material type, board thickness, copper thickness, surface treatment, and quantity.

Q5: What are your shipping and payment methods? We ship via DHL, UPS, FedEx, TNT, or EMS. Payment can be made through PayPal, T/T, or West Union.

Q6: What quality testing do you perform? Every board undergoes rigorous testing including AOI, visual inspection, flying probe, and impedance control to ensure high reliability.
