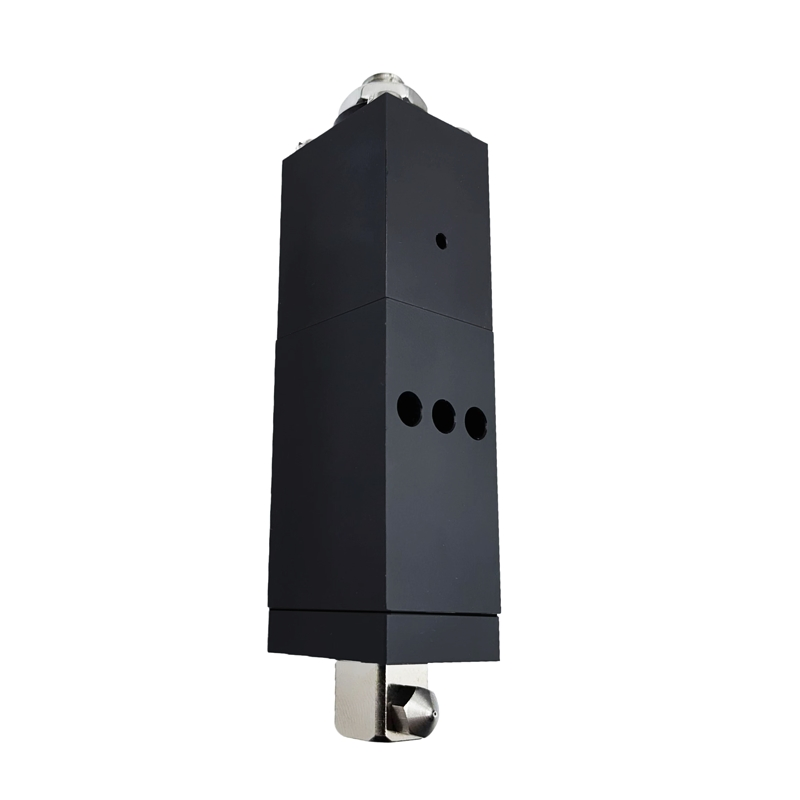

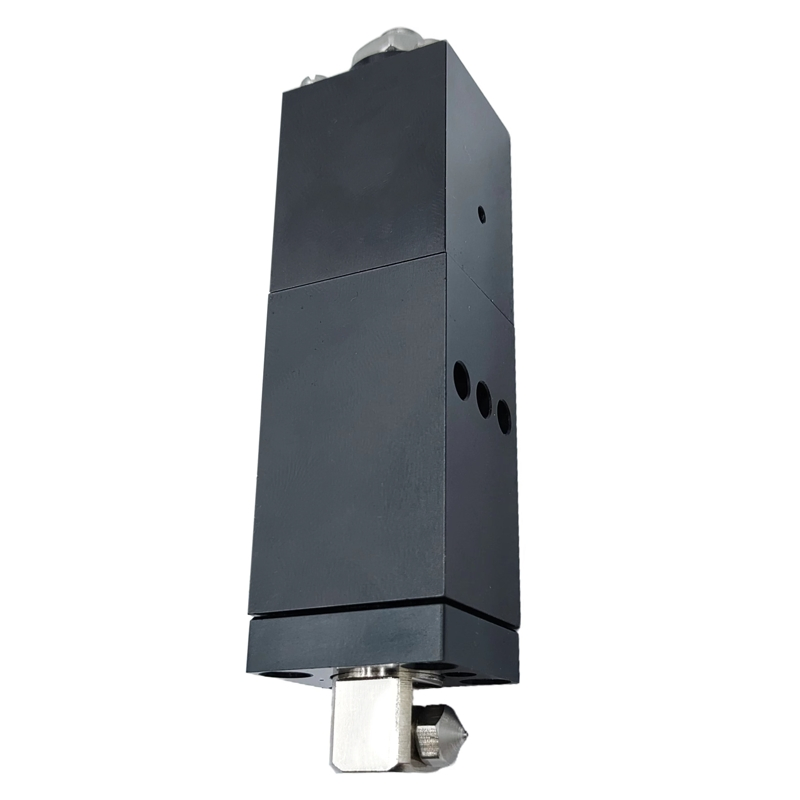

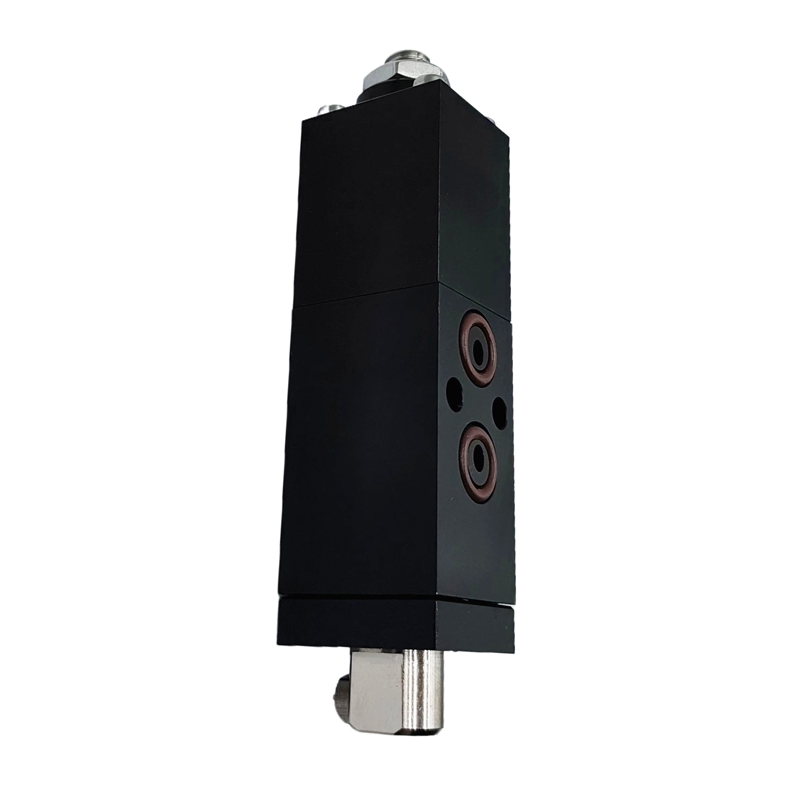

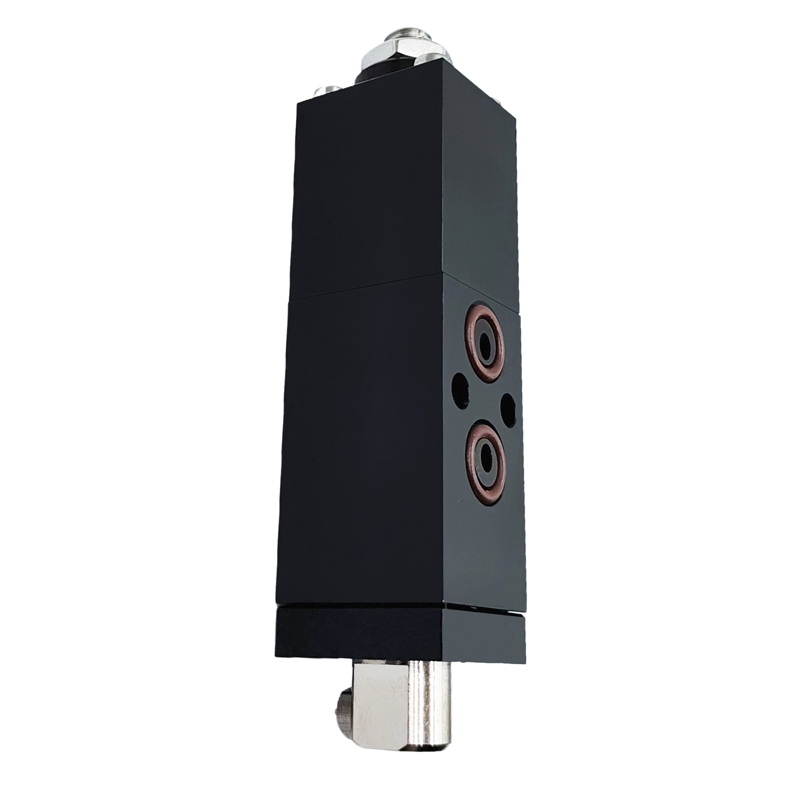

Stainless Steel Hot Melt Gluing Gun Dispenser Module 100002

Customization:	Available
Type:	Corded Hot Melt Glue Gun
Power Source:	Pneumatic

📌 Basic Information

Model NO.

100002

Material

Stainless Steel

Voltage

220V / Customize

Rated Power

180W

Gluing Method

Spray Strip, Spray Point

Warranty

1 Year

Single Gross Weight

4.000kg

Application

Packaging Industry

🔍 Product Description

The hot melt glue dispensing gun is a high-precision tool that controls the hot melt adhesive switch by driving the ejector needle valve using compressed air. When the thimble moves downward, the valve closes instantly, ensuring a clean break without tailing or drawing phenomena.

🚀 Scope of Application:

Suitable for self-adhesive labels, sanitary products, medical dressings, packaging, bookbinding, automotive assembly, and furniture production. It is especially effective for automatic packaging lines such as milk sealing, carton folding, and biscuit packaging.

Specification	Details
Operating Temperature	0-300℃
Installation Type	Internal thread connection
Valve Nozzle Selection	Adjustable (Single/Double/Triple hole)
Switch Frequency	Up to 1200 times per minute

💎 Equipment Features

✅ No Drawing: Advanced heat conduction module eliminates adhesive stringing and carbide buildup.
✅ Hard Alloy Nozzle: Inlaid hard alloy steel core improves life span and ensures straight-line injection.
✅ Even Dispensing: Fluid mechanics design ensures uniform spray amount across multiple gun combinations.
✅ Zero Leakage: High-precision mechanical seal coordination eliminates glue leakage.

🖼️ Product Showcase

⚙️ Technical Details & Production

❓ Frequently Asked Questions

Q1: Does this glue gun prevent "stringing" or drawing?

Yes, the design utilizes a heat conduction module and thermodynamic theory to completely eliminate the drawing phenomenon during glue spraying.

Q2: What materials is the nozzle made of?

The dispensing head is inlaid with a hard alloy steel core to ensure a long service life and straight-line accuracy.

Q3: Can the nozzle be customized for different spray patterns?

Yes, you can select from single hole straight nozzles, double/triple hole angle nozzles, and 45° or 90° side nozzles.

Q4: What is the maximum operating temperature?

The equipment is designed to operate safely and efficiently within a temperature range of 0 to 300°C.

Q5: Is this suitable for high-speed production lines?

Absolutely. With a straight-through pilot switch design, it can achieve a switching frequency of up to 1200 times per minute using a standard solenoid valve.

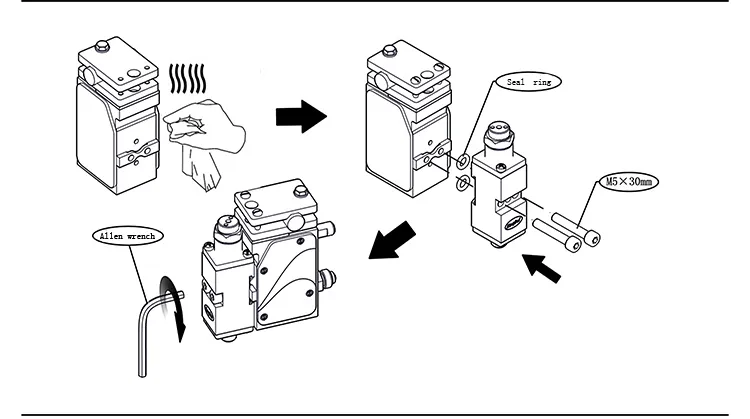

Q6: What safety precautions should be taken during installation?

The melter must be turned off during installation, and protective gloves should always be worn to avoid high-temperature burns.
