Technical Specifications
Network Scanning
Support Network
Certification
ISO, EEC, CE
Basic Accuracy
up to 0.04 mm
Volumetric Accuracy
up to 0.04 mm + 0.06 mm/M
Scanning Speed
up to 3,300,000 Points/S
Output Formats
*.Obj, *.Stl, *Ply, *.Asc, *.Mk2, *.TXT
3D Printing Support
Supports .Stl, .Obj and More
Certifications
CE-EMC, FCC, RoHS, IEC 60825
Specification
215 mm × 73 mm × 53 mm
Product Description
The 3DeVOK MT is a professional and versatile 3D scanner that stands out for its exceptional performance. Based on industrial-grade 3D scanning technology, it incorporates both lasers and speckles to offer you a magic tool. With professional scanning software, flexible parameter settings, intuitive interaction, and reliable performance, it significantly enhances work efficiency. It is an excellent solution for scanning objects of almost any kind, making it ideal for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, research, education and more.
★ Key Features
- Efficient scanning with 34 blue laser lines
- Marker-free scanning with laser modes
- Smart combination of large-area infrared speckle and partial fine scanning
- Easy scanning for black and reflective objects without spray
- Advanced hybrid alignment and invisible light scanning

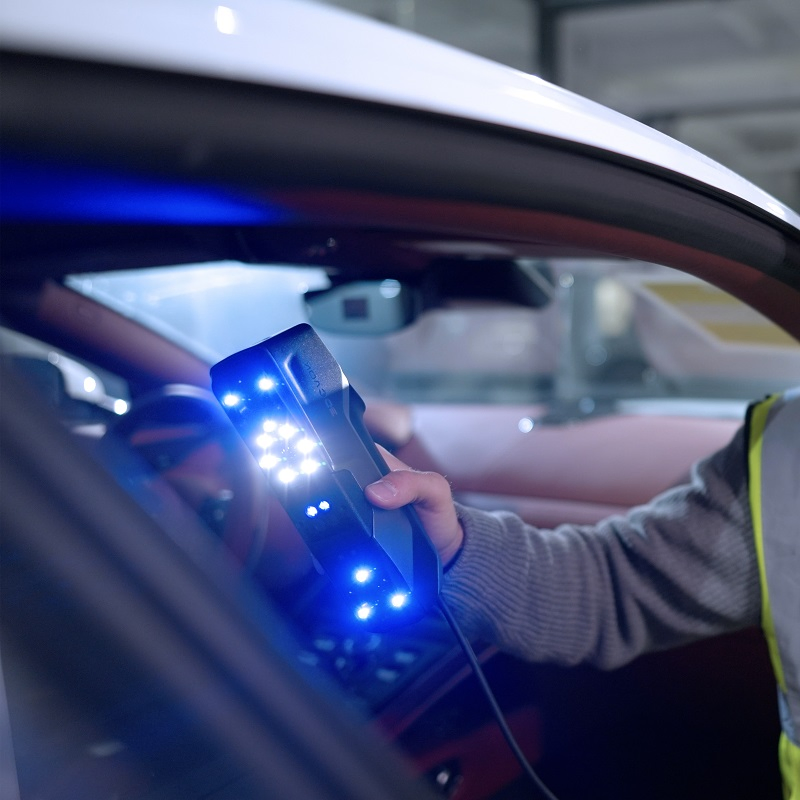

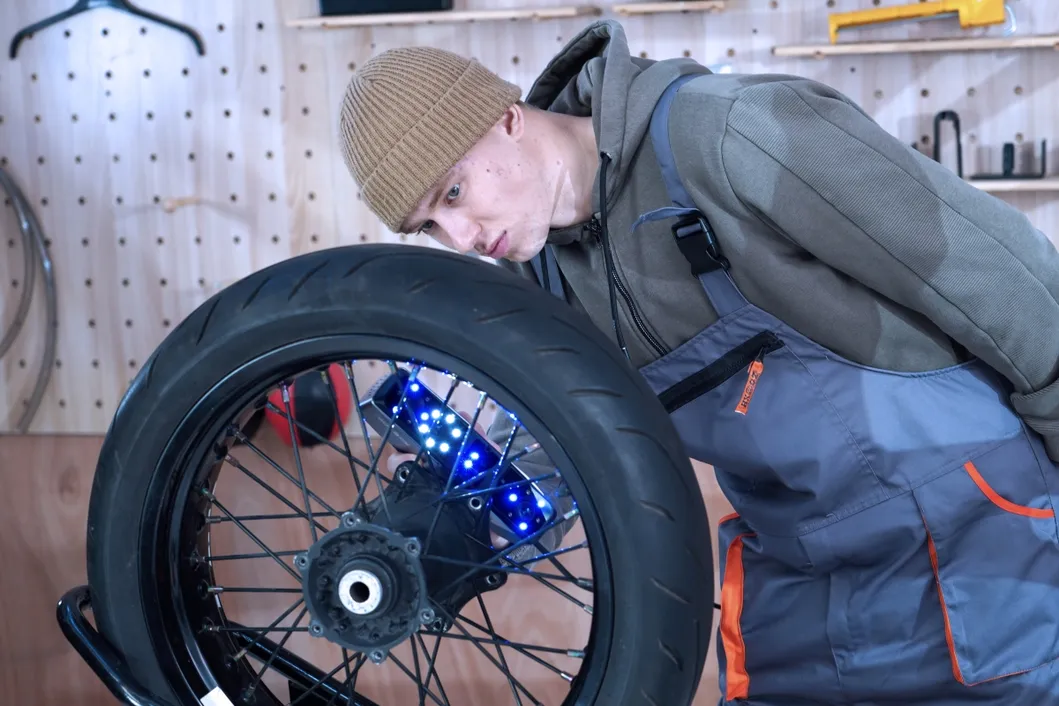

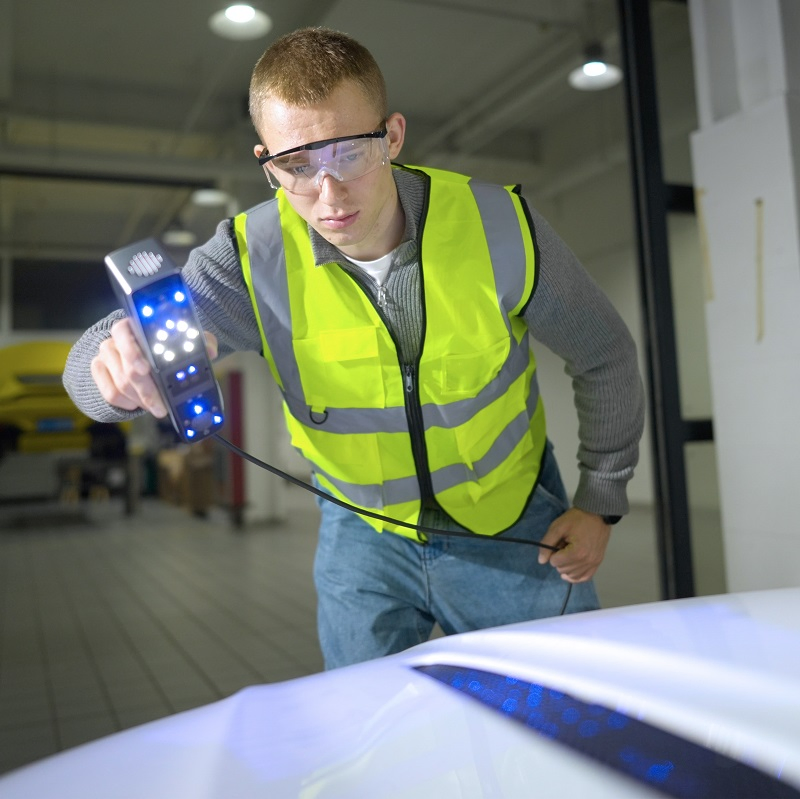

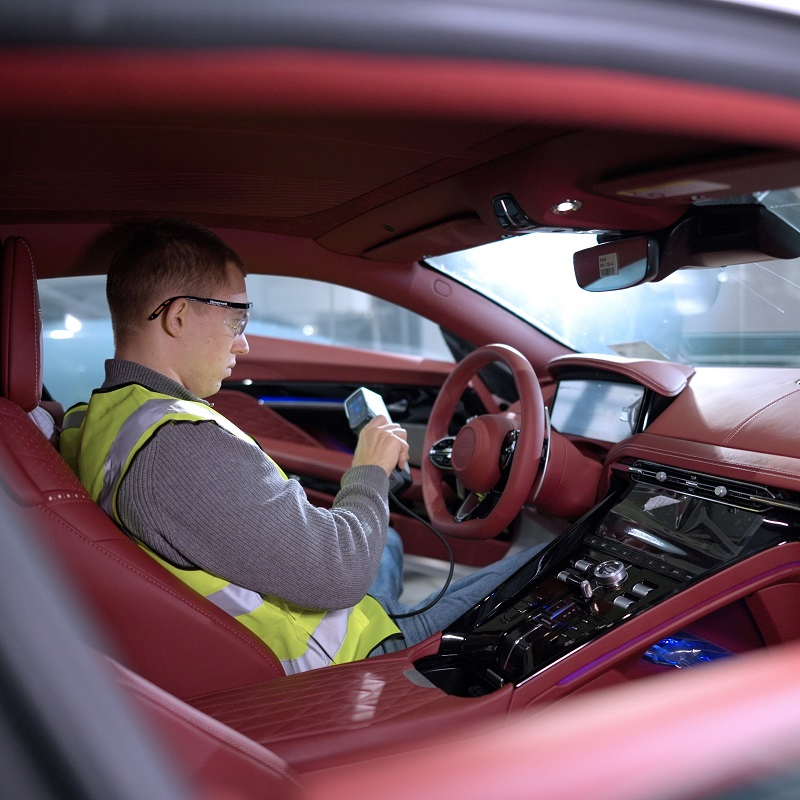

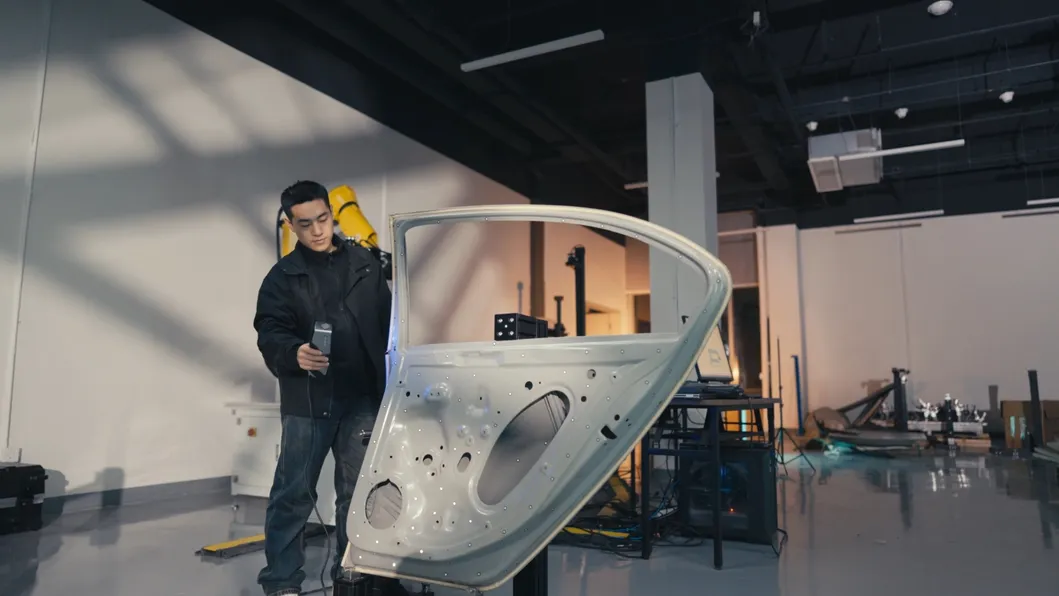

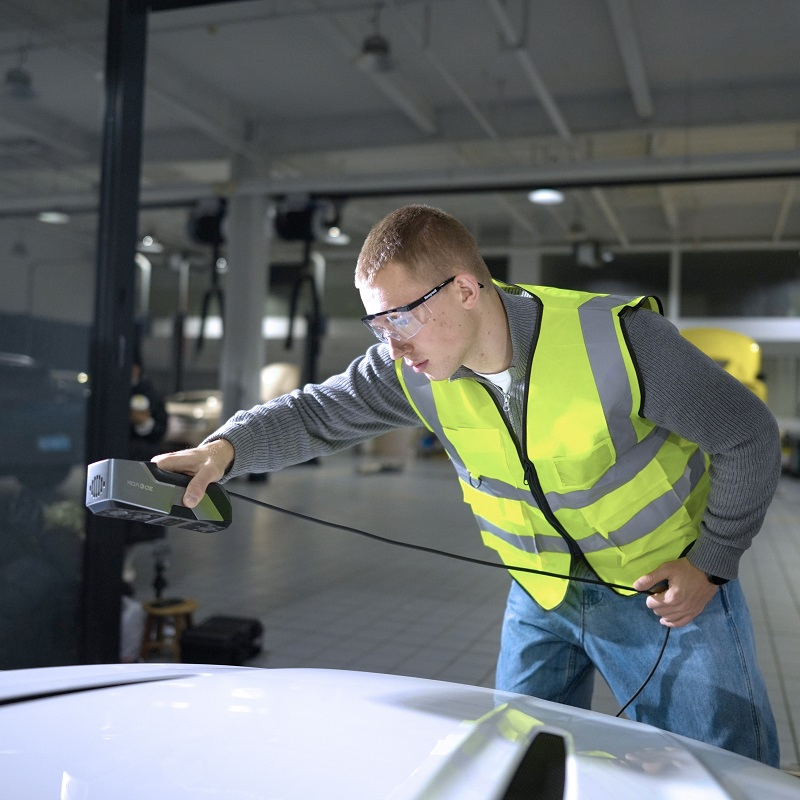

Industrial & Automotive Applications
Marker Alignment with Multi-Line Laser System
- High Data Quality: Accuracy reaching 0.04 mm, resolution up to 0.05 mm
- Fast Scanning: Frame rates up to 70 FPS
- Real-time Scanning: New real-time mesh display algorithm
- Recommended Size: 0.05 - 5 meters

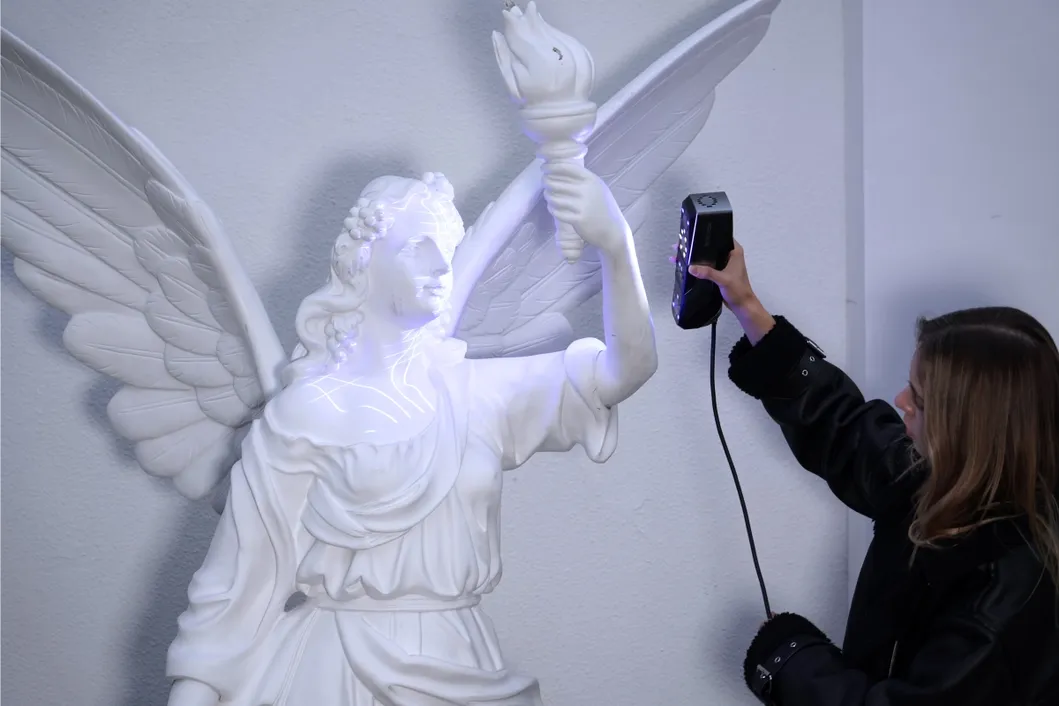

Art Sculptures & Cultural Relics
Hybrid Alignment Technology
- Marker-free Scanning: Direct scanning of objects with rich textures
- Fine Details: Resolution up to 0.1 mm
- Stable Adaptability: Smooth data acquisition in direct sunlight

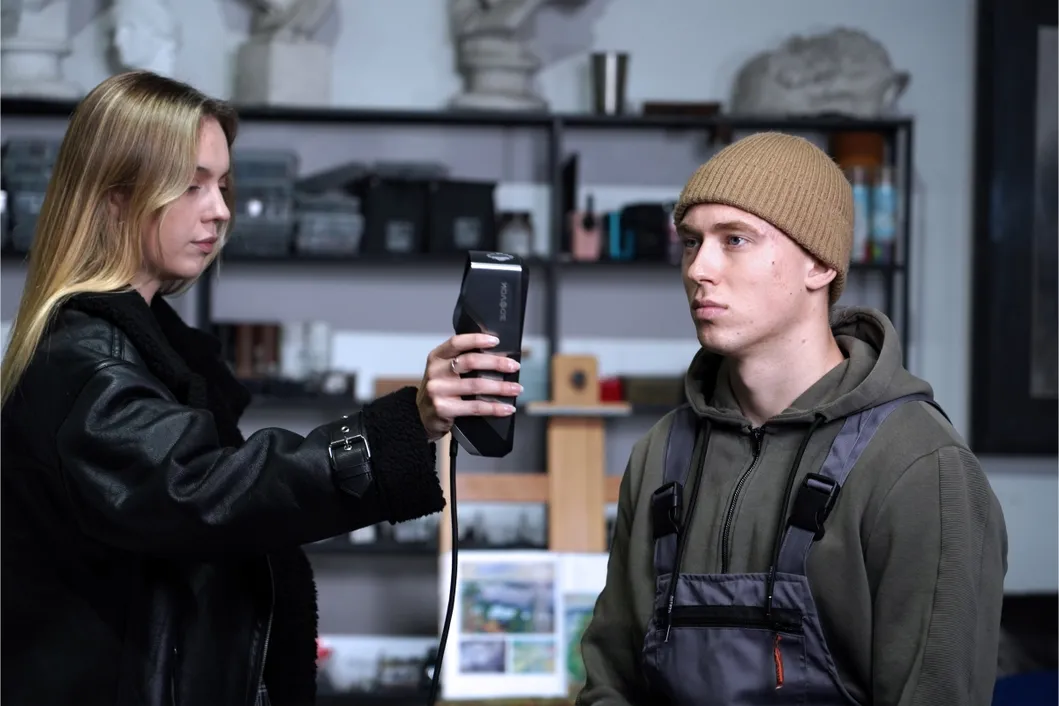

Full-Body & Large Object Scanning
Infrared Speckle & Safety
- Human Body Mode: Supports no-light scanning and hair capture
- Eye-Safety: Class I laser compliant (IEC 60825)
- Large Field of View: Maximum scanning area up to 1,100 mm × 1,000 mm
- Wide Range: Seamless switching between large-area and partial fine scanning
Frequently Asked Questions
Q1: What is the highest accuracy the 3DeVOK MT can achieve?
A: The scanner provides professional industrial-grade accuracy of up to 0.04 mm, ensuring precise data for engineering and quality control.
Q2: Can it scan black or highly reflective surfaces?
A: Yes, thanks to its 34 blue laser lines, it can easily capture dark, black, and reflective materials without the need for scanning spray.
Q3: Is the 3DeVOK MT safe for scanning people?
A: Absolutely. It uses a Class I laser which is eye-safe and compliant with IEC 60825 standards, making it perfect for medical and artistic body scanning.
Q4: What file formats can I export?
A: The system supports all mainstream formats including .STL, .OBJ, .PLY, .ASC, and .TXT, ensuring compatibility with CAD and 3D printing software.
Q5: Does it require markers for every scan?
A: No. While it supports marker alignment for high precision, it also features marker-free scanning modes for objects with rich geometric features or textures.
Q6: Can it be used outdoors?
A: Yes, the 3DeVOK MT is designed with stable lighting adaptability, allowing for efficient data acquisition even in outdoor conditions or direct sunlight.
