Customization: Available
Type: Balancing Machine
Sensor: 0.5, 1, 2, 5, 10, 20, 30, 50, 100kg
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CYZH-15
Force Resolution
0.01kg
Deformation Resolution
0.001mm
Test Speed
1-1000mm/Min
Stroke
300 mm
Accuracy Grade
0.5
Control
Computer Control
Power Source
AC220V
🔍 Product Description

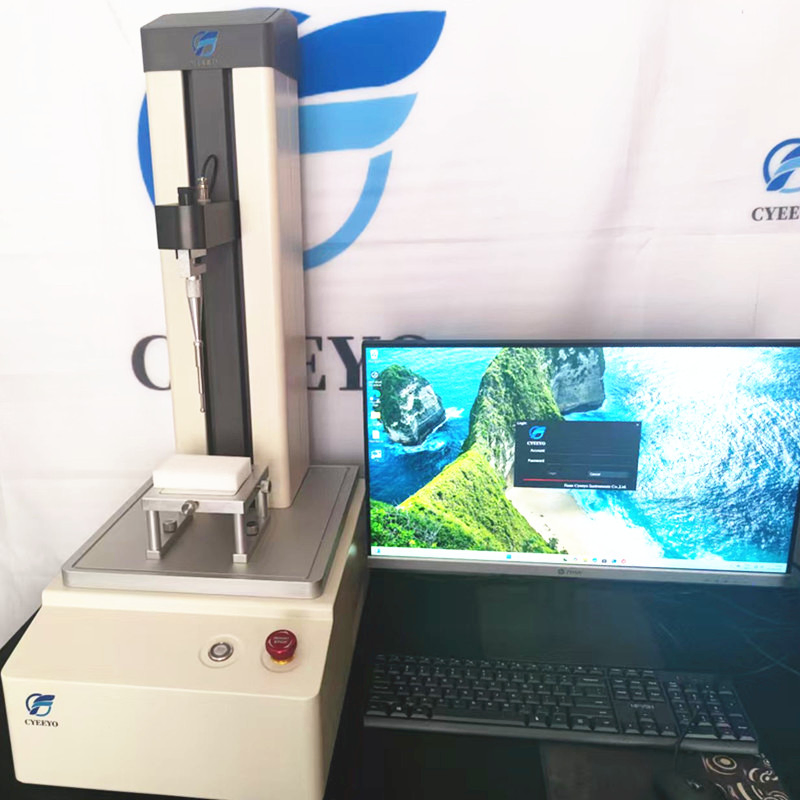

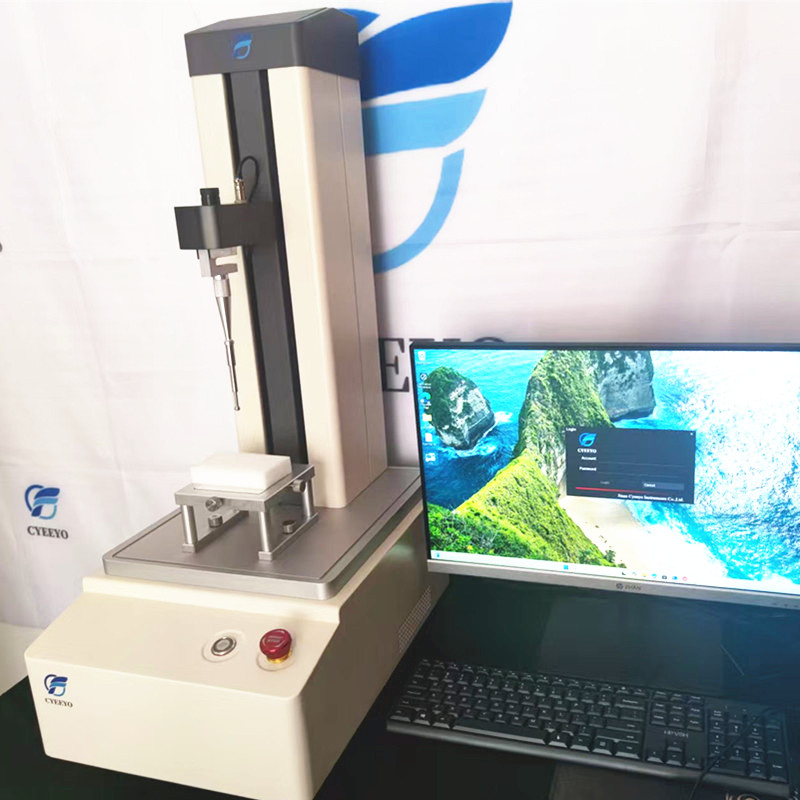

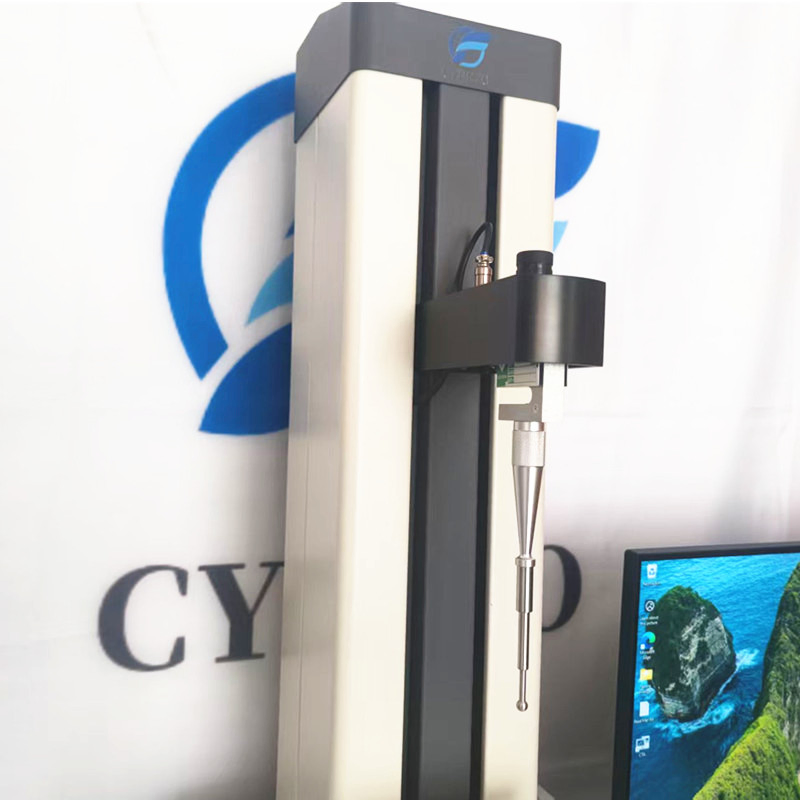

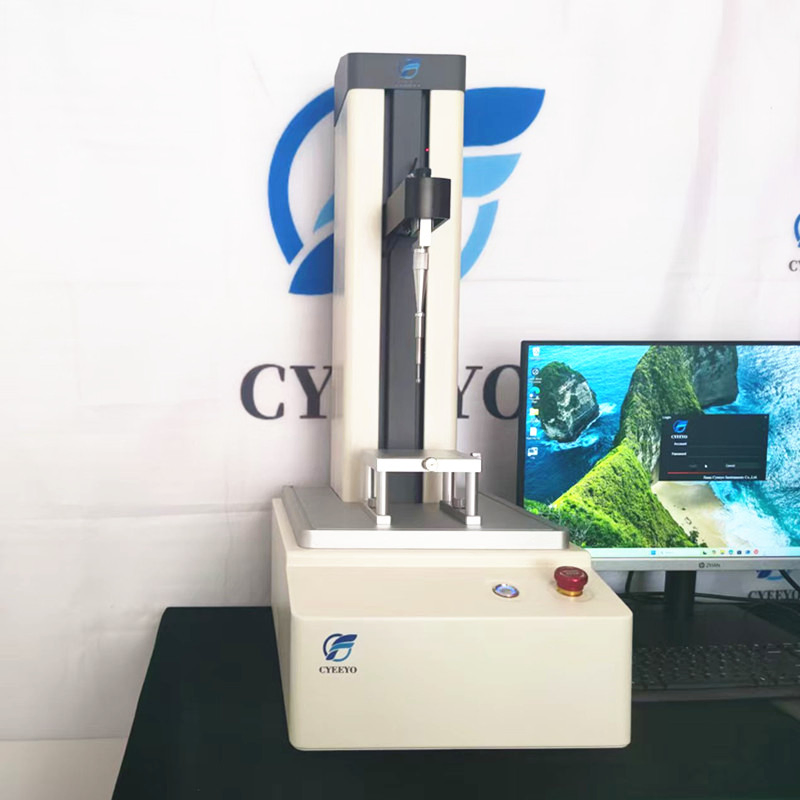

Texture Analyzer Research Model Aacc Aocc

The Texture Analyzer is a powerful professional-grade instrument designed for precise physical analysis. With over ten years of innovation in load force and deformation displacement technology, it ensures high reliability and stability in measurement.

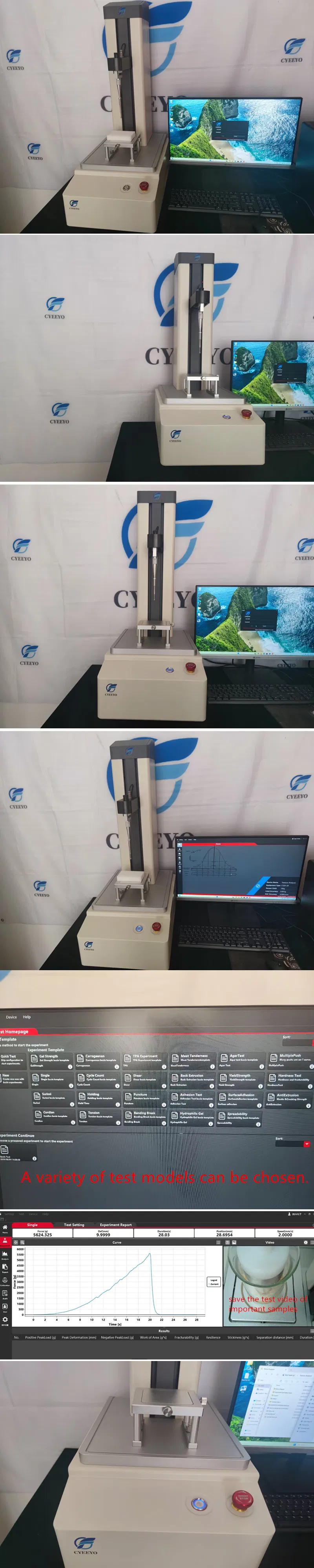

Texture Analyzer 1

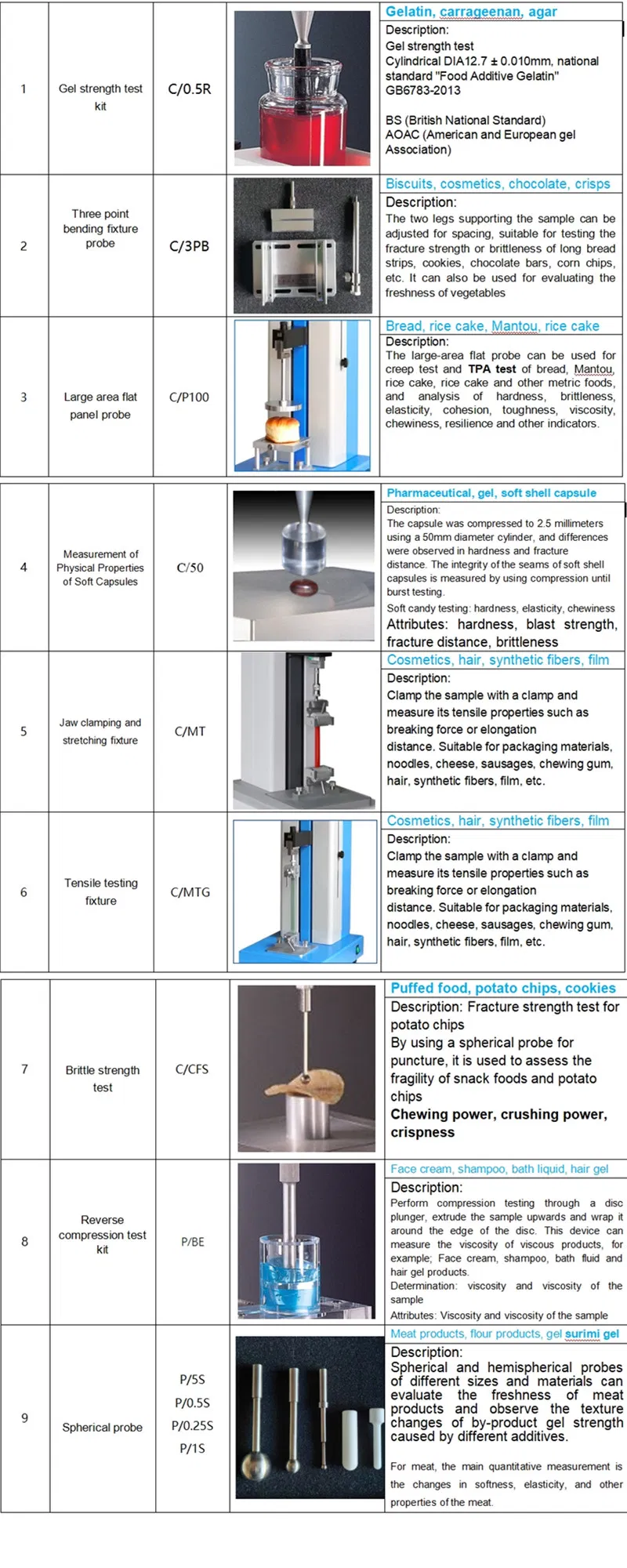

Texture Analyzer 2
Key Features:
  • 8-inch high-definition capacitive touch screen for standalone operation.
  • Hierarchical authority management (User name + Password).
  • Load force range: 0~20 kg with 0.01% detection accuracy.
  • Comprehensive software for curve analysis: force~time, force~distance, and distance~time.

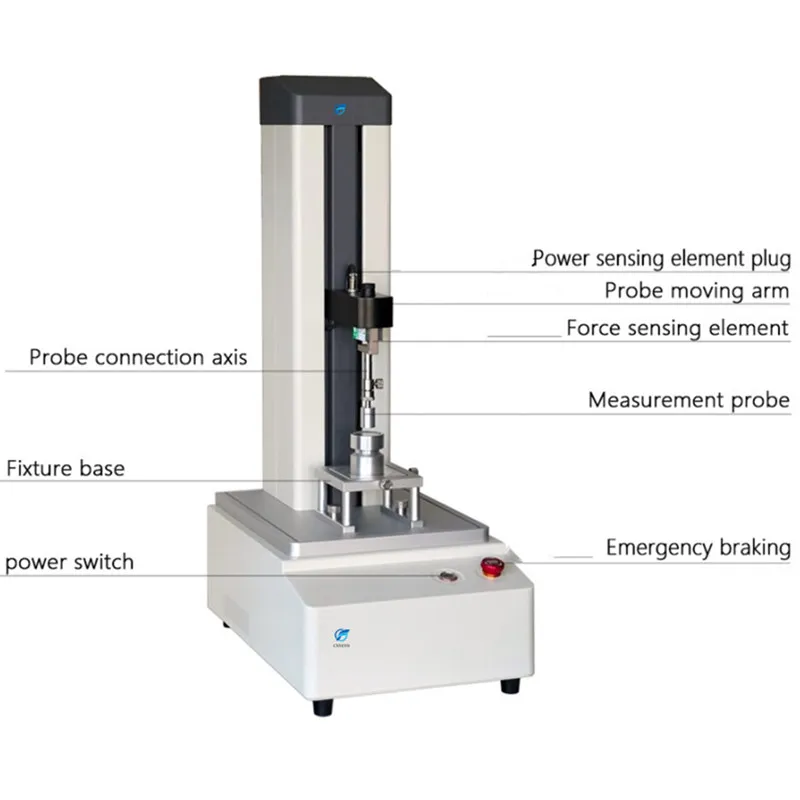

Texture Analyzer 3

Technical Applications

Applicable for physical analysis of food, pharmaceuticals, dairy, cosmetics, and more. Quantifiable properties include: hardness, brittleness, tenderness, viscosity, elasticity, toughness, and tensile strength.

📦 Packaging & Shipping
Package Size
86.00cm * 76.00cm * 89.00cm
Package Gross Weight
89.000kg
Transport Package
Carton
Shipping Info
⭐ Compliance & Standards

Our equipment complies with global standards including: Chinese Pharmacopoeia (2020), GB6783-2013 (Food Additive Gelatin), AACC 74-09 (Bread Hardness), and AOAC standards.

Advantages
Quality Standards
❓ FAQ
1. What materials can the CY-15 Texture Analyzer test?
It is suitable for food, pharmaceutical, dairy, meat products, cosmetics, gel, candy, fruit and vegetables, and more.
2. Does the instrument require a computer to operate?
No, the CY-15 can independently and quickly complete testing via its 8-inch high-definition touch screen, though it can also be connected to a computer for advanced analysis.
3. What is the accuracy of the load detection?
The load detection accuracy is better than 0.01%, with an analytical accuracy of 0.001g.
4. What test modes are available in the software?
It provides over ten methods including single compression, cyclic test, relaxation, creep, full texture (TPA), tensile, bending, and shear tests.
5. How is the data protected?
The system provides hierarchical authority management and automatic audit tracking records protected by the system database.
6. What safety features are included?
It includes emergency braking, upper and lower limit control, overload protection for the force sensing unit, and data encryption.
