Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
LS-T001
Display
Digital
Weight
0-100Kg
Force Sensor Capacity
25 Kg
Force Resolution
0.001 G ~ 0.0001 G
Force Accuracy Error
≤ ±0.01%
Testing Speed
0.001~40 mm/S
Speed Error
≤1%
Origin
China
HS Code
9024800000
📊 Product Description

ASTM D882 Texture Analyzer Chemicals Texture Analytical Instrument

✨ Key Advantages

➤Light touch keyboard for auxiliary offline control.
➤Interchangeable force sensors (0.001g to 0.0001g resolution) for various sample types.

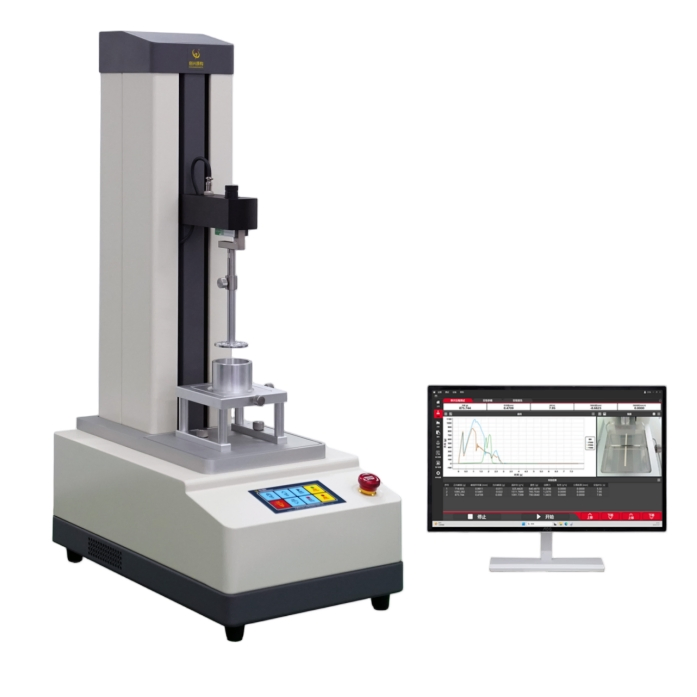

➤Integrated video/image capture synchronized with strain curves for database traceability.
➤High-speed data acquisition (4,000 groups/sec) for precise sample change tracking.

🎯 Wide Applications

Applied in physical property analysis for: Gelatin, carrageenan, pharmaceuticals, cosmetics, dairy, meat, aquatic products, baked goods, fruits, and vegetables. Quantifies gel strength, hardness, crispness, viscosity, elasticity, chewiness, tensile strength, and more.

💻 Software Capabilities

Comprehensive program editing, test replay with video sync, multi-curve comparison (up to 5 results), and support for multiple modes: tension, puncture, shear, bending, and creep characteristics. Certified by the National Copyright Administration.

⚙ Product Parameters
Parameter Specification
Force Sensor Capacity25 kg (Optional: 0.5 - 25 kg)
Force Resolution0.001 g ~ 0.0001 g
Force Accuracy Error≤ ±0.01%
Measurement Arm Range0~310 mm
Displacement Resolution0.0001 mm
Testing Speed0.001~40 mm/s
Data Acquisition RateMax. 3000 sets/s

✅ Applicable Standards

Complies with: Chinese Pharmacopoeia 2025, GMP Regulations, GB6783-2013 (Gelatin), NY/T1180-2006 (Meat), AACC 74-09, ASTM D882-80a, and British Standards (BS).

📷 Detailed Photos
Texture Analyzer Photo 1

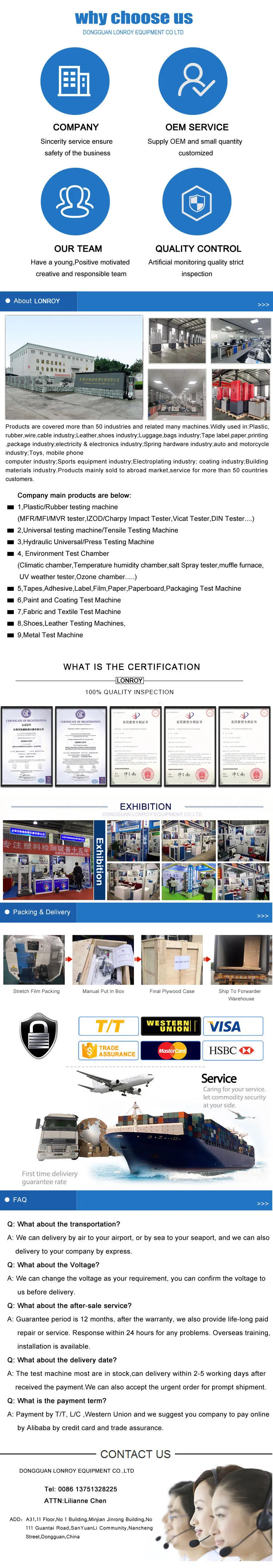

Texture Analyzer Details

Frequently Asked Questions

❓ What physical properties can the LS-T001 measure?
It can quantify gel strength, hardness, crispness, viscosity, elasticity, toughness, chewiness, tensile strength, and shear strength among others.
❓ Can the force sensors be changed for different accuracy needs?
Yes, the force sensing element can be quickly replaced to adjust the range (0.5kg to 25kg) and resolution (0.001g to 0.0001g).
❓ Does the software support video recording during tests?
Yes, the software captures video synchronously with the test data and strain curves for complete traceability.
❓ What standards does this instrument comply with?
It complies with ASTM D882, Chinese Pharmacopoeia, GB/T standards, AACC, AOAC, and British Standards.
❓ Can I export the test results to other formats?
Yes, the system allows for the automatic generation and export of reports in Excel, Word, and PDF formats.
❓ Is there support for international users?
The software features a one-click switch between Chinese and English operating systems and includes 20 practical teaching videos.
