Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Test ModeInstant Test
UsageNetwork Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
Test RegionForming Cable
Cable TypeShielded
PowerElectricity
CertificationCE
Measurement Range1.8~10mm, 60~100mm
HS Code90248000
Product Description
⚙️

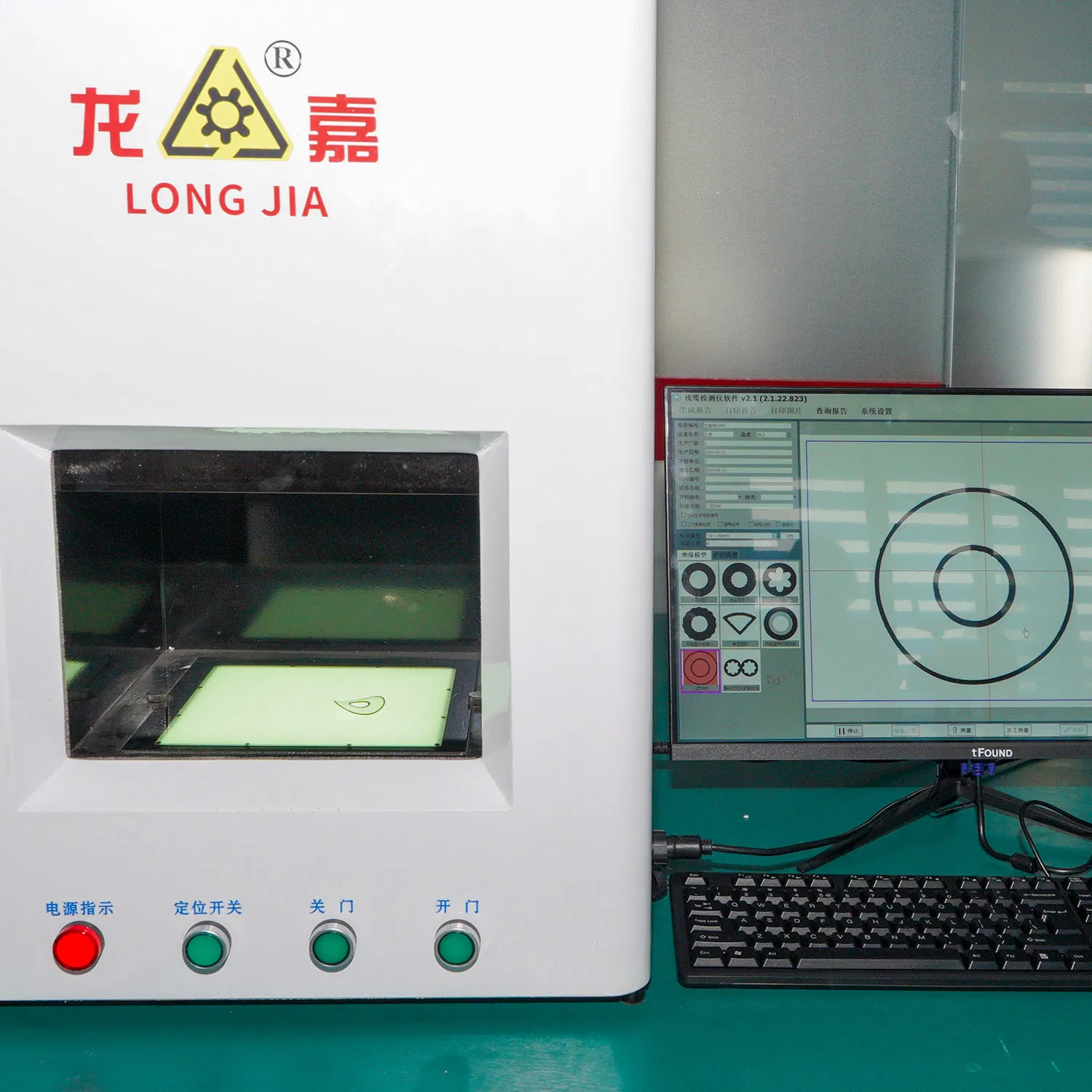

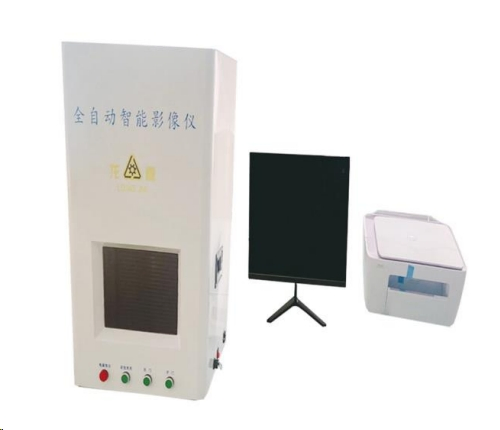

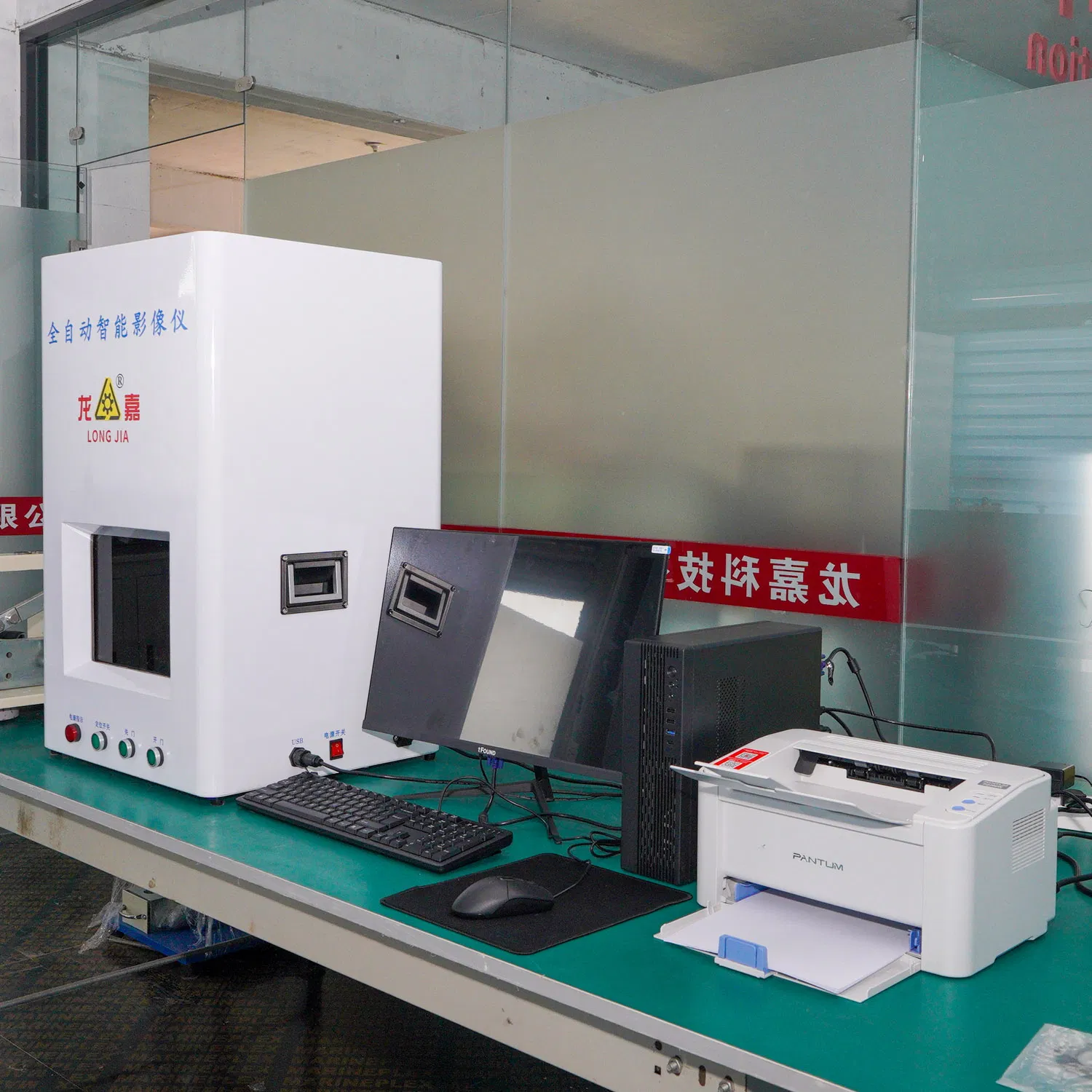

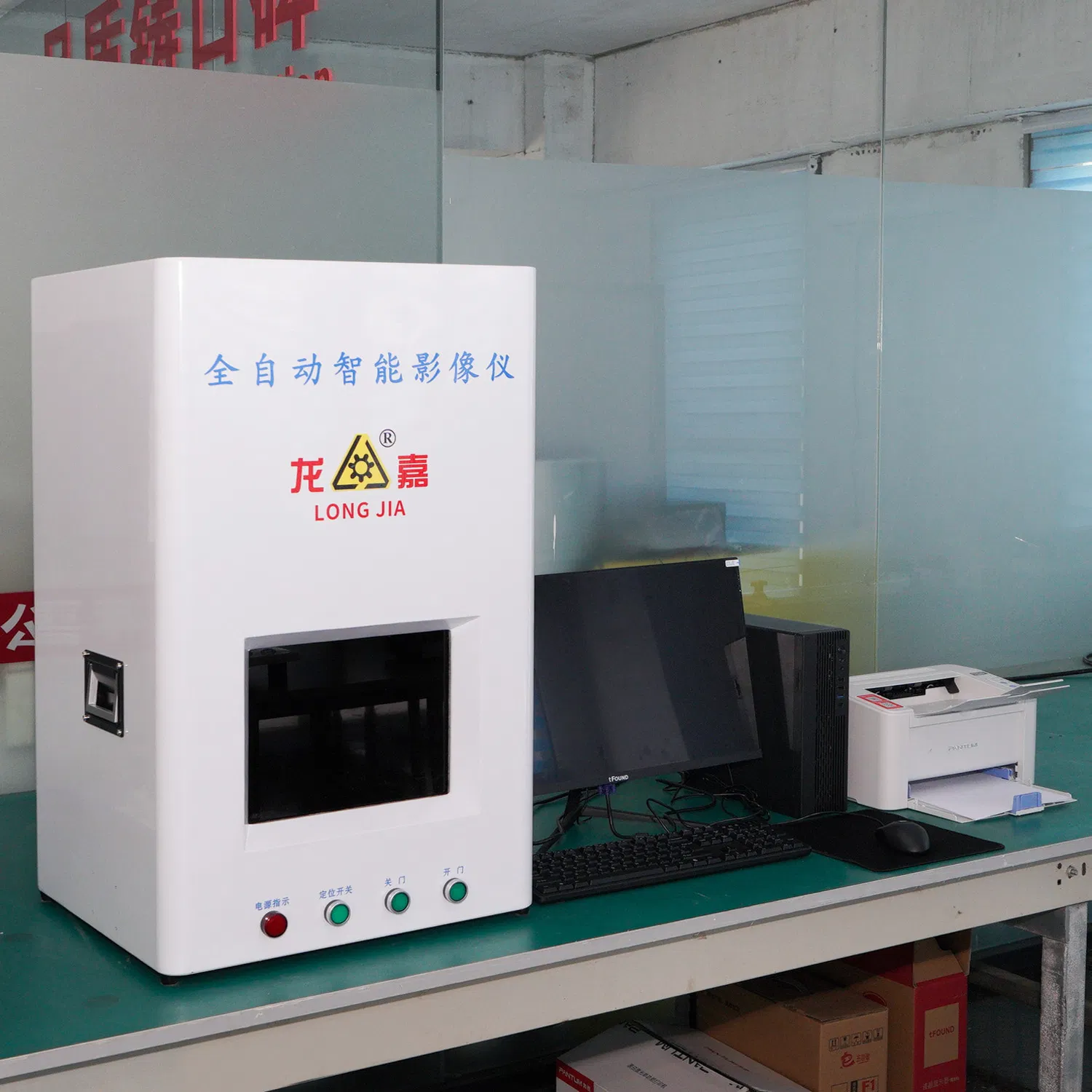

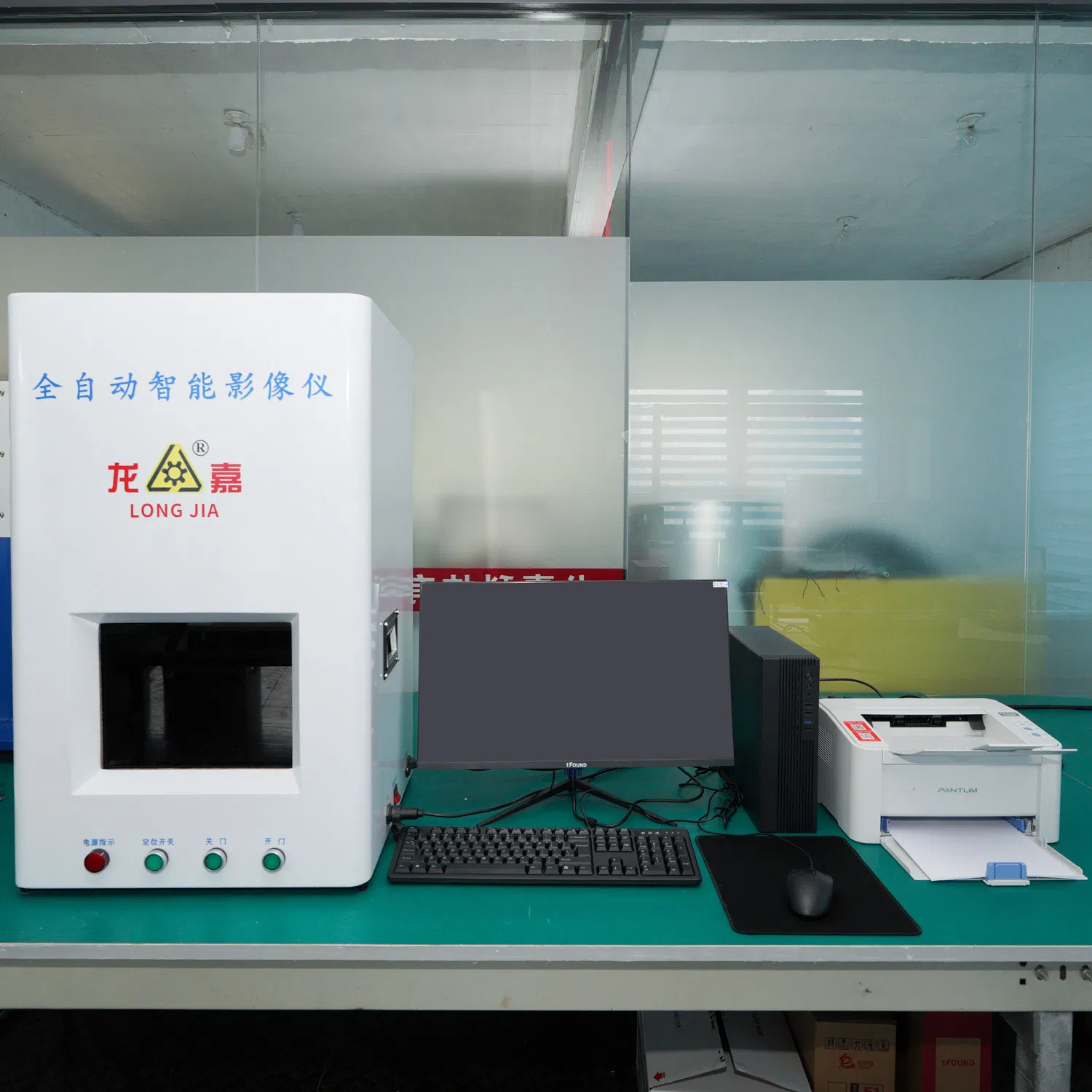

Fully Automatic Intelligent Projector
The optical projector is specially designed for measuring the insulation and sheath thickness of wires and cables. It uses optical projection to project the cross-sectional profile of the measured cable onto a screen for observation and aiming, and uses a micrometer stage to perform force-free length measurement.
📊
This instrument can automatically measure the cross-sectional area of the insulation layer and conductive layer of wires and cables. It uses optical and digital technology to transfer the captured data into a fully automatic program for processing. The test process is completely controlled by software, and the test results are automatically output.
Technical Specifications

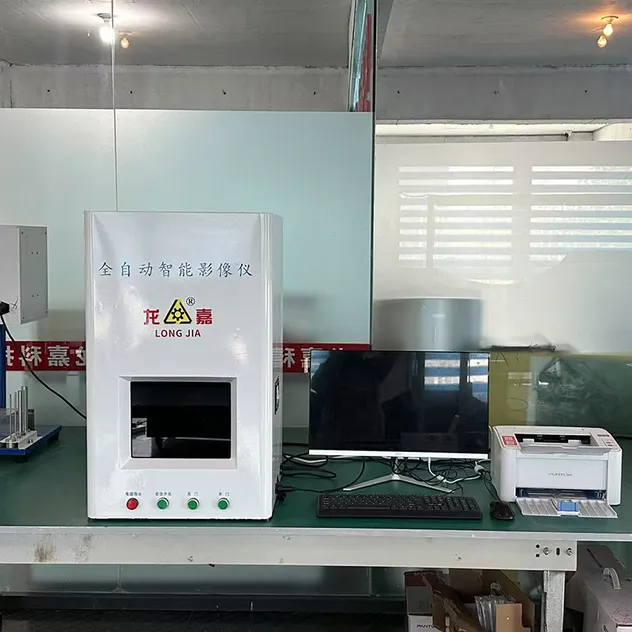

Specification 1
Specification 2

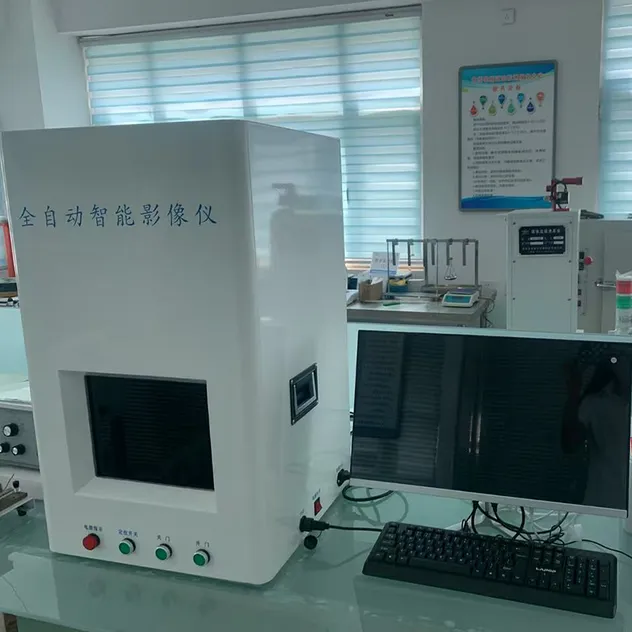

Specification 3
Sub-processing rate: 1Nm
Automatic Measurement Range: Above 1.8mm
Manual Measurement Range: Above 0.5mm
Range Options: 1.8-10mm, 10-60mm, 60-100mm, 100-160mm
Features: Simple operation, intelligent control, automatic output
Key Features

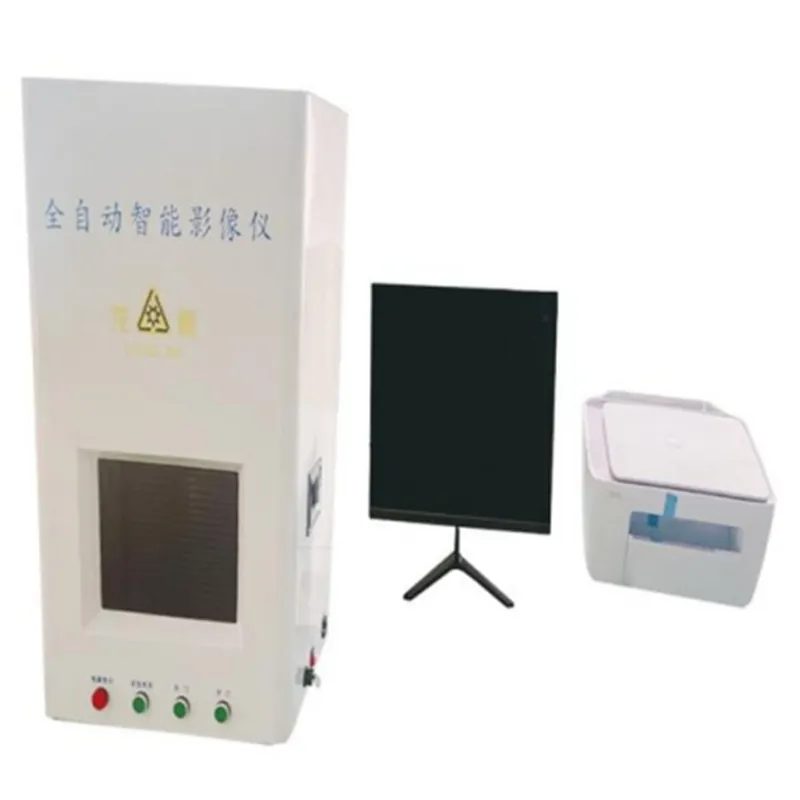

Product Function

Functionality: Utilizes image recognition technology to measure specific values of conductors and insulation layers. Integrated with brand all-in-one computer systems and inkjet printers for seamless documentation.

After Sales Service
🛡️ Standard Warranty: 12 months or 2,000 operating hours
🌐 Global Support: 24/7 technical assistance and spare parts supply
🏫 Training: On-site or remote operation/maintenance training
Packaging & Shipping
Package 1
Package 2
Shipping 1
Shipping 2
Shipping 3
Company Profile
Factory View

Founded in 2012, our company is a modern enterprise integrating the research, development, production, and maintenance of cable production and testing equipment. We have been awarded as a "High-tech Enterprise" and have obtained 34 patents for our innovative technology. Our products are exported to more than 20 countries globally.

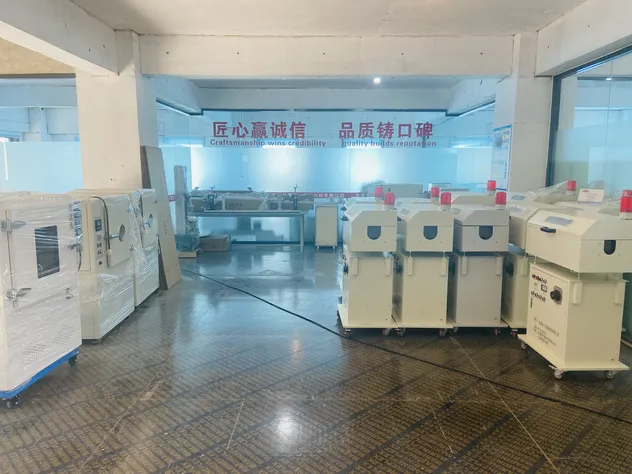

Workshop 1
Workshop 2

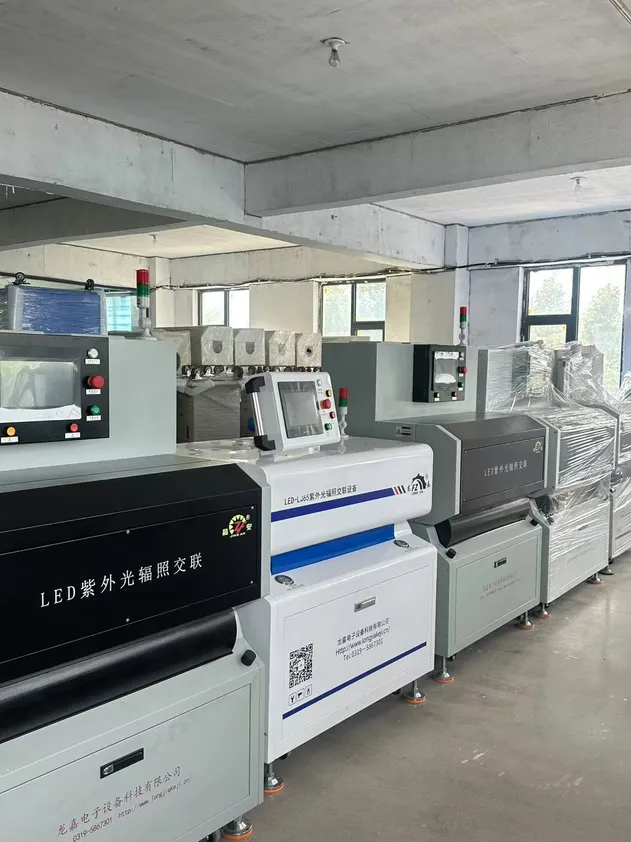

Workshop 3
Exhibitions & Certifications
Exhibition 1
Exhibition 2
Exhibition 3
Cert 1
Cert 2
Cert 3
Frequently Asked Questions
What is the lead time for orders?
Standard models ship in 3-7 days; customized units require 7-15 days depending on the complexity of the requirements.
Are you a manufacturer or a trading company?
We are a manufacturer specializing in cable equipment manufacturing with 13 years of history. You are welcome to visit our factory at any time.
Can I request a customized measurement range or features?
Absolutely! We offer tailored solutions for specific cable testing needs and equipment attachments.
What documents do you provide for export?
We provide a full export package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
How do I place an order and what is the process?
Contact us via email or phone for a detailed quote. Once specifications are finalized, you can confirm the order with a Purchase Order (PO).
What kind of technical support do you offer?
We provide 24/7 global technical assistance, on-site installation training, and a continuous supply of spare parts.
