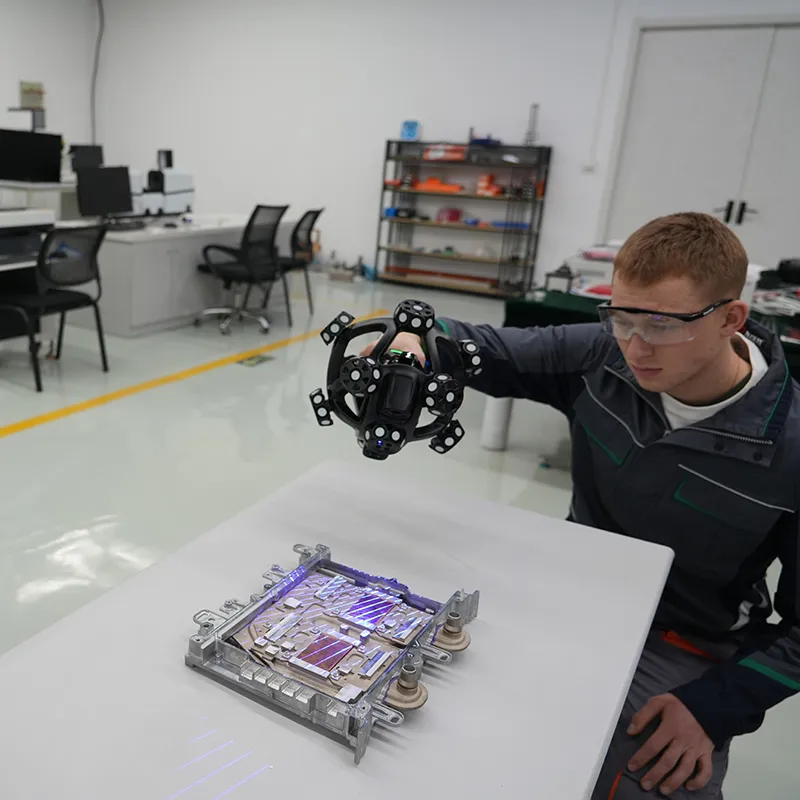

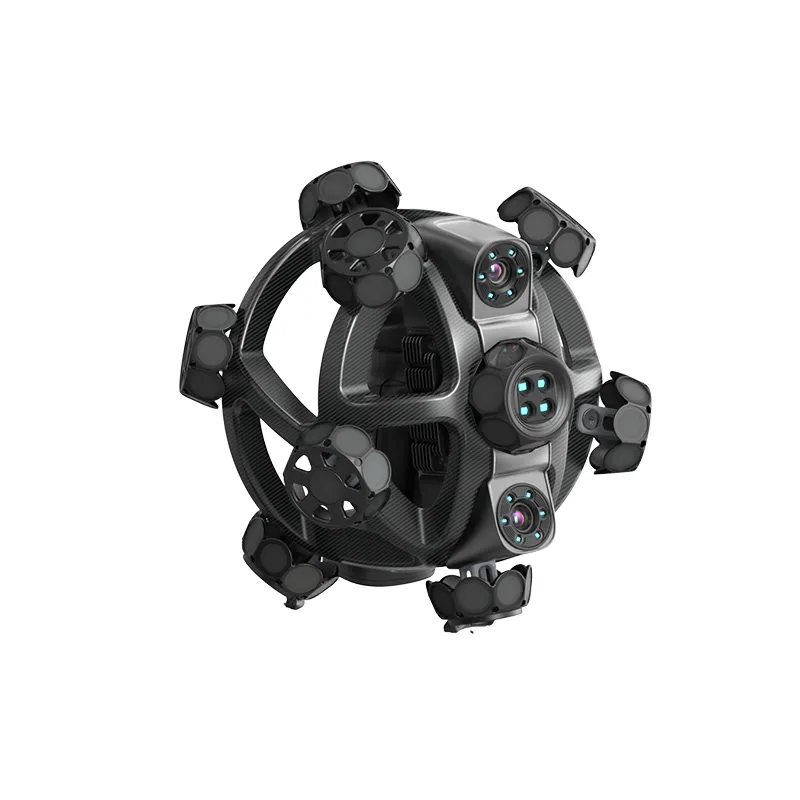

NimbleTrack-CR is an intelligent and wireless 3D scanning system, especially designed for ultimate detail capture. Built on advanced features including wireless freedom, lightweight and portable design, and high accuracy, this next-generation solution pushes the boundaries of 3D digitization.

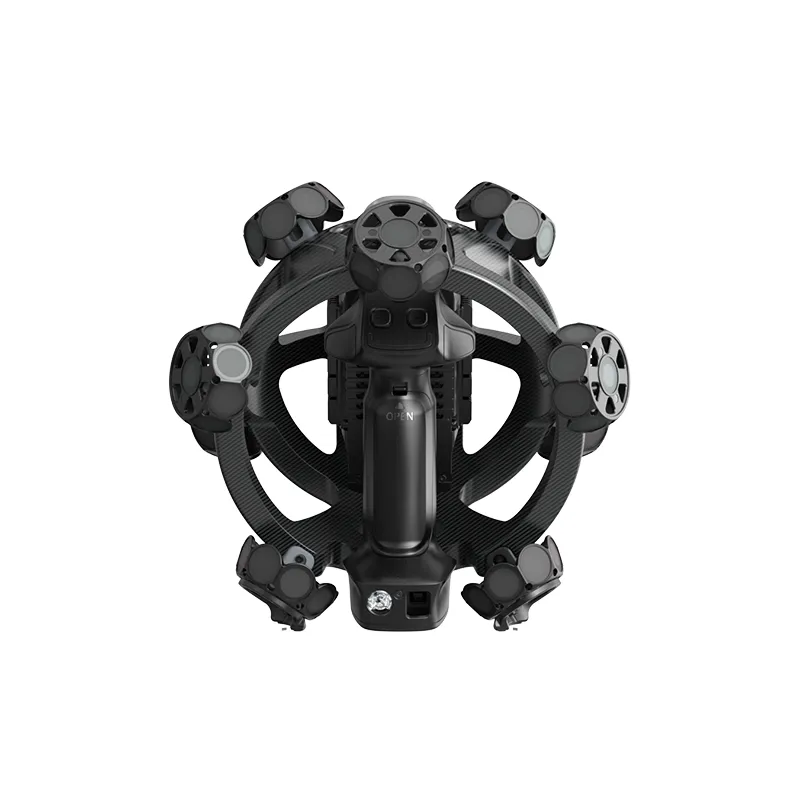

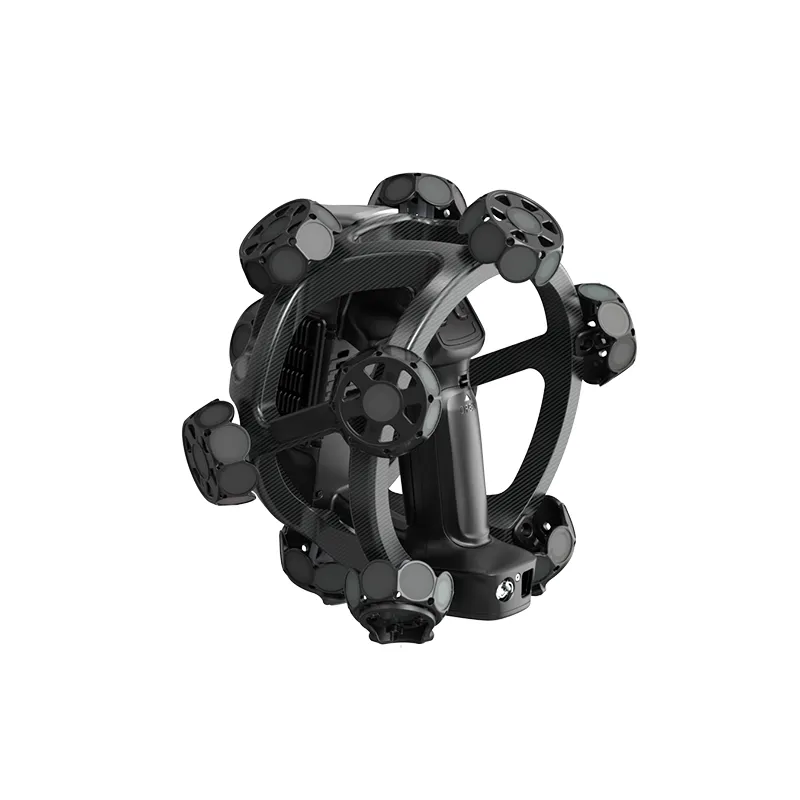

230-mm diameter and 1.3-kg weight. Compact and portable, fitting into a single case for effortless transport.

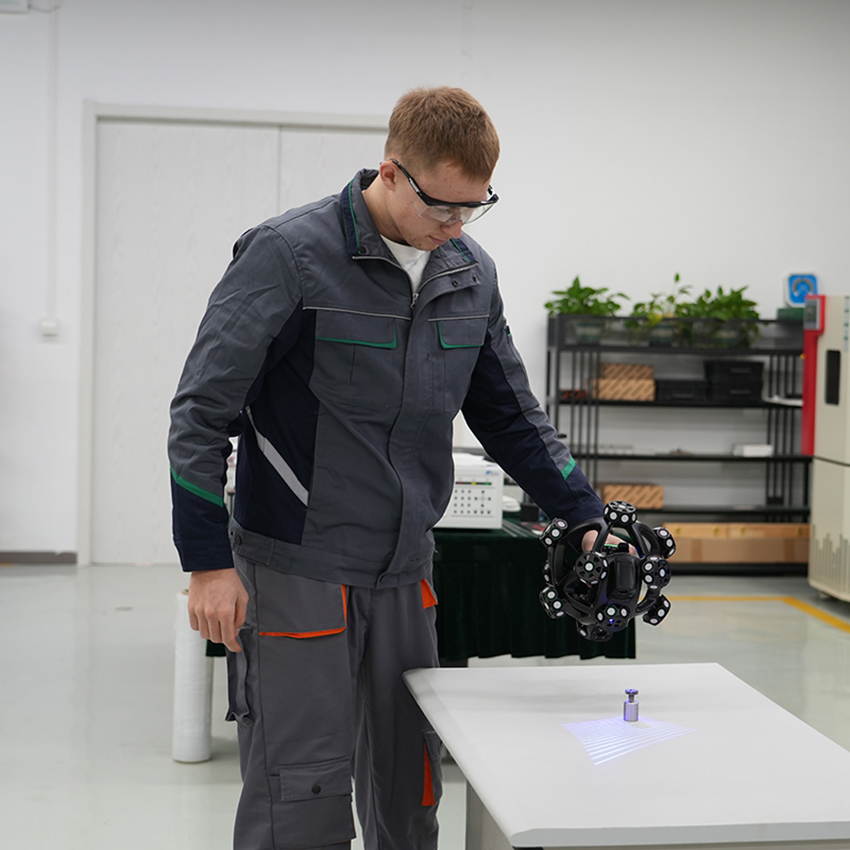

Ensures precise measurement for quality control. 0.025 mm system accuracy, ideal for turbine blades and complex curves.
Supports ultra-fast, hyper-fine, and deep hole scanning to adapt to diverse industrial needs.

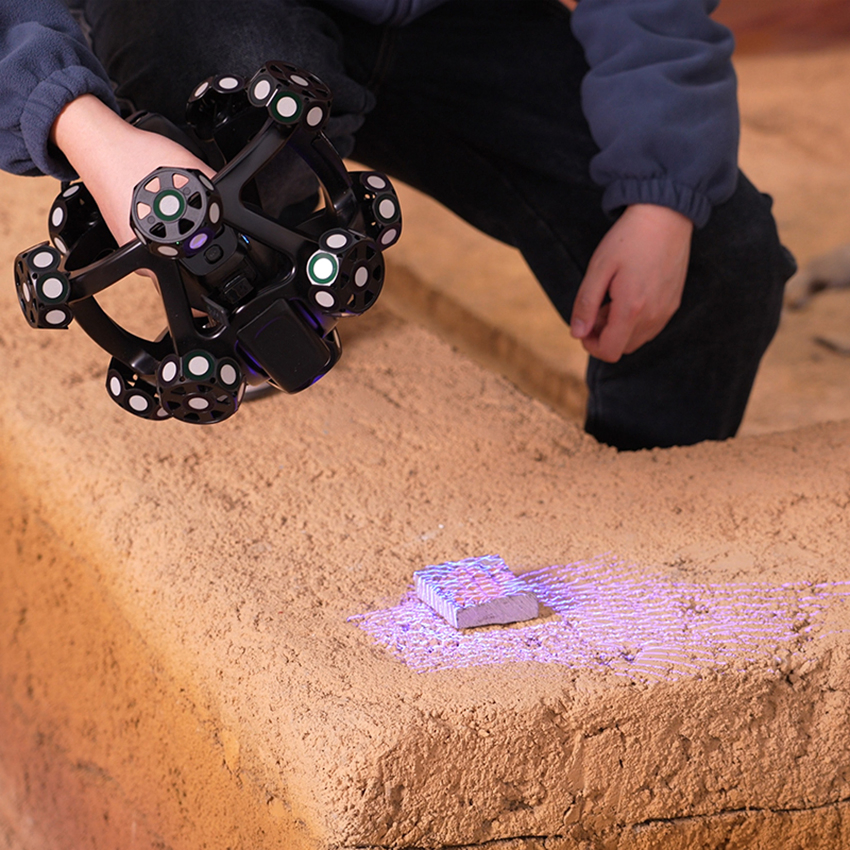

Handles various part sizes across indoor and outdoor settings, even under direct sunlight.

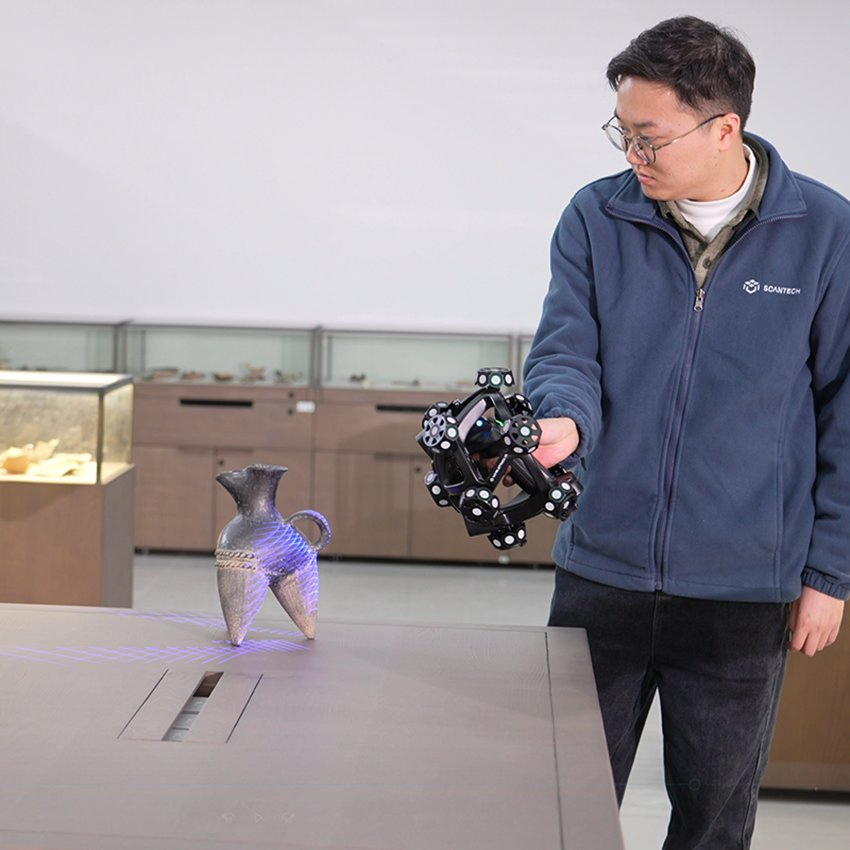

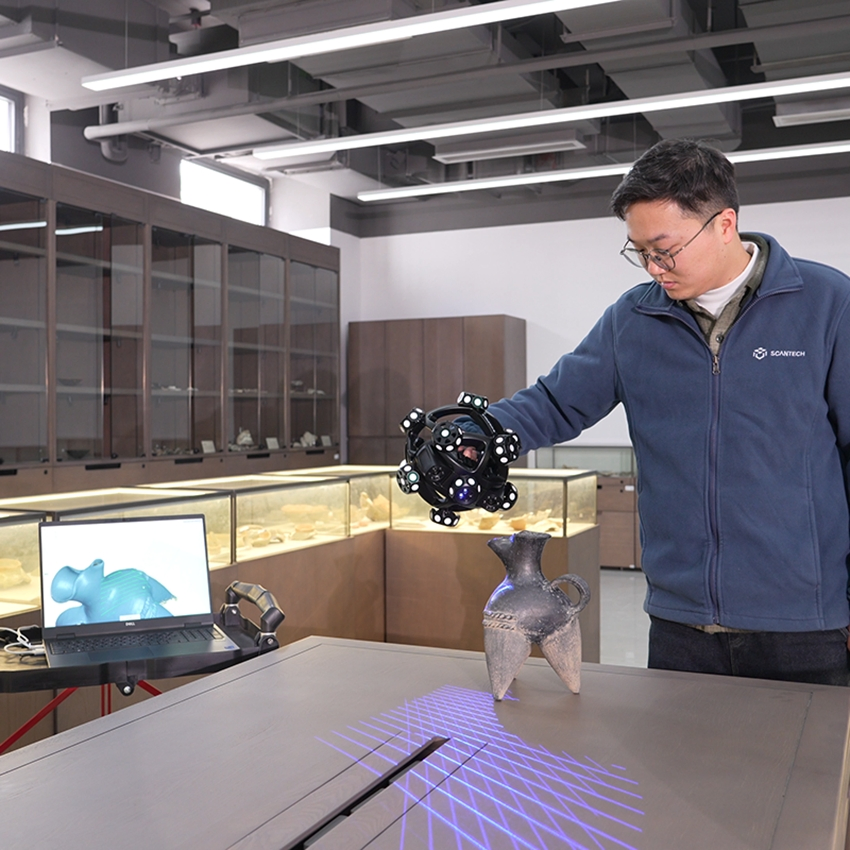

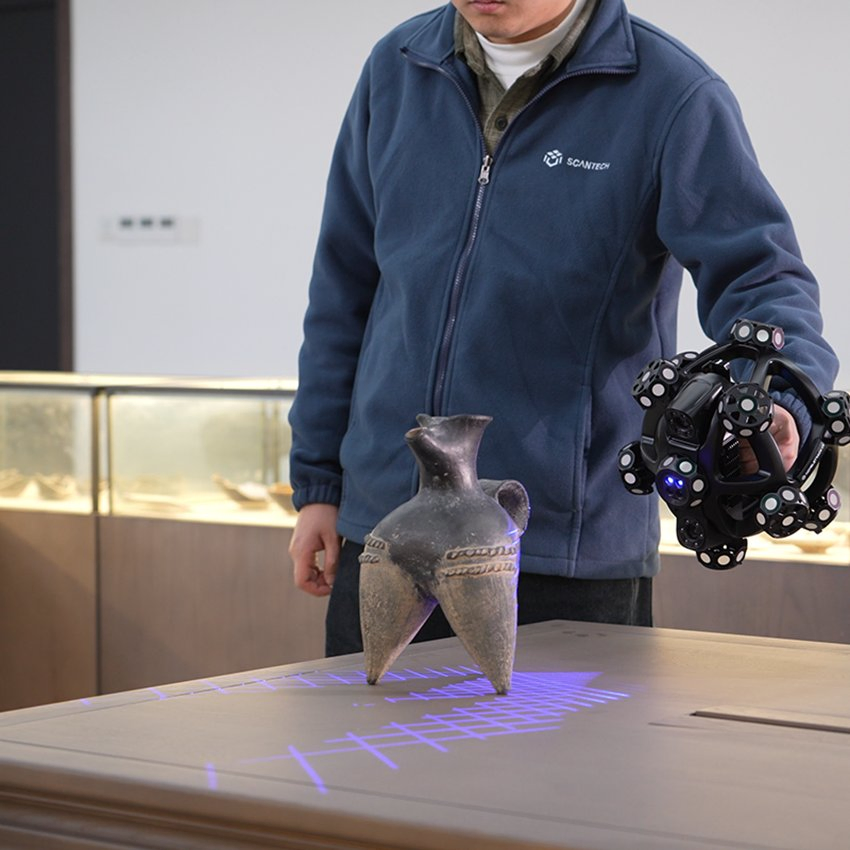

Scans textiles, ceramics, bronze, and sheet metal without spray coatings, protecting surfaces.
| Feature Type | NimbleTrack-CR Specification | |
|---|---|---|
| Scan Mode | Ultra-fast scanning | 17 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | |
| Deep hole scanning | 1 blue laser line | |
| Scanner-only Accuracy | Up to 0.020 mm | |
| System Accuracy | Up to 0.025 mm | |
| Tracking distance | 3200 mm | |
| Volumetric accuracy | 0.064 mm (at 3.2 m) | |
| Scanning frame rate | 120 fps | |
| Measurement rate | Up to 4,900,000 measurements/s | |
| Weight (i-Scanner) | 1.3 kg (Net) / 1.4 kg (with battery) | |
| Wireless Standard | Wi-Fi 6, 802.11a/b/g/n/ac | |
| Output format | .stl, .obj, .ply, .asc, .igs, .txt, etc. | |
