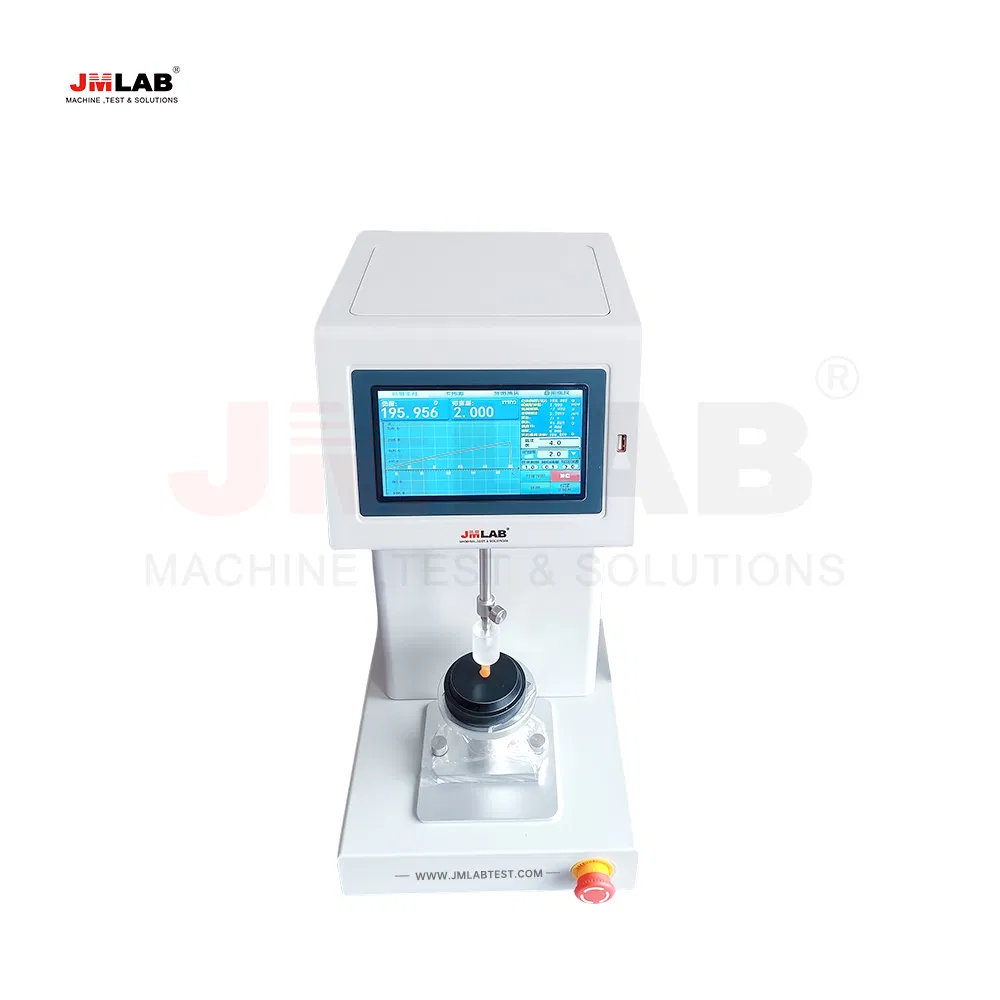

JMZG-03T Texture Analyzer

Customization:	Available
After-sales Service:	Included
Warranty:	1 Year

📊 Basic Specifications

Model NO.

JMZG-03T

Workpiece Max Dia.

<500mm

Type

Strength Testing Machine

Accuracy Grade

0.5

Control

Computer Control

Power Source

AC220V

HS Code

9031809090

Origin

China

🔍 Product Overview

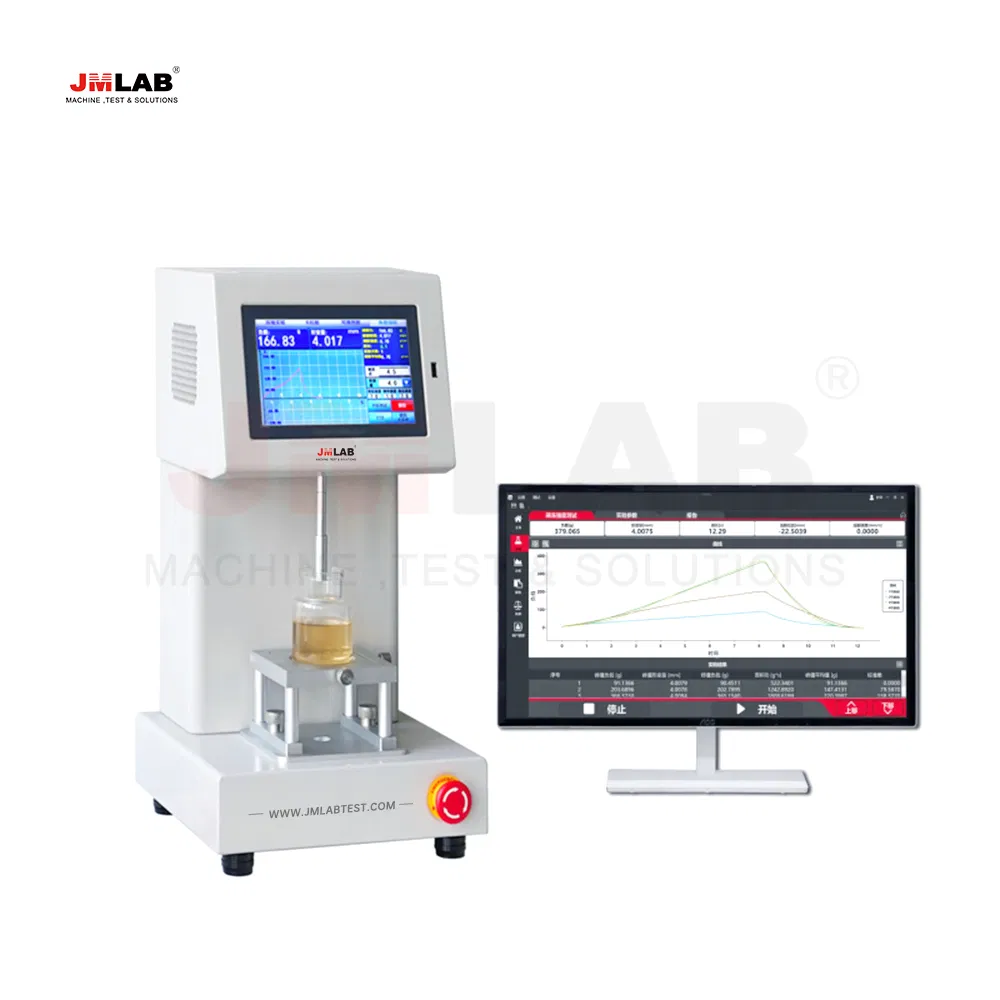

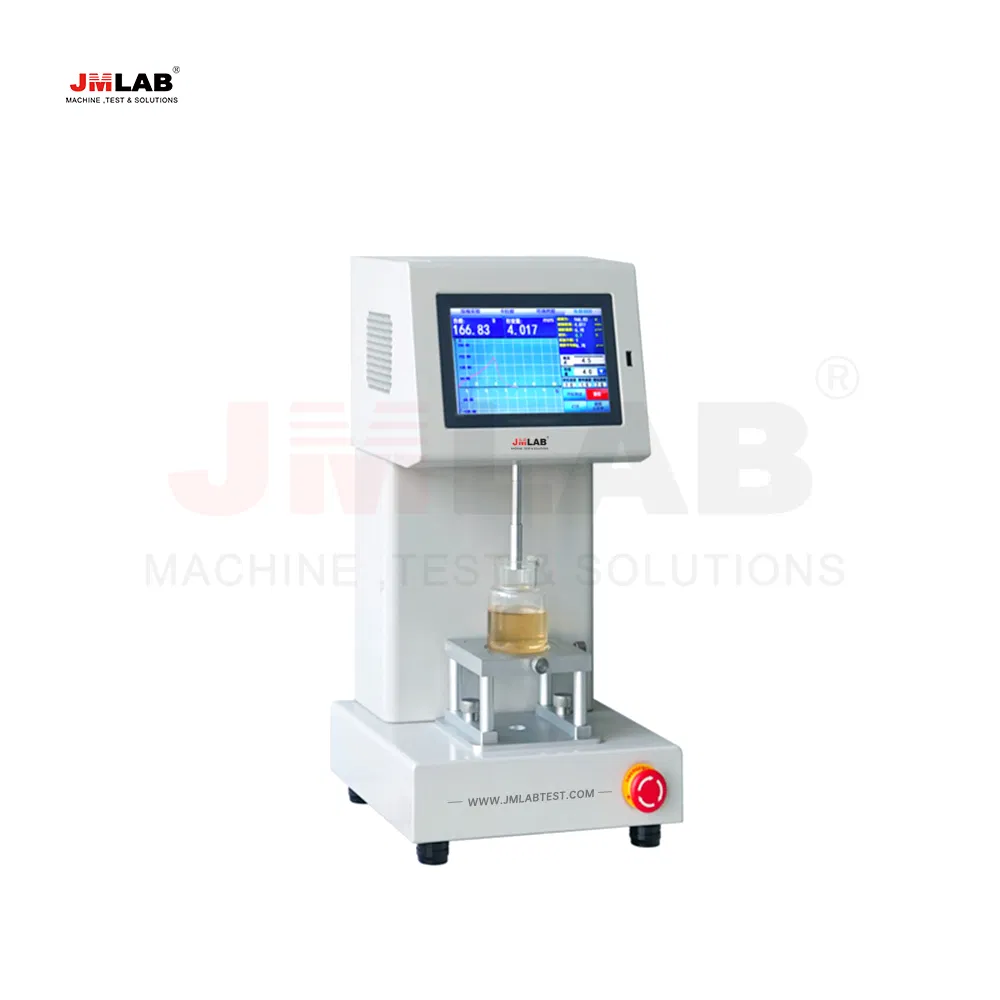

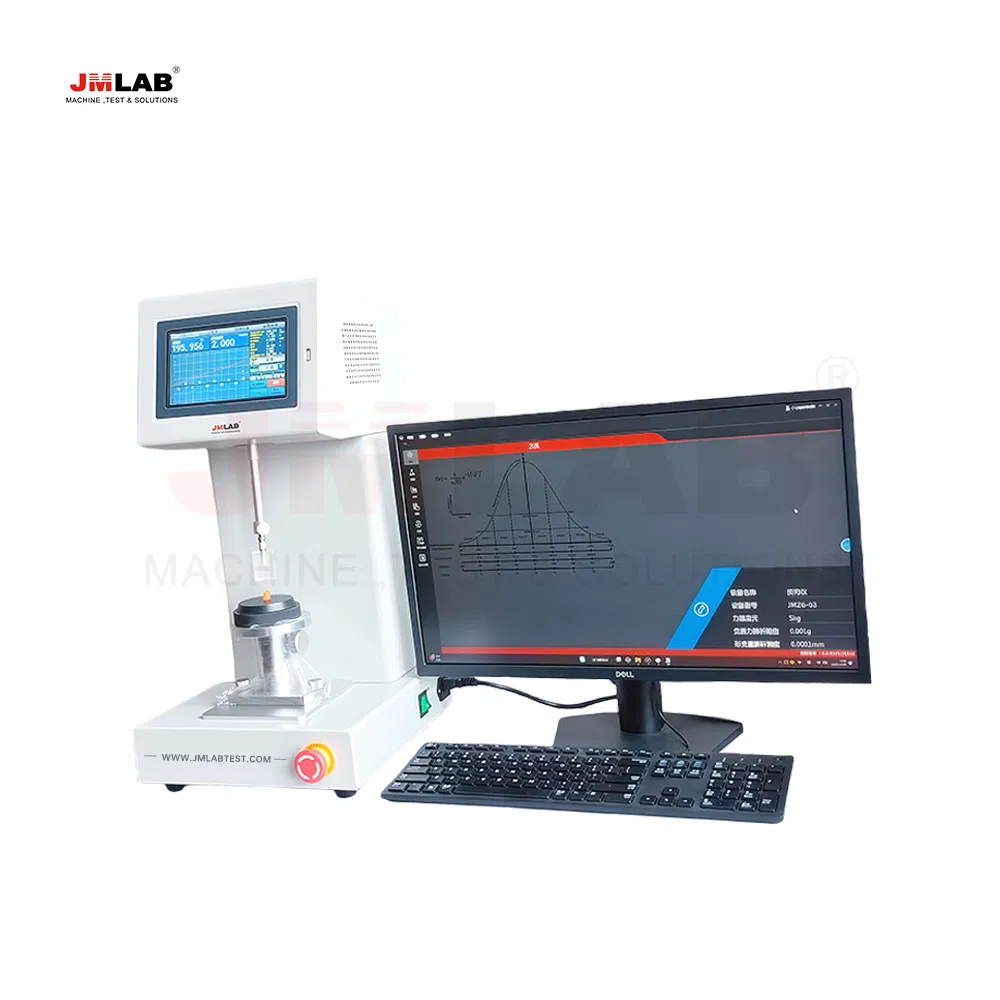

The high-definition touch screen of JMZG-03 texture analyzer can directly display measurement curves, program experimental methods, USB storage test results, and independently print test certificates. It is suitable for various occasions in the laboratory and production field. The device is loaded with the texture professional version system software and can be connected to a computer for operation.

✨ Key Features

🌸 Screen display: 7-inch touch screen control.
🌸 Data Management: Three levels of authority (username + password).
🌸 Audit Trail: Automatically and unconditionally completed by computer.
🌸 Comparison: Select 5 current or historical results for simultaneous analysis.
🌸 Reporting: Generates Excel, Word, PDF and direct A4 printing.

📋 Technical Parameters

Measuring range	0~5000g (optional 0~500g, 0~1000g, 0~2000g)
Measurement accuracy	0.001g (real-time display)
Deformation range	0~120mm
Displacement accuracy	0.001mm
Measuring speed	0.01mm/s~10mm/s
Gel Strength Test	Real-time peak freezing strength, deformation, and toughness.
