📋 Overview
Delivery Time
10-15 Working Days
Applications
Drugs, Reagent, Spices, Dyes, and Other Organic
Work Power
AC110V/220V, 50/60Hz
Transport Package
Carton Case
Production Capacity
200 Sets/Year
🔍 Product Description

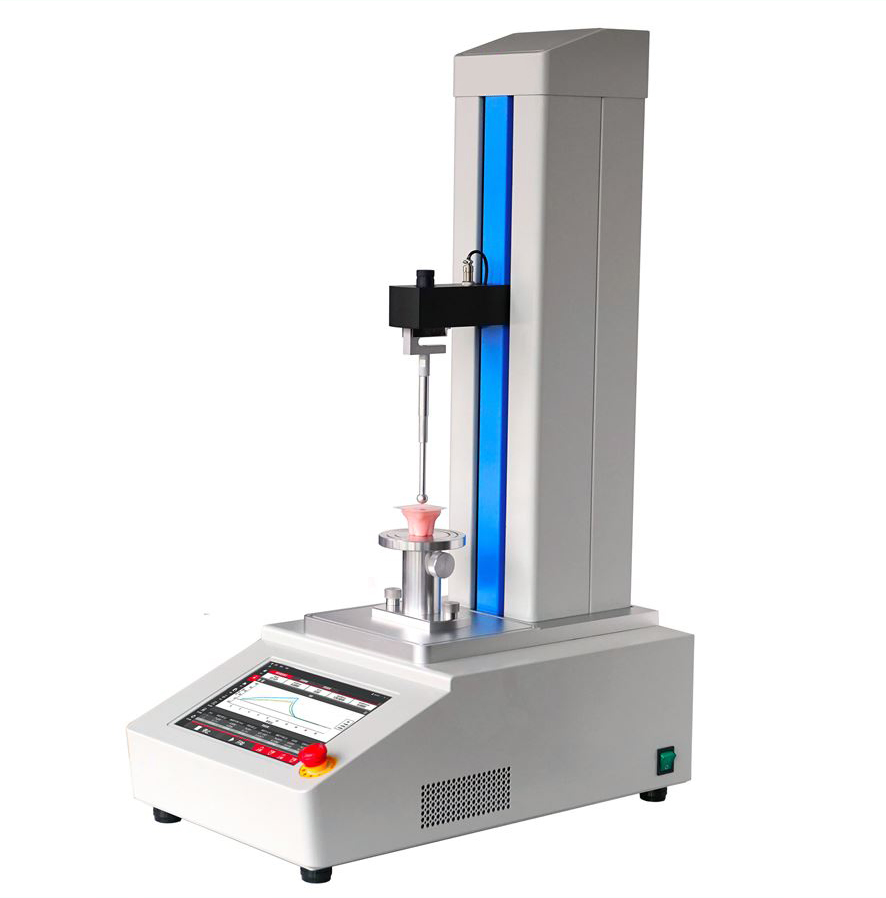

The TA-20HD can accurately quantify the freezing strength, hardness, brittleness, tenderness, elasticity, toughness, cohesion, cohesion, brittleness, chewiness, recovery, tensile strength, burst strength, shear strength of samples, compressive strength, penetration strength, creep properties, relaxation properties and many other physical properties. It is widely used in the physical property analysis of various foods, medicines, cosmetics, and other industrial products.
📊 Product Parameters
| Load force range | 20Kg (optional 1, 2, 5, 10, 20, 25, 50Kg can be quickly replaced by users) |
| Load sensor | 1, 2, 5, 10, 20, 25, 50Kg, others optional |
| Detection accuracy | Better than 0.01% |
| Load force resolution | 0.0001g |
| Displacement range | 0~410mm |
| Displacement resolution | 0.0001mm |
| Movement speed range | 0.001mm/s~50mm/s, ≤±0.1% |
| Data collection rate | Max 4800hz, 200, 500, 1500, 2000, 3000hz optional |
| Protection function | Emergency braking, limit control, overload protection, data encryption |
| Dimensions | L555 × W330 × H 885 mm |
| Weight | 29Kg |
✨ Key Features
- Embedded with a 10-inch industrial HD touch screen (1280×800) with mouse/keyboard support.
- Standard HDMI high-definition interface for dual-screen support and external projectors.
- Rich connectivity: 1 RS232, 1 Gigabit Ethernet, 1 HDMI, and 4 USB ports (2x USB 3.0).
- Embedded HD camera module to record and store the entire test process in a traceable database.
- Quick-replace force sensing elements to adapt to different sample analysis requirements.
- Advanced test playback with synchronized video, curve plotting, and intelligent retrieval.
- Supports three curves: power-time, power-distance, and distance-time with zoom and calculation tools.
- Versatile test modes: Timing, Positioning, Compression, Piercing, Shearing, Bending, Adhesion, and more.
- Three-level authority management for multi-user security and data integrity.
Professional model texture analyzer TA-25HS
❓ Frequently Asked Questions
Q1: What industries can use the TA-20HD Texture Analyzer?
A: It is widely used in food, pharmaceutical, cosmetic, and various industrial sectors for physical property analysis.
Q2: Can the load sensors be changed easily?
A: Yes, the force sensing elements can be replaced quickly and safely to change detection ranges (1kg to 50kg).
Q3: Does the system record video of the tests?
A: Yes, it includes an embedded HD camera module that records the test process for full traceability.
Q4: What kind of data curves can be displayed?
A: The system displays Power-Time, Power-Distance, and Distance-Time curves simultaneously.
Q5: Is the test report customizable?
A: Absolutely. Users can edit the report format, add or delete test items as needed.
Q6: What safety protections are included?
A: It features emergency braking, upper/lower limit control, and sensor overload protection.
