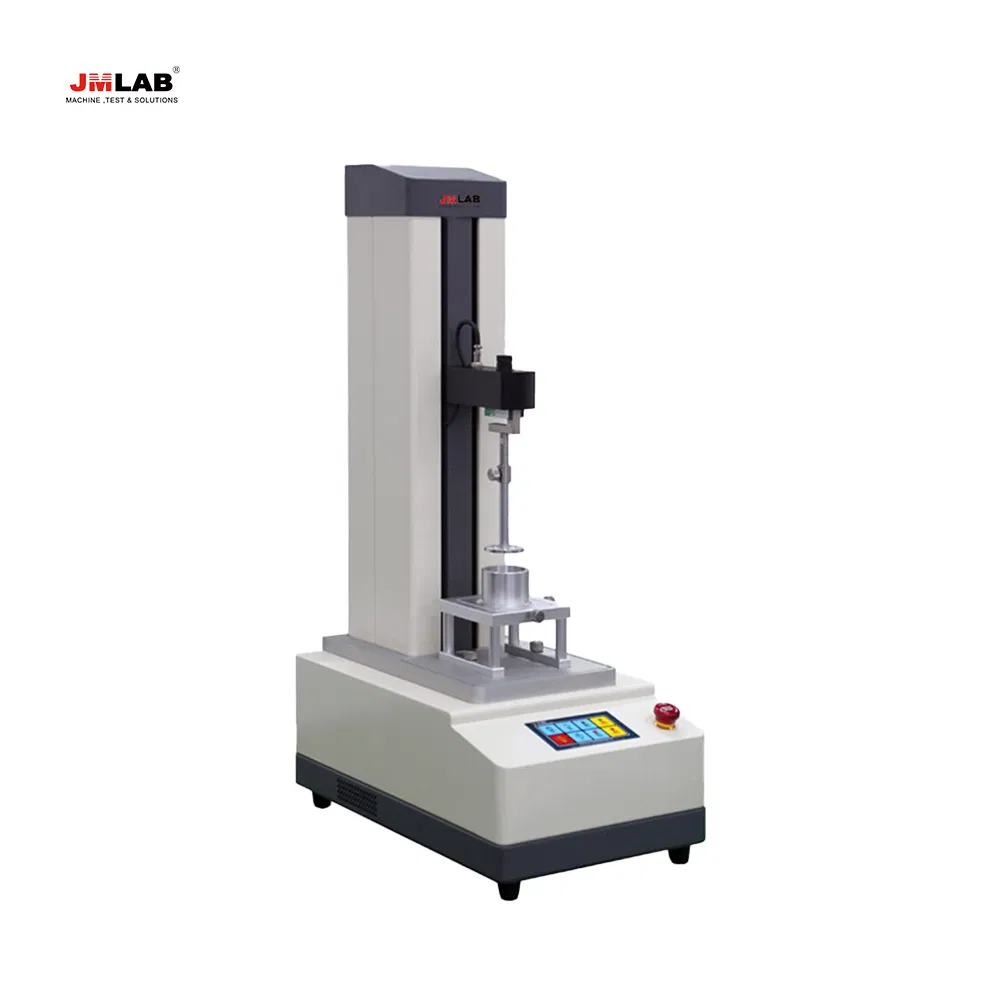

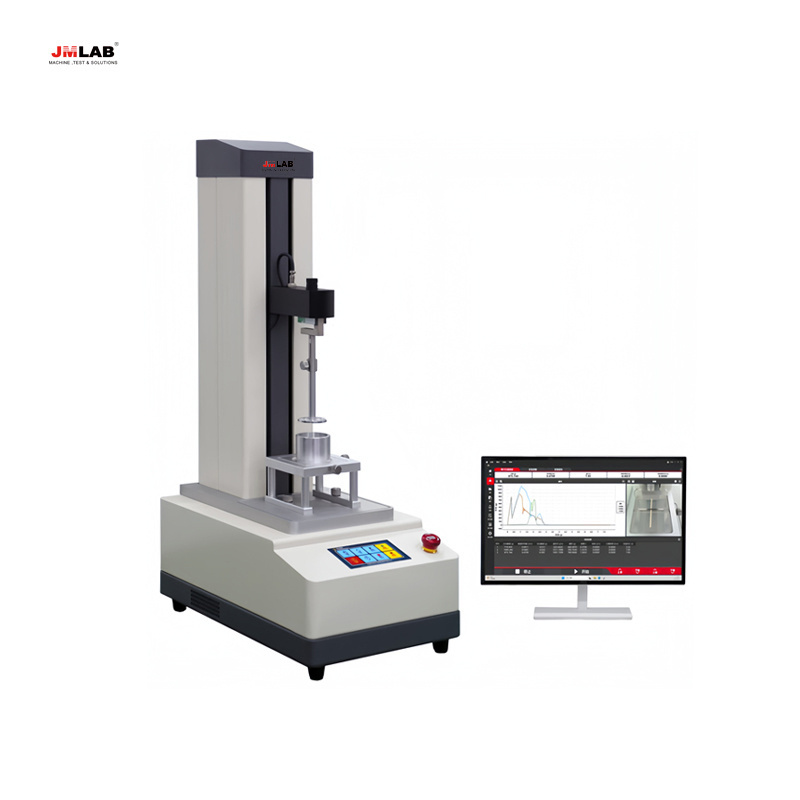

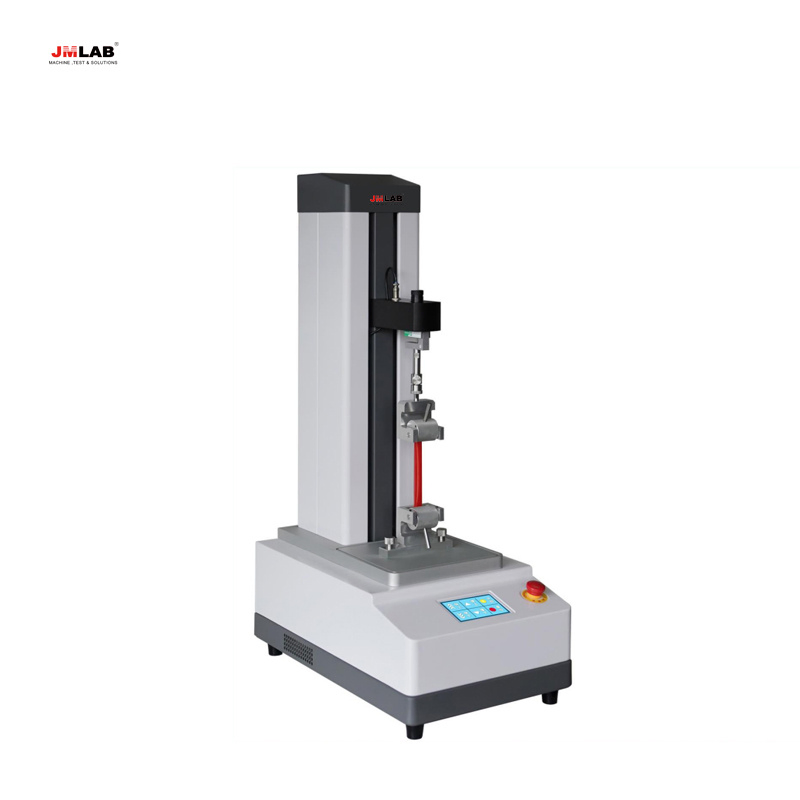

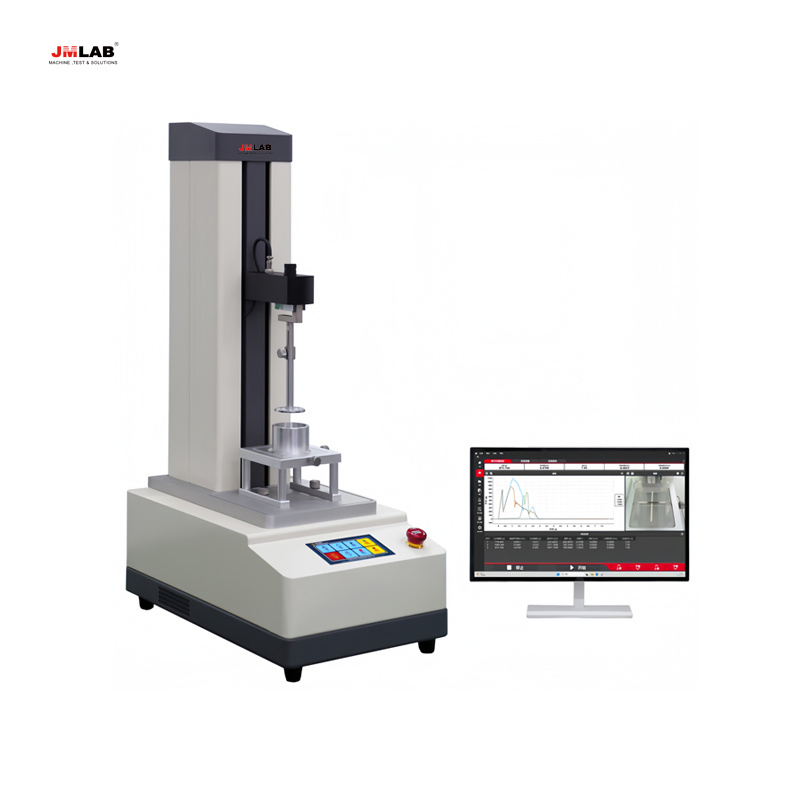

Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
1 / 5
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials
Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials

Texture Analyzer for Food Industry/Packaging/Cosmetics Instrument for Measuring and Analyzing Materials

Customization: Available
After-sales Service: Included
Warranty: 1 Year
Send Inquiry

Product Description

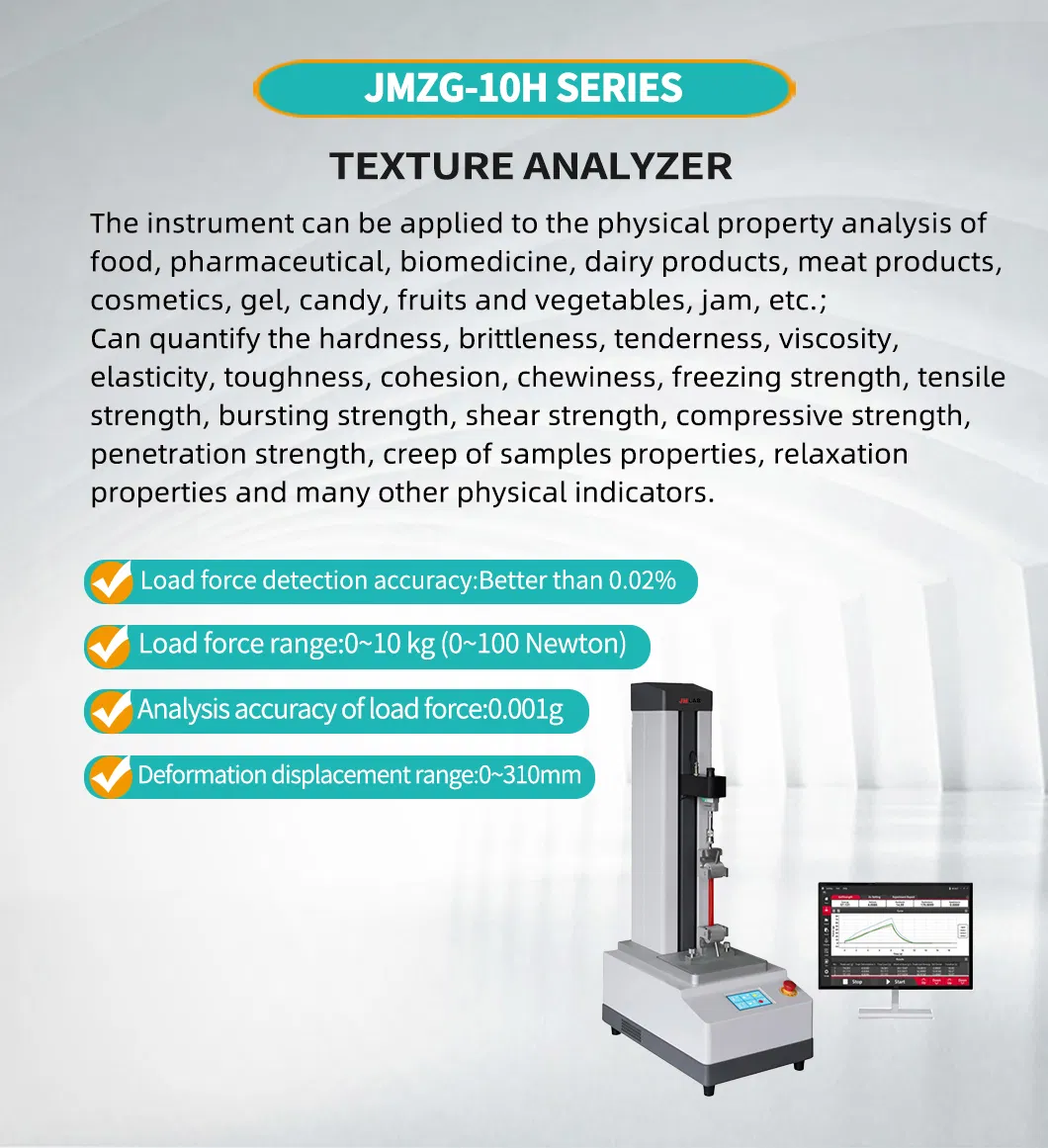

Texture Analyzer Overview Texture Analyzer Applications
📊 Basic Specifications
ModelJMZG-10H
Max Workpiece Diameter<500mm
Accuracy Grade0.5
Load WayElectronic Load
DisplayDigital / Computer Control
Force Range0~10 Kg (0~100 Newton)
Force AccuracyBetter Than 0.02%
Displacement Range0~310mm
Detection Speed0.01mm/S~20mm/S
Power SourceAC220V
🔍 Product Overview

The instrument can be applied to the physical property analysis of food, pharmaceutical, biomedicine, dairy products, meat products, cosmetics, gel, candy, fruits and vegetables, jam, etc.

Quantifiable Indicators: Hardness, brittleness, tenderness, viscosity, elasticity, toughness, cohesion, chewiness, freezing strength, tensile strength, bursting strength, shear strength, compressive strength, penetration strength, creep properties, and relaxation properties.

Parameters Detail
⚙️ Test Functions
  • Gel strength test
  • Single compression test
  • Surimi gel test
  • Carrageenan test
  • Meat tenderness test
  • Cycle test
  • Relaxation performance test
  • Creep performance test
  • Full texture test (TPA)
  • Tensile & Bend test
  • Shear & Puncture test
  • Custom test modes
📸 Detailed Photos

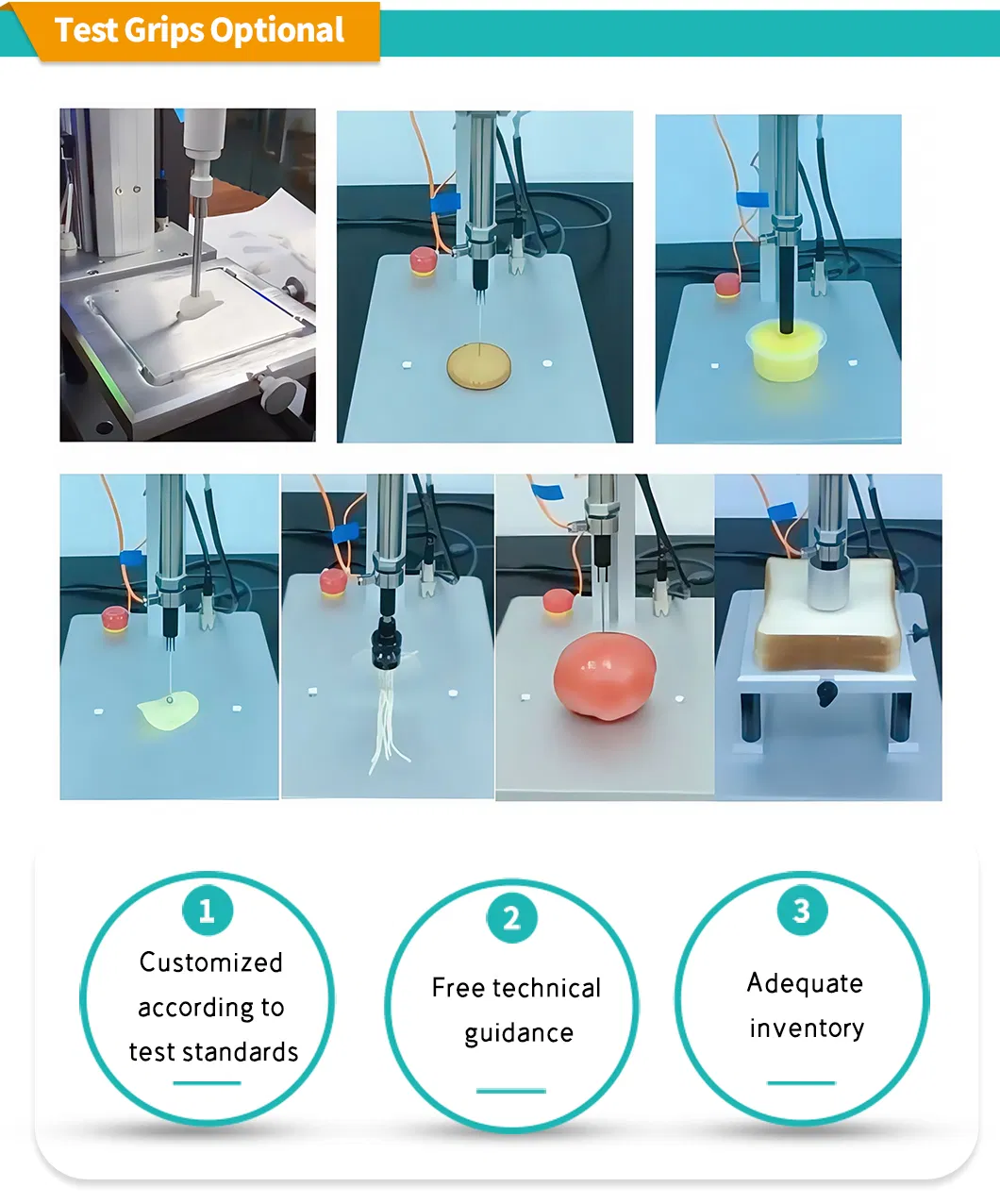

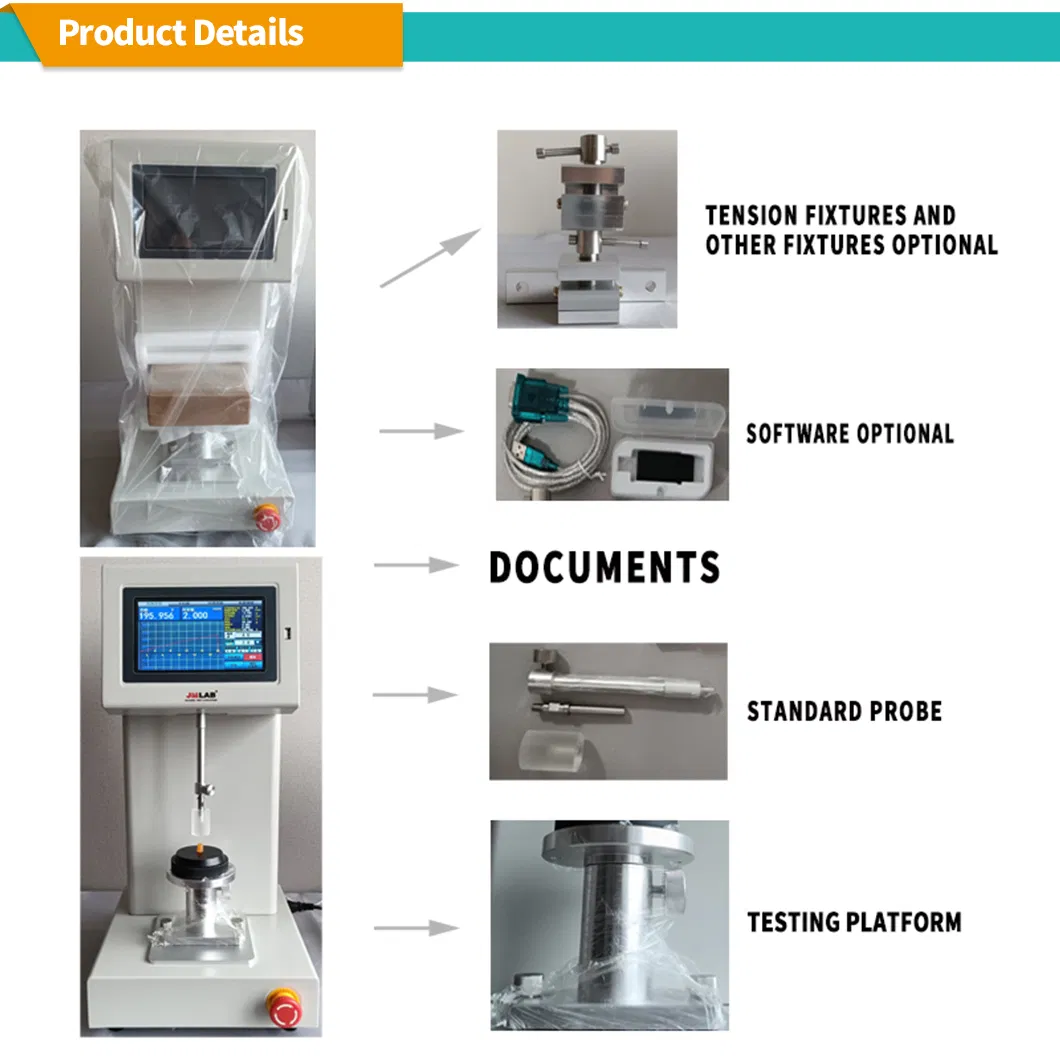

Detail 1 Detail 2
📜 Compliance & Certifications

Our equipment complies with international standards: GB6783-2013, GB13731, GB28304-2012, GB/T36187-2018, QB/T4087-2010, NY/T1180-2006, AACC 74-09, AOAC.

Certifications Display
📦 Packaging & Shipping
Package 1 Package 2
Shipping Logistics
🔄 Related Testing Equipment
Leakage Tester

Leakage & Bursting Strength Tester

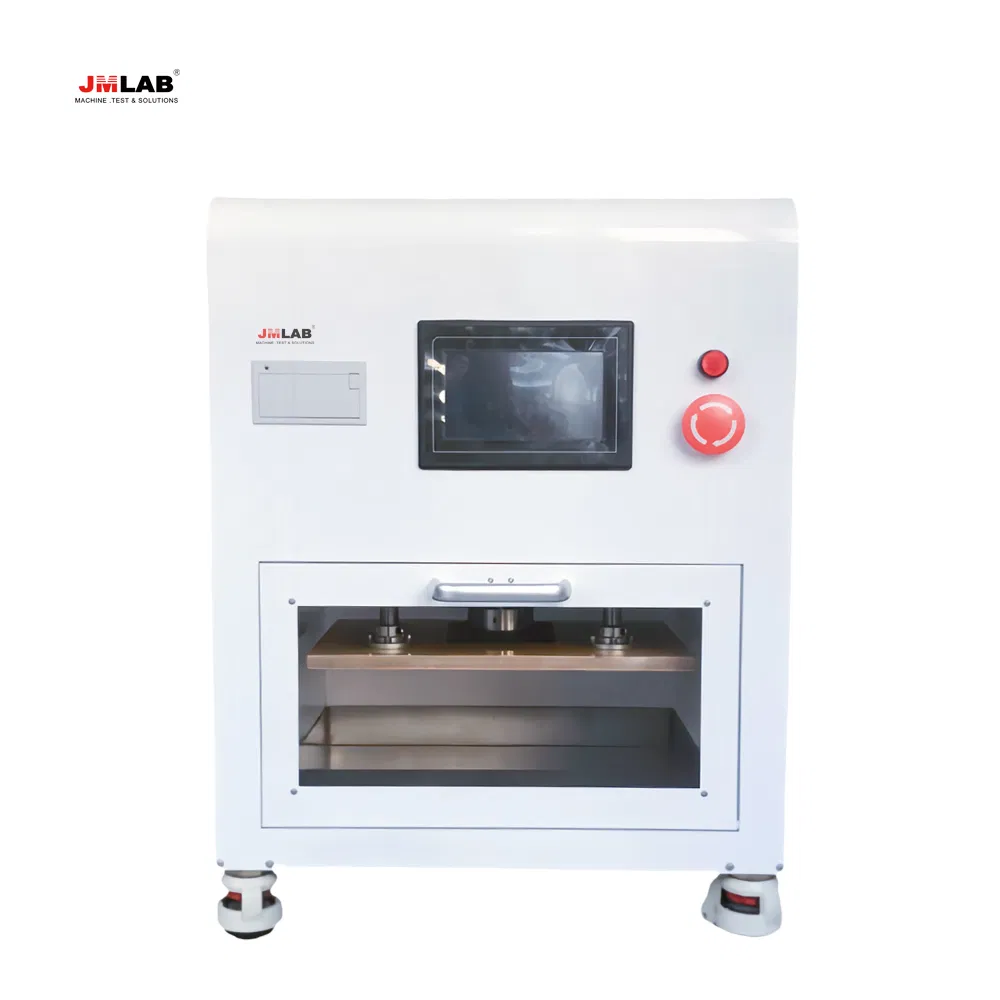

Compression Tester

Packaging Bags Compression Instrument

❓ Frequently Asked Questions
What is the warranty period for the machines?
Every machine has a 12-month warranty after shipment. For overseas customers, we can extend this by an additional 2 months to account for sea transportation time.
What is the typical delivery timeframe?
Standard machines in stock ship within 1-3 working days. For non-stock standard items, delivery is usually 3-15 working days after deposit.
Do you offer customization or OEM services?
Yes, we provide both OEM and ODM services. We can customize machines according to your specific requirements and include your logo on the equipment.
How is the equipment installed and operated?
Most machines ship fully assembled. You simply connect the power. We provide comprehensive English operation manuals and video guides via email.
What happens if the machine encounters a technical issue?
We provide remote support via email or video chat. Once a problem is identified, a solution is typically offered within 24 to 48 hours.
How do you ensure product quality?
We maintain strict quality control with pre-production samples before mass production and a final inspection of every unit before shipment.
