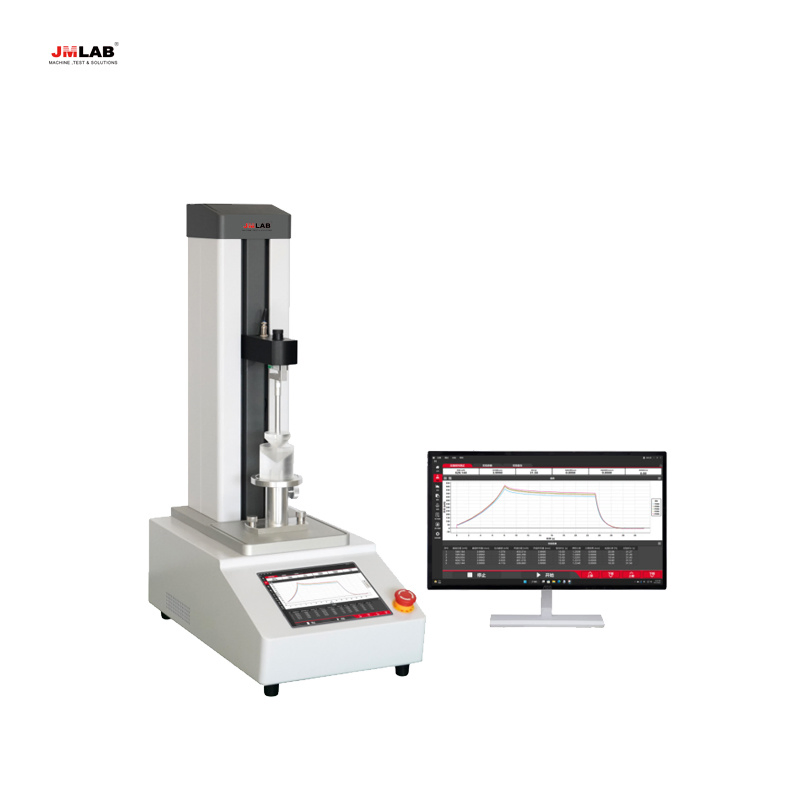

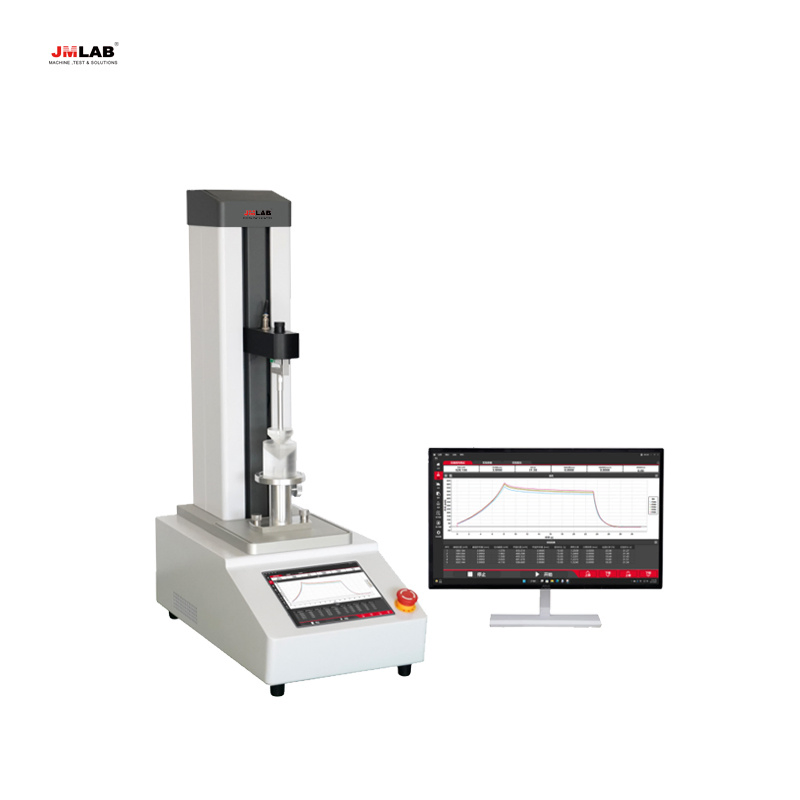

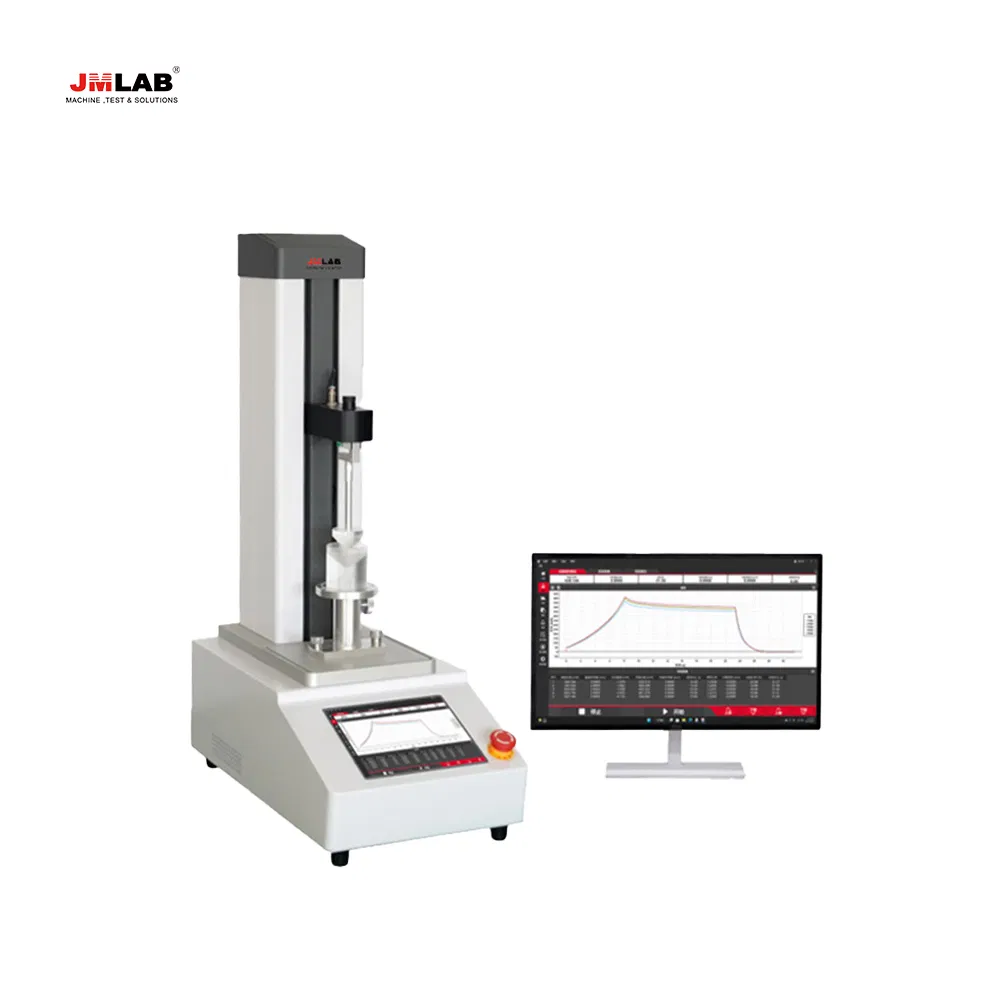

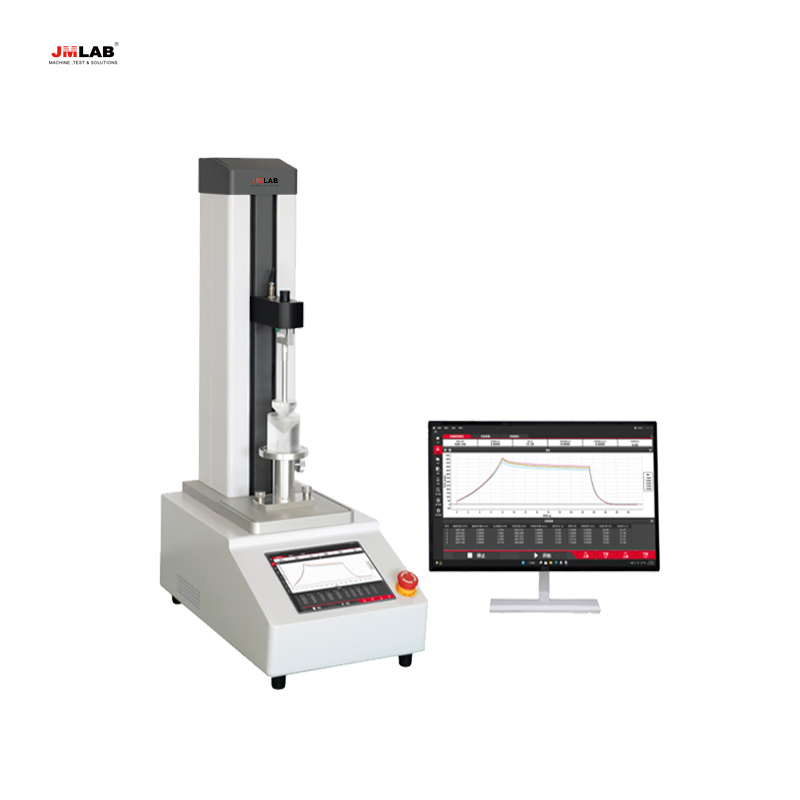

Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
1 / 5
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials
Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials

Texture Analyzer for Testing The Tensile Strength and Flexibility of Packaging Materials

Customization: Available
After-sales Service: Included
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
JMZG-17D
Max Diameter
<500mm
Mass Scope
<900kg
Type
Strength Testing Machine
Accuracy Grade
0.5
Control
Computer Control
Power Source
AC220V
Display
Digital
Product Description

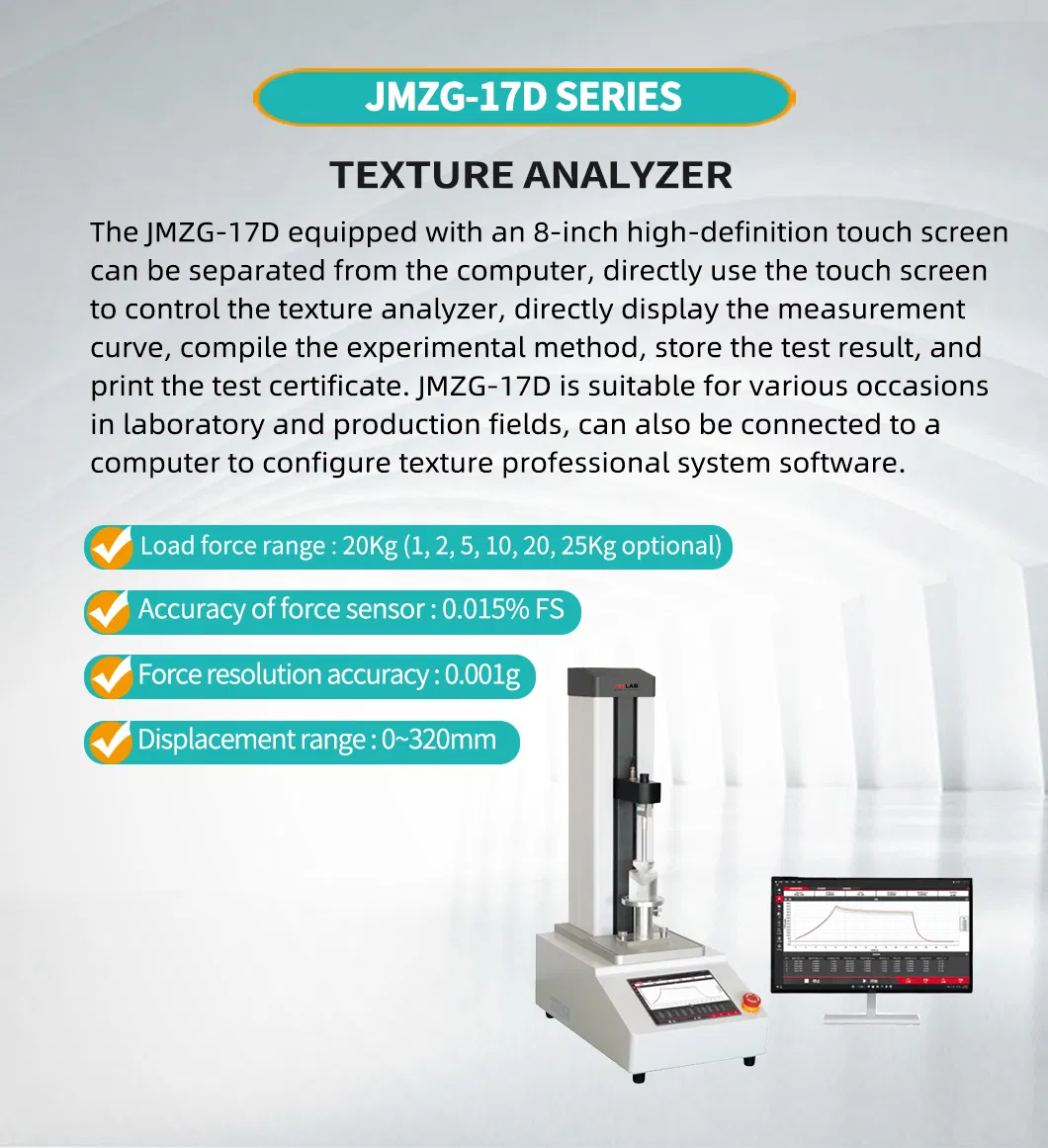

Texture Analyzer Overview

Overview: The JMZG-17D equipped with an 8-inch high-definition touch screen can be separated from the computer, directly use the touch screen to control the texture analyzer, directly display the measurement curve, compile the experimental method, store the test result, and print the test certificate. It is suitable for laboratory and production fields, providing richer parameter settings and professional data analysis.

Key Features
  • Embedded with an 8-inch 1024*768 high-definition touch screen.
  • Directly edit experimental methods and read/store test data without an external computer.
  • Suitable for research and development, quality control, monitoring on-site sampling, or teaching.
  • High-speed data acquisition and real-time measurement curve description.
Technical Specifications
Load force range20Kg (1, 2, 5, 10, 20, 25Kg optional)
Accuracy of force sensor0.015% FS
Force resolution accuracy0.001g
Displacement range0~320mm
Displacement analysis accuracy0.0001mm
Speed accuracy≤±0.1%
Dimensions550mm * 320mm * 830mm
WeightAbout 29Kg
Test Functions

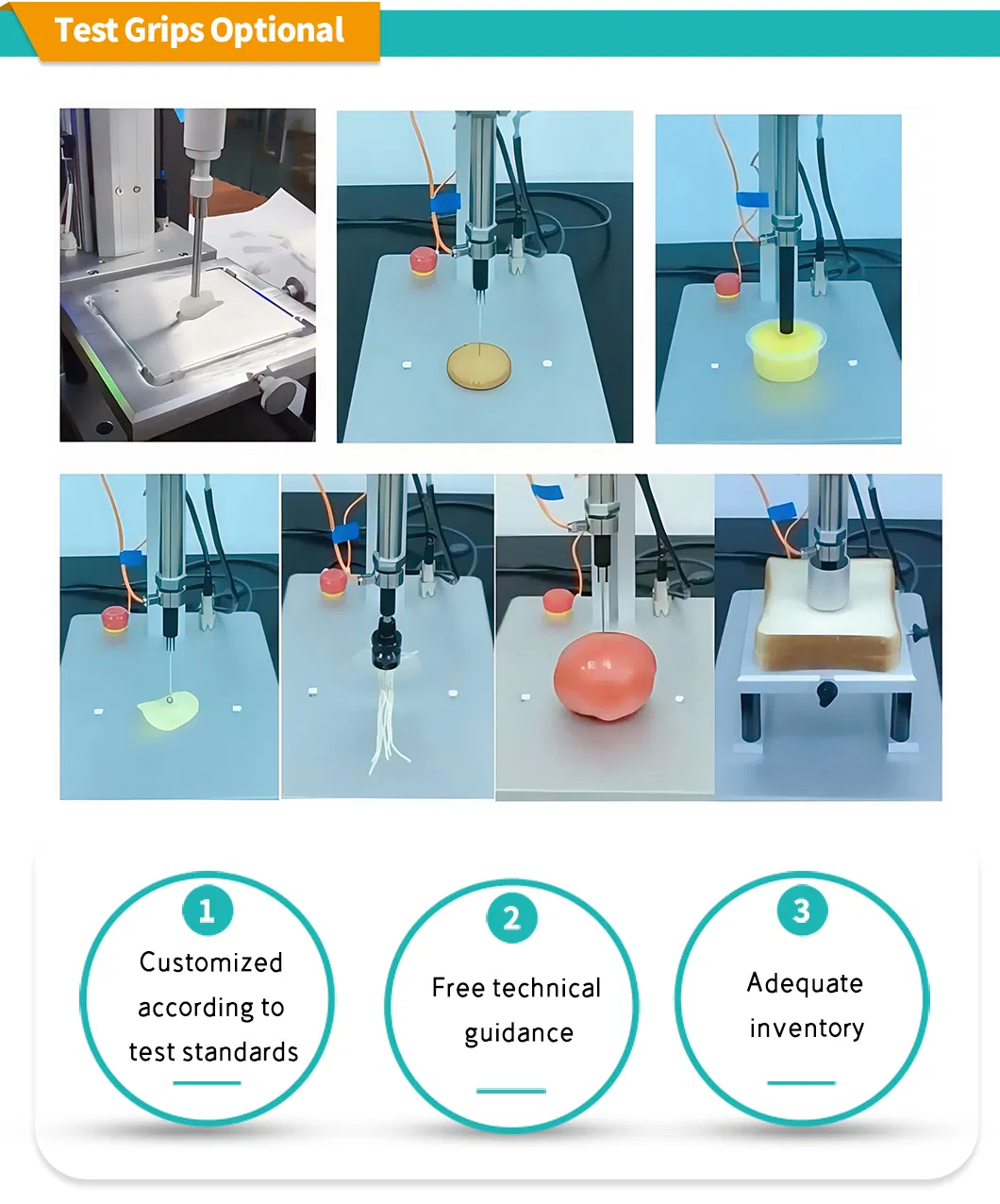

Test Standard Testing Modules
Gel strength / Single compression
Surimi gel / Carrageenan test
Meat tenderness / Cycle test
Relaxation / Creep performance
Full texture / Tensile test
Bend / Shear / Puncture test
Product Gallery

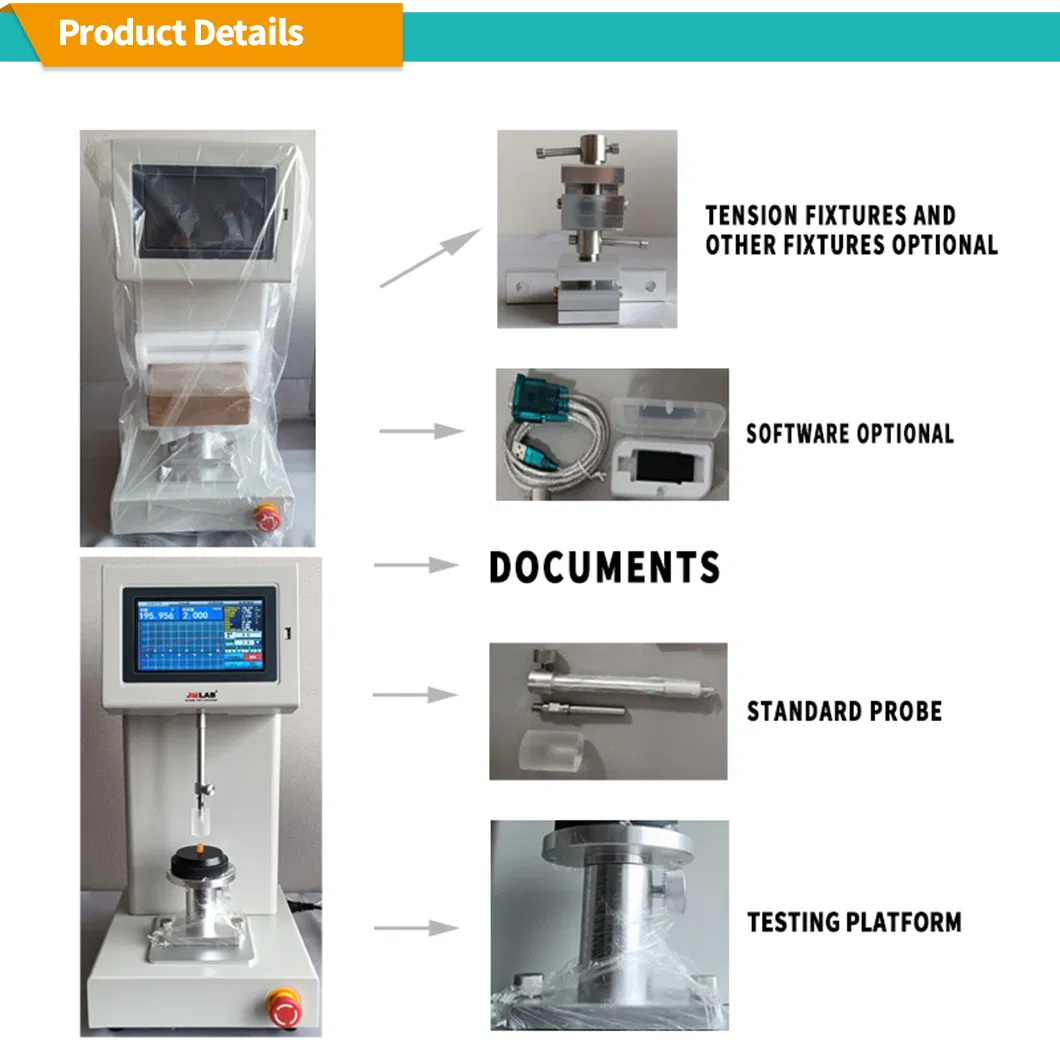

Detailed View 1 Certifications Packaging Test
Packaging & Delivery

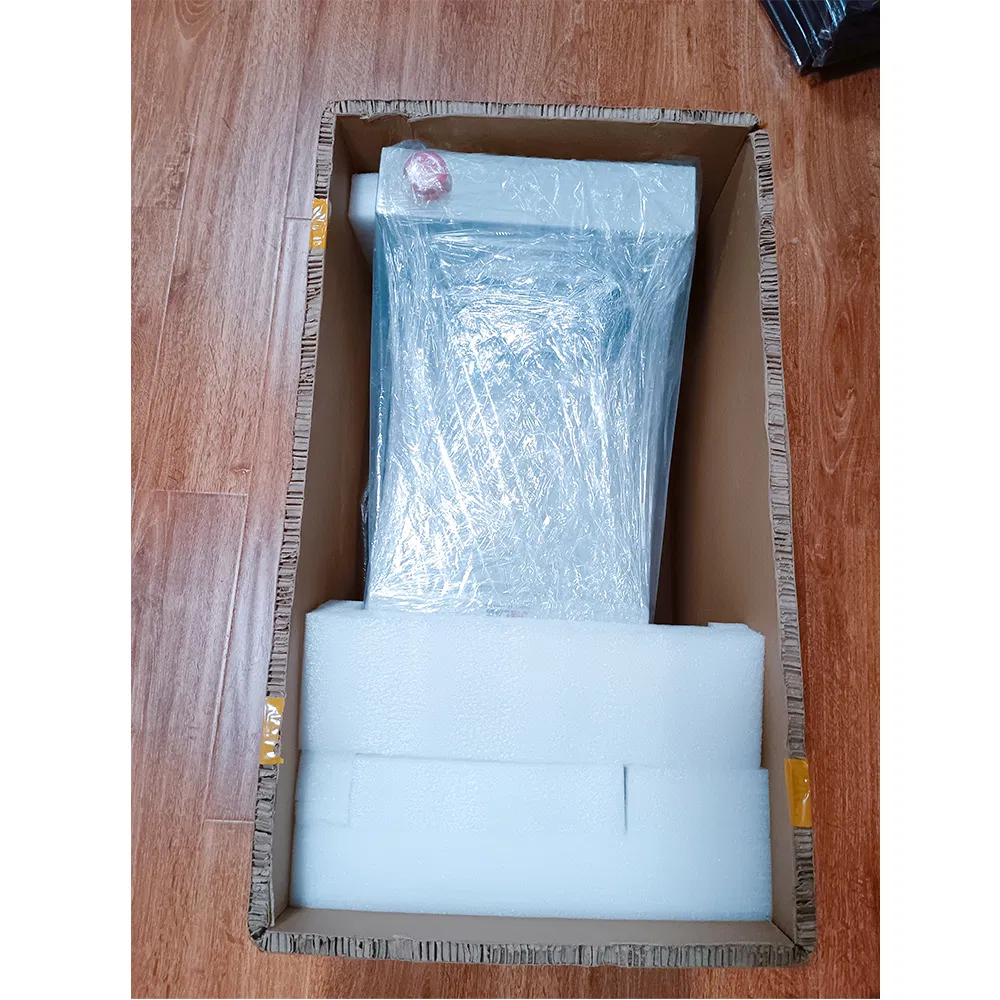

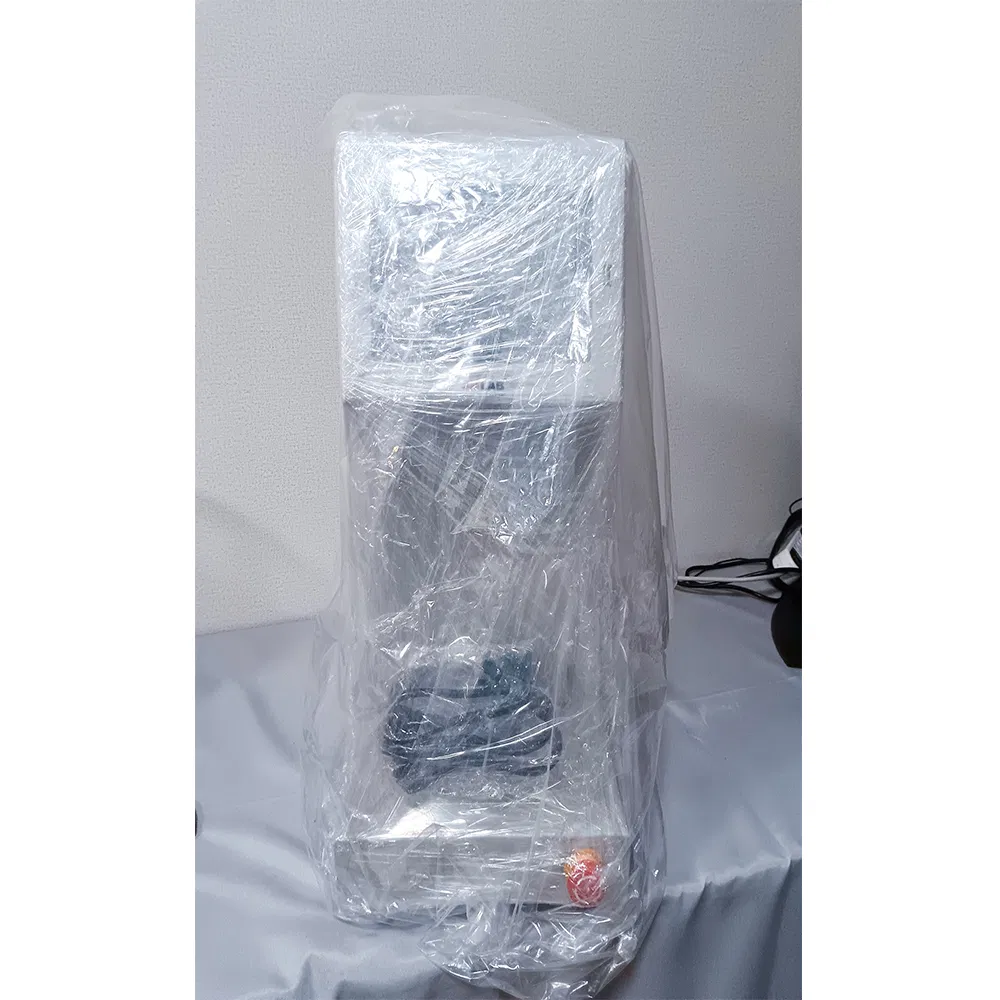

Package 1 Package 2 Shipping Details
Package Size
65.00cm * 42.00cm * 103.00cm
Gross Weight
54.000kg
Transport
Standard Export Wooden Box
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer of testing equipment including Universal Testing machines, Texture Analyzers, and Package Testers.
What is the warranty period?
Every machine has a 12-month warranty after shipment. We also provide free maintenance during this period.
What are your delivery terms?
Standard machines usually ship within 1-3 working days if in stock. For non-stock items, it takes 3-15 working days.
Do you offer customization or OEM services?
Yes, we offer both OEM and ODM services. We can customize machines according to your requirements and place your logo on them.
How is the equipment installed and used?
Most machines are shipped fully installed. We provide English operation manuals and video tutorials to help you get started quickly.
How do you guarantee product quality?
We perform a pre-production sample check before mass production and always conduct a final inspection before shipment.
Related Machines

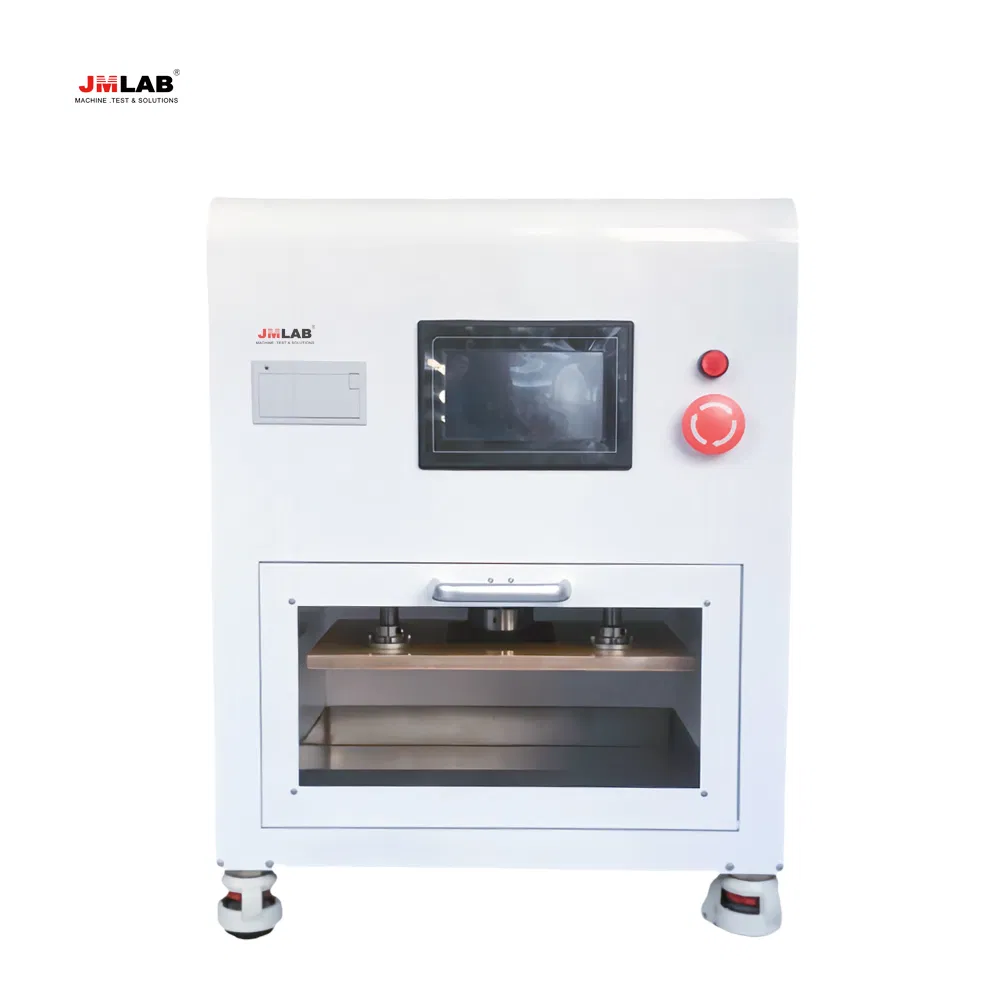

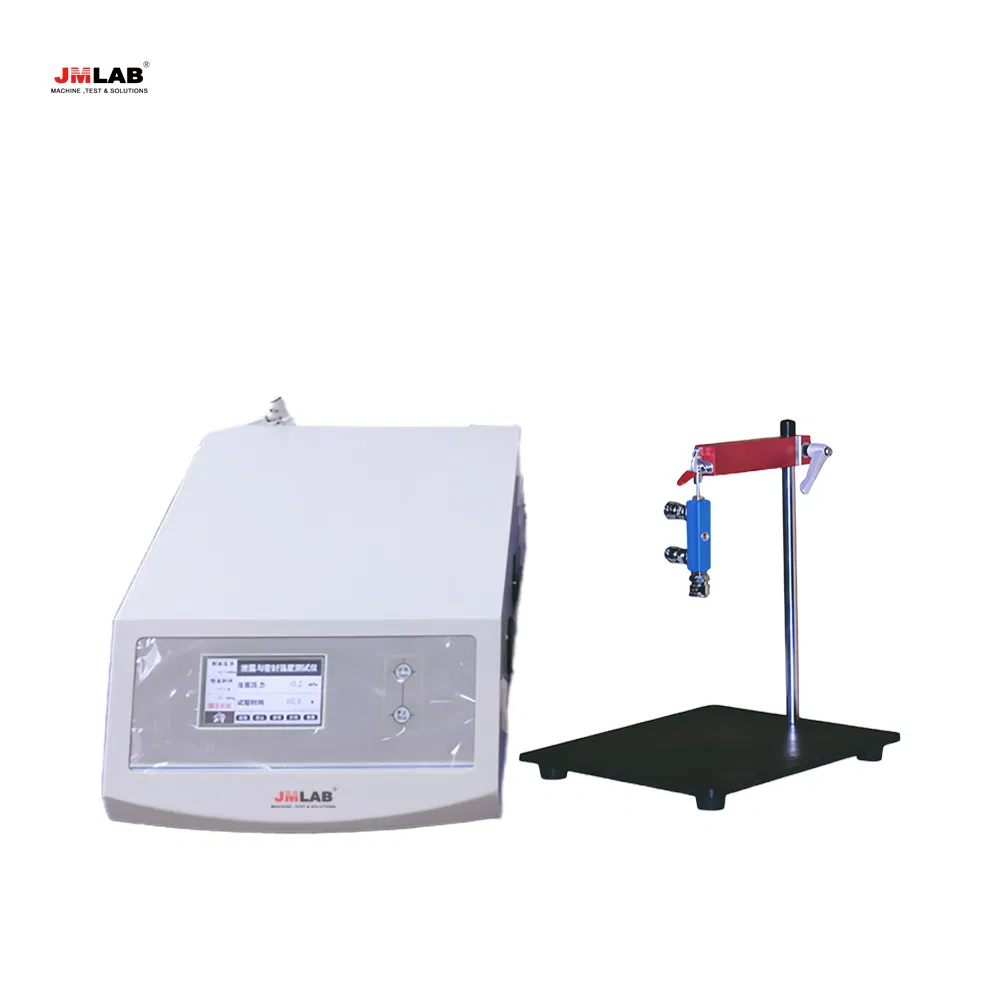

Leakage & Bursting Strength Tester Packaging Bags Compression Testing Instrument
